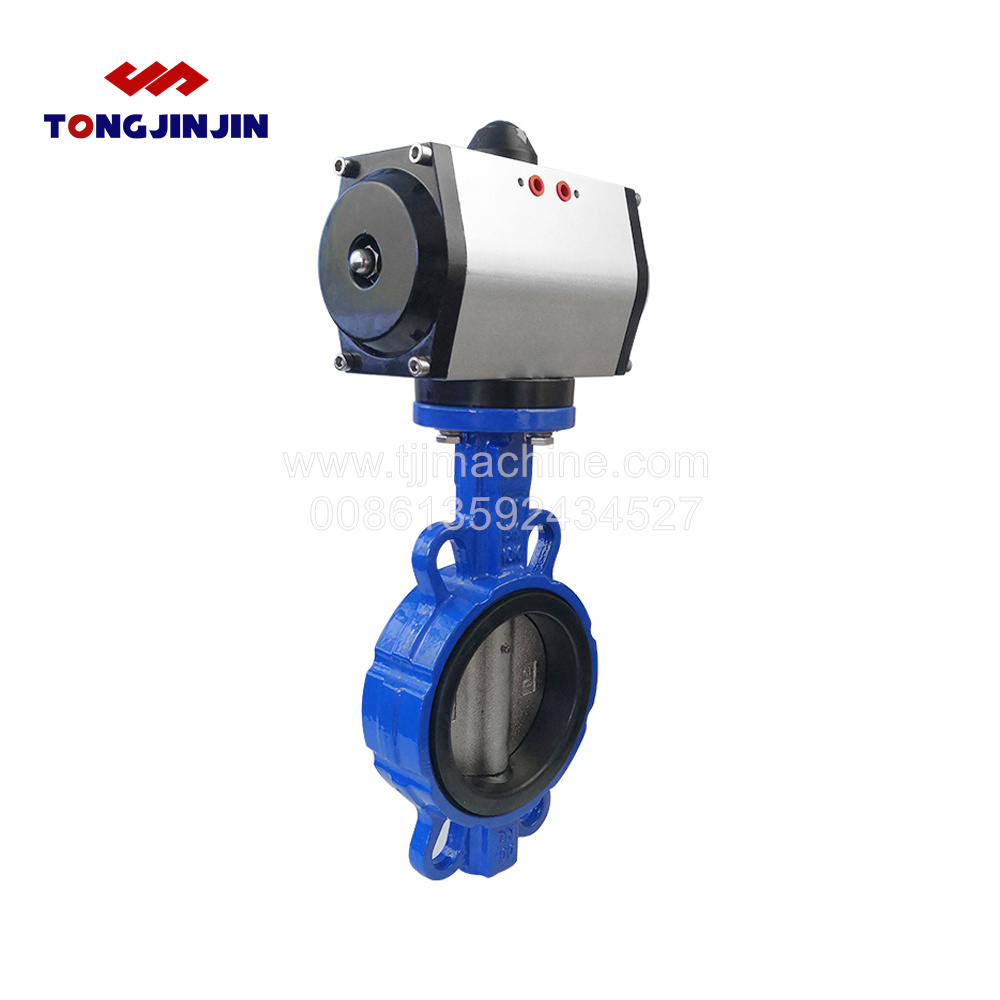

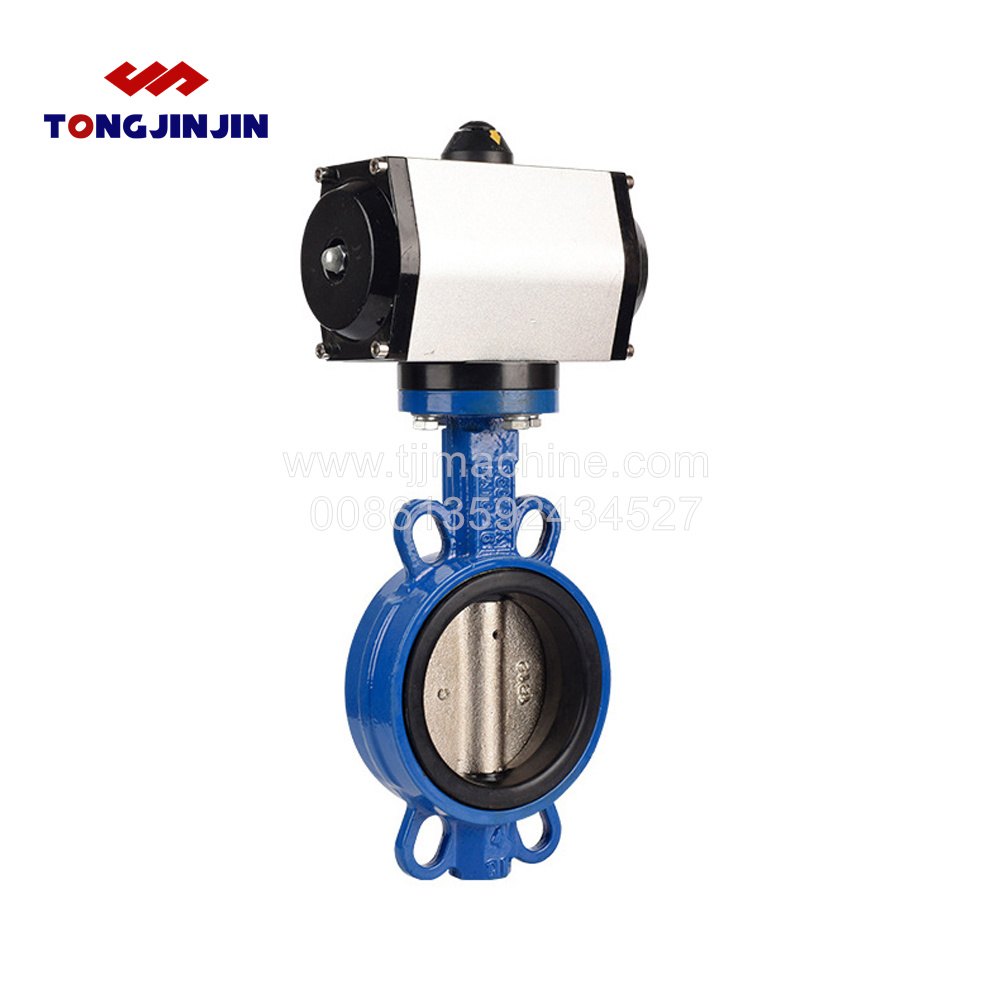

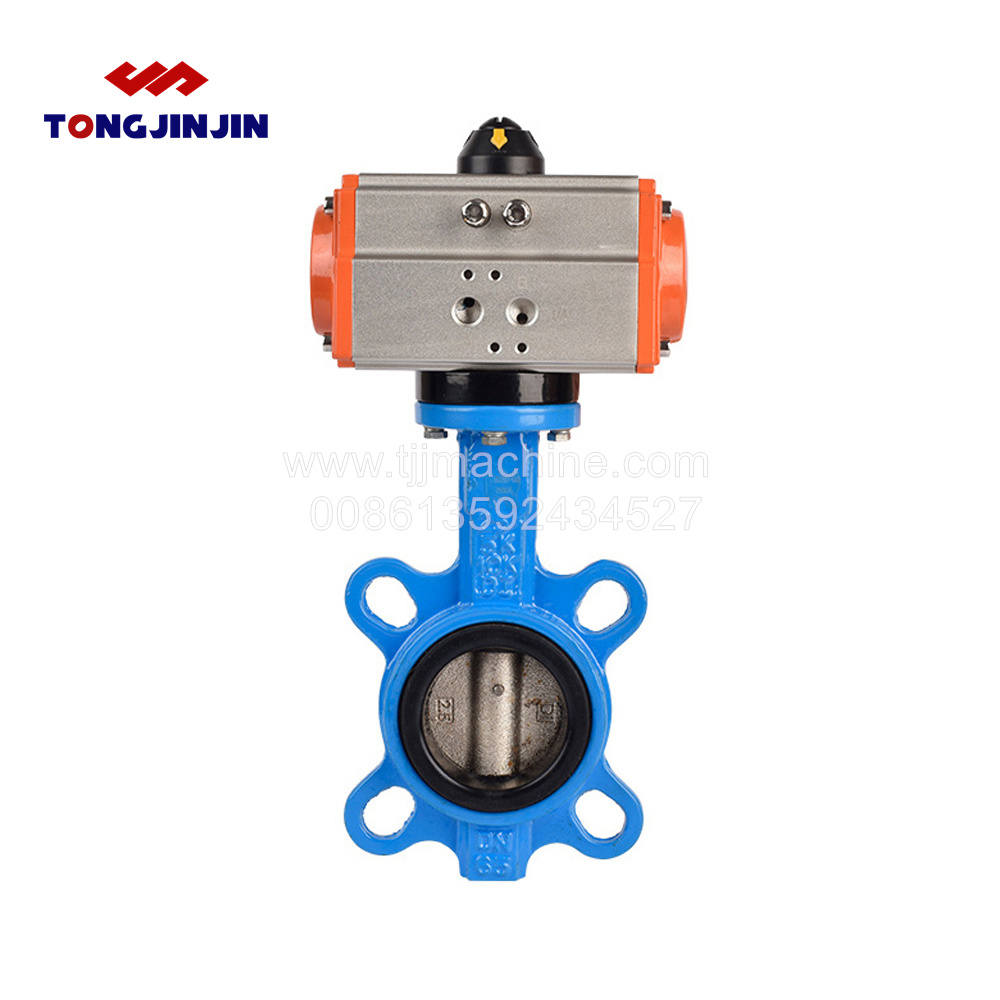

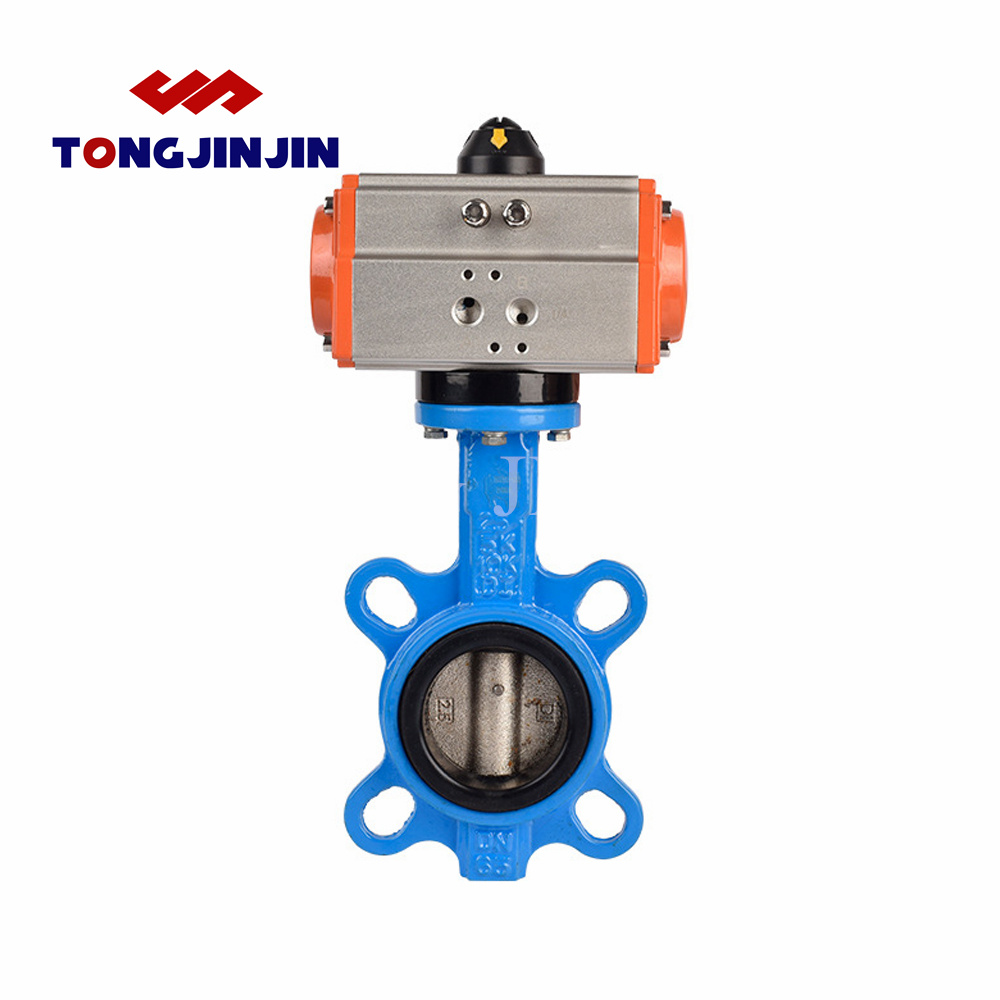

Pneumatic Wafer Butterfly Valve D671X-16

FOB Price:	15.00 - 80.00 USD/Set
Supply Ability:	300 Set(s) per Week
Shipping:	according to requirement. pallet, container, nude
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	nude packing

Quick Details

Brand Name: tongjinjin
Temperature of Media: Normal Temperature
Material: Casting
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: D671X-16
Port Size: 40-300mm
Media: Water
Power: Pneumatic
Structure: Butterfly
type: pneumatic wafer butterfly valve
valve plate material: cast iron
size: 40-300
actuator: GT/AT

Specifications

DESCRIPTION

the D671series has a cast iron body, cast iron and 304 S.S disc, EPDM seat and a spring return pneumatic actuator making them suited to a wide range of general water applications. these wafer butterfly valves will fit all standard flanges. Designed & manufactured in accordance with API609, inspected and tested in accordance with API598. Common applications include water trucks, irrigation and non corrosive industrial applications. Available options include; Limit Switch Box, Namur Solenoid Valve, Pneumatic Toggle, Speed Controllers, Silencers, Fittings and Tubing.

Model	Size (mm)	Actuator	Media Pressure	Media Temperature	Actuator Pressure
D671X-50-DA	50	DA50	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-65-DA	65	DA50	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-80-DA	80	DA63	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-100-DA	100	DA63	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-125-DA	125	DA75	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-150-DA	150	DA88	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-200-DA	200	DA115	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-250-DA	250	DA125	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
D671X-300-DA	300	DA145	Vacuum to 10 BAR	-10°C to 100°C	6 to 8 BAR
