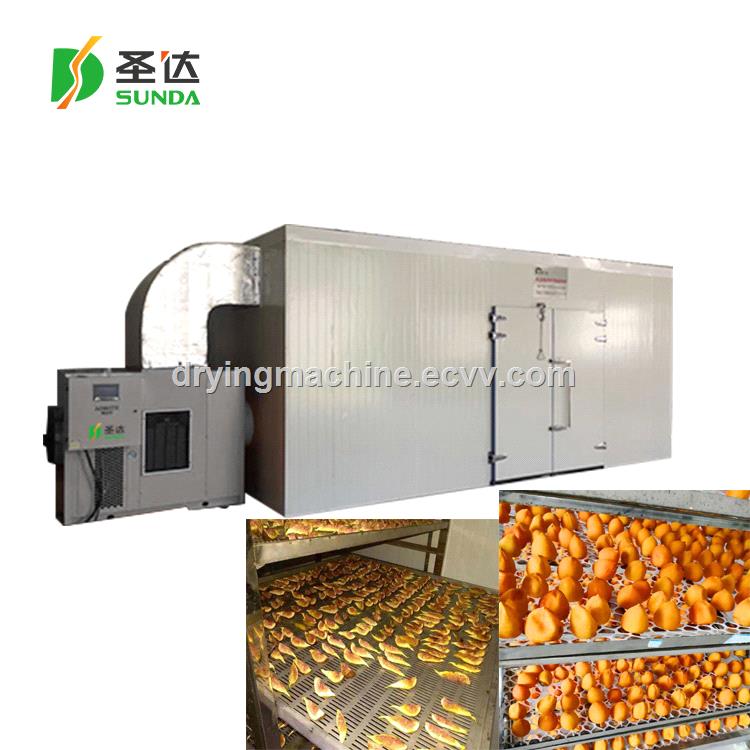

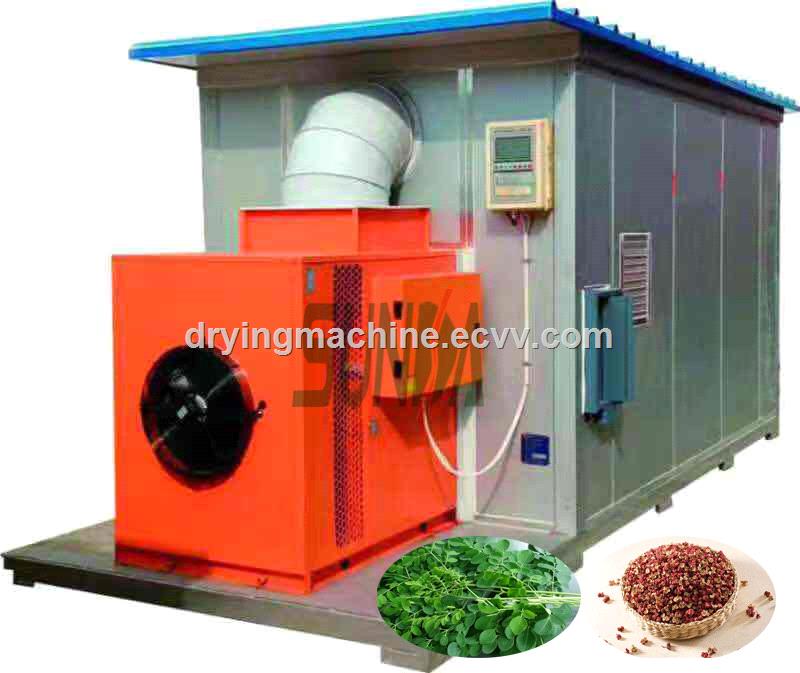

Hot Air Energy Food Mushroom Drying Machine

FOB Price: 10000.00 - 50000.00 USD/Set
Supply Ability: 20 Set(s) per Month
Shipping: FOB Qingdao by sea
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: China
Packaging Details: PE film coved/export wooden case / wooden pallet

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Warranty: 18months
  • Type: Dehydrator
  • Brand Name: Sunda
  • Condition: New
  • Certification: ISO,CE
  • Dimension(L*W*H): 8*2.8*2.6m
  • Weight: 1000KG
  • Power(W): 20kw
  • Voltage: 380v 50hz 5 wires
  • Model Number: SD-RB30P
  • Product name: hot air energy food mushroom drying machine

Specifications

Product Description

Working principle:

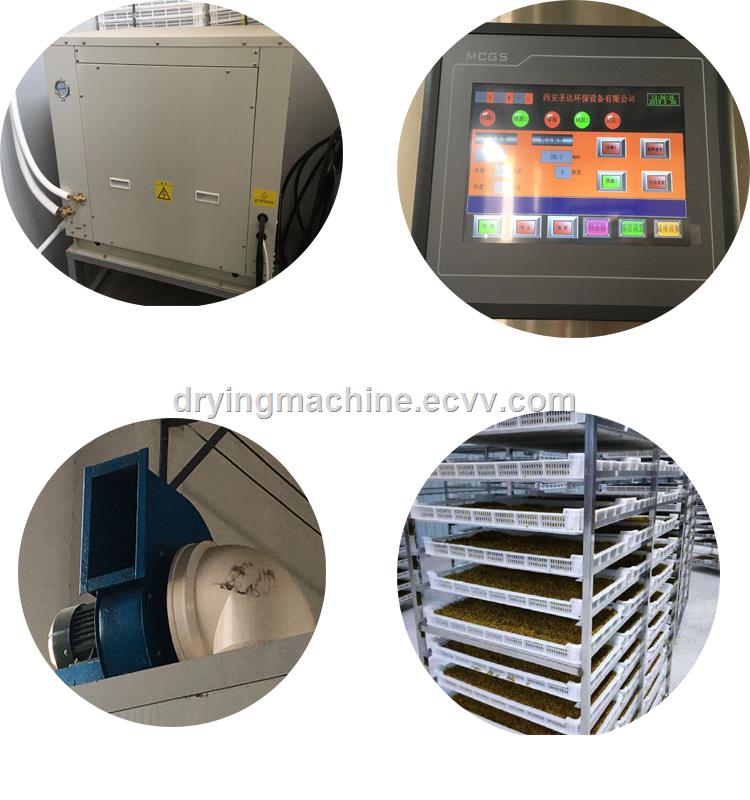

Heat Pump device is consists of compressor,electronic expansion vale,drying filter,four way valve,evaporator, casing condenser,fan and other major components.It adopts inverse Carnot principle, the compressor absorbs the low temperature and low press refrigerant gas, by the work of the refrigerant compressed into high temperature and high press air, the high temperature and high press air into the condenser exchange heat with air,condensed into a cryogenic liquid in the condenser and release a lot of heat.The heated material will absorbs the released heat energy and be forced its self moisture out though the how air circulation to achieve the purpose of drying the material.The condensed high temperature and low press liquid is throttling reduced by the expansion valve, the thermal of the surrounding air is absorbed by the action of the fan in evaporator to volatilize into the low press gas and is compressed into compressor, thus it is circulated worked continuously and the material is dried continuously.

System diagram:


Advantages of the machine:

Hot Air Heat Pump Dryers advantage:

1.No pollution and lower energy consumption

Low temperature closed cycle drying,reducing energy consumption, avoiding environmental and human pollution,ensuring the quality of the materials being dried. No waste gas emissions to the environment caused.

2. Keep oringalnutritionscontent

Precise temperature and humidity control, more effective than traditional drying equipment to protect the color, aroma, taste, shape and effective ingredients of materials

3.Wide range of applications

the air temperature of the drying chamber is between 20 C and 80C, which can meet the high quality drying requirements of most thermal sensitive materials

4. Automatic control: Temperature and Moisture
According to the drying craft requirements, the drying tempreture and moisture can be adjusted. and the drying temperature can be seted in different time periods.

5.Easy installation

Easy installation, integrated drying, dehumidification, installation, demolition is convenient and small installation area.It can be installed inside or outuside.

6.Low cost
Compared with other low-temperature drying devices(such as microwave drying, vacuum drying and freeze-drying), the hot air drying machine is obviously more economic because of its small initial investment and low operating cost.


hot air energy food mushroom drying machine
