Hot Air Energy Food Fruit Noodles Drying Machine

FOB Price: 10000.00 - 50000.00 USD/Set
Supply Ability: 20 Set(s) per Month
Shipping: FOB Qingdao by sea
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shaanxi in China
Packaging Details: The fruit dryer machine is the ideal drying equipment for drying all kinds of fruit. The dryer machine are used for drying the high moisture material to a suitable moisture, so that the material can be reached a high efficient use value.

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Warranty: 18months
  • Type: Dehydrator
  • Brand Name: Sunda
  • Condition: New
  • Certification: ISO,CE
  • Dimension(L*W*H): 8*2.8*2.6m
  • Weight: 1000KG
  • Power(W): 20kw
  • Voltage: 380v 50hz 5 wires
  • Model Number: SD-RB30P
  • Product name: hot air energy food fruit noodles drying machine
  • application: food cure processing
  • Heating way: heat pump
  • Control Mode: PLC system
  • Material: SS304
  • Package: wooden case
  • Delivery time: 20days
  • payment: T/T,L/C,paypal
  • capacity: 500-2000kg
  • feature: energy save

Specifications

High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator



the fruit dryer machine is the ideal drying equipment for drying all kinds of fruit. the dryer machine are used for drying the high moisture material to a suitable moisture, so that the material can be reached a high efficient use value.



1. Fruit Dryer Machine Application

the dryer machine can be used to dry variety of fruits such as mango, strawberry, pineapple, plum, apricot, apple, banana, etc.

 High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator

2. Fruit Dryer Machine Structure
  • 1.Polyurethane insulation board (10cm), as the frame of fruit dryer machine.
  • 2.Heat pump, provide the heat to the drying chamber.
  • 3.Circulating fan: circulating hot air in the drying room.
  • 4.Trolley and tray, loading the material in to tray, enter into drying process in the next.
  • High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator

3. Fruit Dryer Machine Working Principle:


the working principle of heat pump drying machine: untilize refrigerant compression through the compressor to form the high temperature and high pressure gas.the gas went into the condenser to release heat, the heat will be sent into the chamber by the circulating fan, to heat the air in the chamber(the maximum air temperature up to 75 ). Then the air temperature rises, the moisture in the drying material will gradually evaporate, and then exhaust of the moisture by the fresh air dehumidification system,to achieve the drying effect.



the heat cycle: Fresh AirCompressorCondenserthrottleRevaporator

High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator



4. Fruit dryer machine features
  • 1.the drying parameters are easy to control and wide adjustable range, the temperature adjustment range is -20 to 100C (with auxiliary heating device), and the relative humidity adjustment range is 15% to 80%.
  • 2. Easy to operation, the heat recovery efficiency is as high as 60% or more.
  • 3.Efficient heat recovery, the heat recovery efficiency is as high as 60% or more.

High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator
1. Adopt computerized electronic digital control, easy to controll.

2. Heating is by compulsory circulating ventilation, temperature raising is fast and spread even.

3. Provide the P.I.D. Control system, double sided overheating protection, safe & reliable.

4. Easy to set temperature, easier to operate.



5. Fruit Drying: coconut drying case
According to the coconut feature, Coconuts are known for their versatility of uses, ranging from food to cosmetics, The inner flesh of the mature seed forms a regular part of the diets of many people in the tropics and subtropics.
the product of the coconut is coconut oil. It is commonly used in cooking, especially for frying. It can be used in liquid form as would other vegetable oils, or in solid form as would butter or lard.
Before making coconut oil, you have to dry the coconut copra, here we recommend one kind of heat pump dryer which can be used for drying coconut.

the technology of coconut drying
1. Setting temperature:45. and humidity:30%,and drying time is 2h(this stage is pre-heating)
2. Setting temperature:53. and humidity:15%,and drying time is 4h(this stage is exhausted phase)
3. Setting temperature:58. and humidity:10%,and drying time is 2h
4. Setting temperature:65. and humidity:6%,till the material moisture reach the reach your requirements
 High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator







6. Widely Application

Food, Fruit, Vegetable, Seafood, Meat Medicine herb, Flower

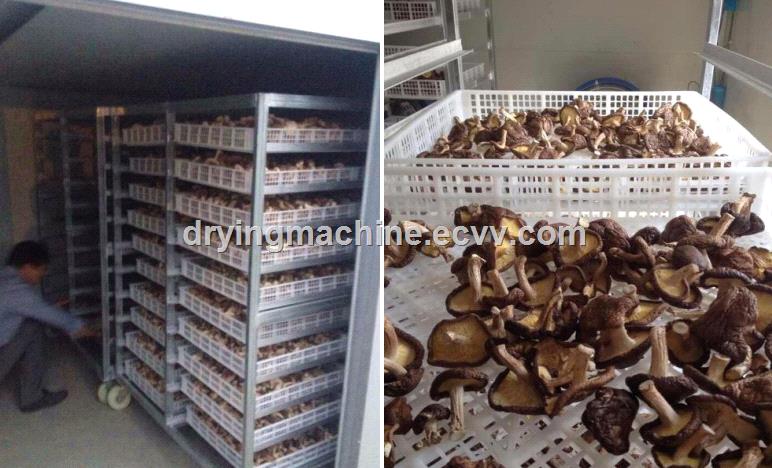

Fruit series: Boletus, Bamboo Sun, Matsutake, Ganoderma lucidum, Hericium erinaceus, Auricularia auricula, Agaricus blazei, Pleurotus eryngii, Pleurotus eryngii, Flammulina velutipes, Pleurotus comatus, Pleurotus ostreatus, Lentinus edodes and so on can be dried by heat pump dryer, in order to achieve the purpose of energy saving, environmental protection and intelligent operation for drying high-quality dried mushrooms.

 High Capacity Fruit Dryer Coconut Drying Machine Fruit Dehydrator


6. Our Service

1) Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* Shippment assistant.

* Visting our Factory.



 2) after-Sales Service

* Training how to instal the machine, training how to use the machine.

* Video-online technology support.

* Spare parts support.

* Engineers available to service machinery overseas.



7. Package and Delivery

1) Delivery time: about 25 workday

2) Package: Outside Package: wooden box

                    Inner Package: PE film
                    If you have specific demand with delivery, please be freely to tell us
