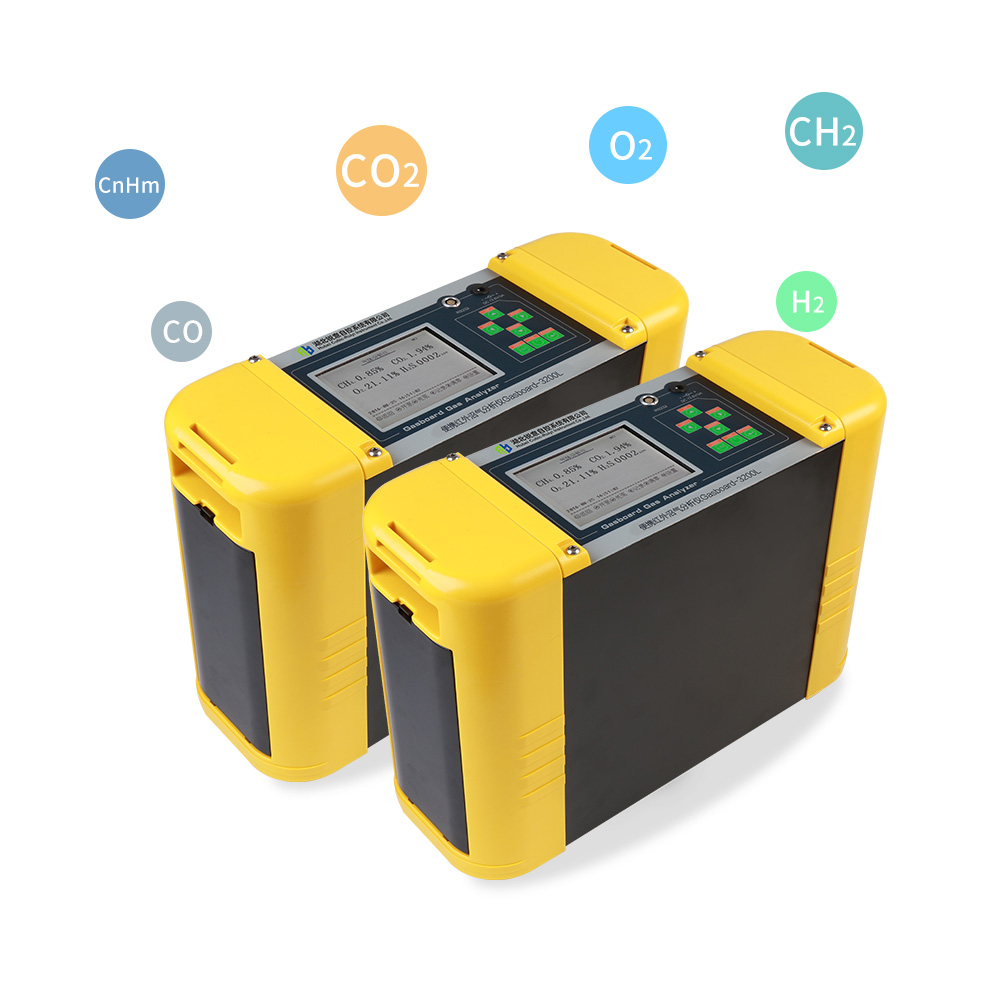

Portable NDIR Online Syngas Analyzer Gasboard-3100P Measure CO, CO2, CH4, H2, O2, CnHm, C2H2, C2H4

Specifications

Introduction

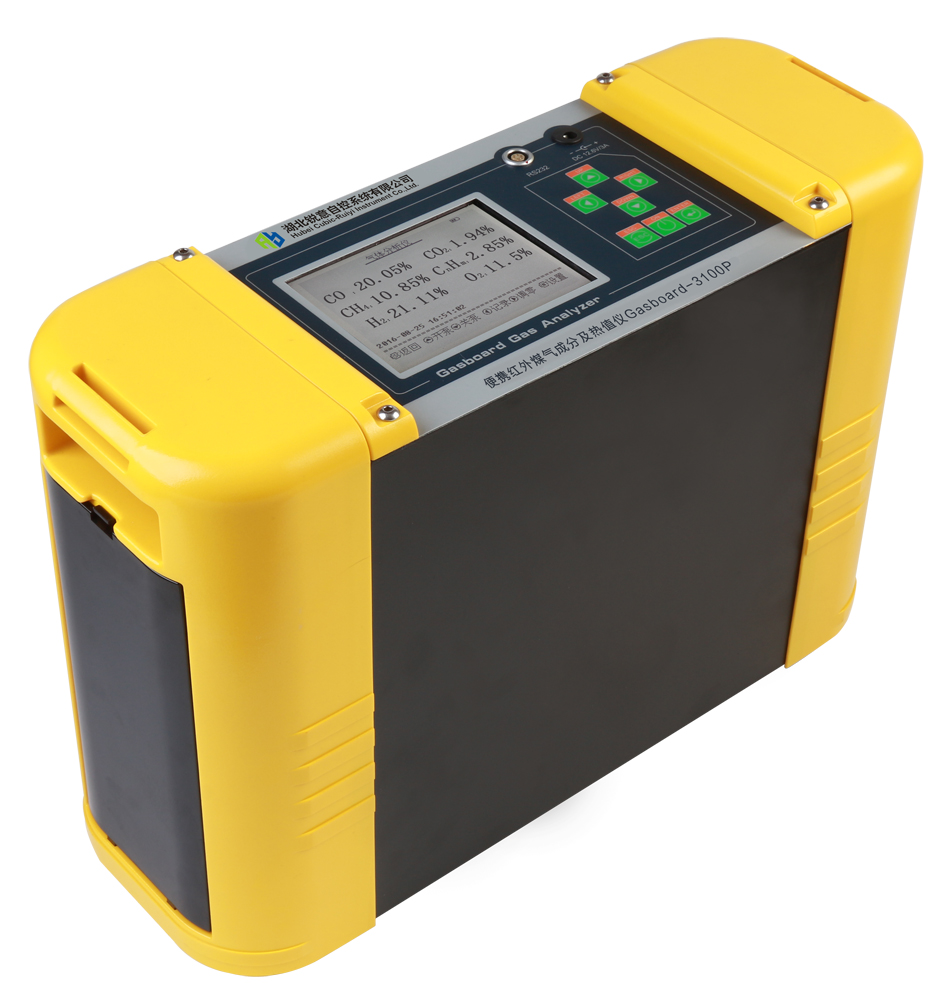

Portable Infrared Syngas AnalyzerGasboard 3100P is the portable version of Gasboard-3100. with its small size, high accuracy, short response time, simple operation, rechargeable lithium battery power supply system, Gasboard-3100P is an ideal measurement solution for direct sampling from pipe at industrial site and gas-bag sampling analysis in laboratory, etc.
Syngas analysis technology from Cubic-Ruiyi instrument is protected by Patent Cooperation Treaty (PCT).
Gasboard syngas series analysis instruments can be used for measurement of the concentration of up to 8 gases such as CO, CO2, H2, O2, CH4, CnHm, C2H2 and C2H4 simultaneously, and calculate the gas heating value (caloric value) and N2 balance automatically. It is the best tool to help you:

• to check whether the gas is still being produced to decide the feedstock cycle and the best ratio.
• to check the quality of the gas being produced prior to use in some industrial process.
• to check the quality of the gas and optimize the gasification technical process.

• Modular sensor design ensures easy operation and maintenance.
• Compact and robust design with light weight, convenient for different sites usage.
• with LCD display to indicate all data index and tactile keypad easy for operation.
• Equipped with sample gas flow meter and needle valve to regulate the inlet gas flow
• with constant temperature enclosure for NDIR and TCD sensors to avoid influence by temperature fluctuation and improve the measurement accuracy.
• with function of auto-zeroing, efficiently decrease the calibration frequency.
• in-built sampling pump for low pressure application.
• External safety filter to protect analyzer from impurities
• Internal rechargeable Li-ion battery for over 4hrs full function operation
• Internal data logger for up to 1500 sets of data and RS232 COM port for data output.
• New generation modular syngas analyzer has equipped with a Bluetooth module. Assist with a smartphone APP software, it can realize remote control, data download, and remote online diagnosis function in the near future.

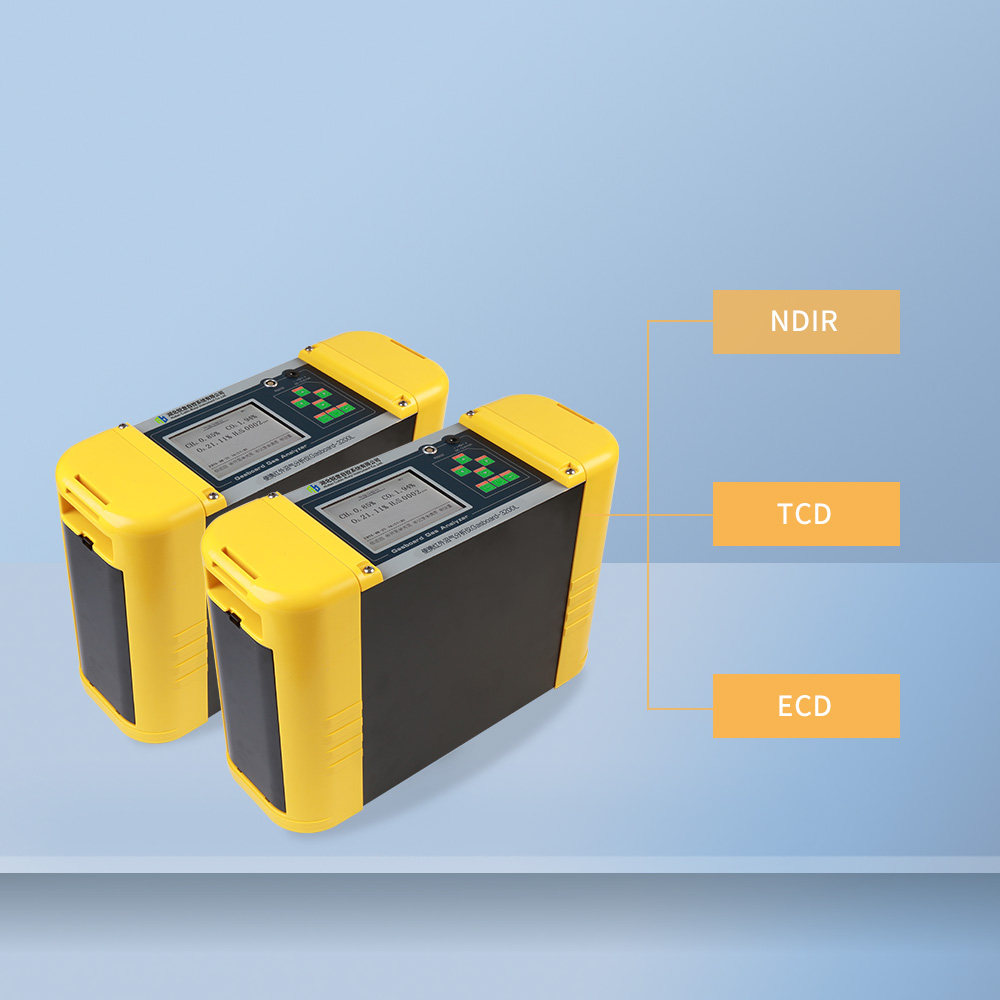

• Adopt international advanced NDIR and TCD gas analysis technology.
• Can measure the concentration of CO, CO2, CH4, H2, O2, CnHm simultaneously.
• CnHm gas has no interference with CH4 measuring result.
• Precisely measure CO content in high concentration CO2
• H2 reading by patented Thermal Conductivity Detecting technology, with compensation for the interference effects of the CO, CO2,CH4 measured.
• No effect from flow fluctuation on H2 reading
• Online Heating Value calculation in real time, freely switchable between MJ / m3 or kcal / m3, and between HHV or LHV.

Gasboard syngas series analysis instruments is widely used in various applications from lab research scale to industrial scale, including energy production field, steel making processes, chemical conversion and oil & gas explore applications.
Energy production:

• Biomass or coal gasification /pyrolysis
• Waste to Energy
• Plasma gasification

• Blast furnace
• Converter
• Coking
• Direct iron ore smelting reduction processes
• Heat treatment

• Hydrogen,
• Methanol,
• Ammonia
• and other chemicals

• Natural Gas
• Coal Bed Gas
• Biomethane
• Mud logging
