Home >Products Catalog > Flue Gas Analyzer > Portable Infrared Flue Gas Analyzer Gasboard 3800Plus Measure SO2, NO, CO, CO2 & O2

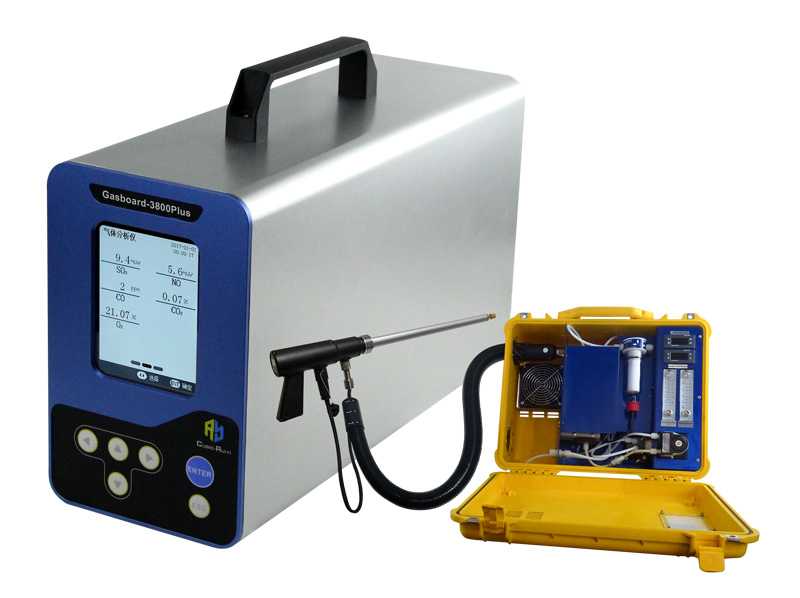

Portable Infrared Flue Gas Analyzer Gasboard 3800Plus Measure SO2, NO, CO, CO2 & O2

FOB Price:	1.00 - 9999.00 USD/Cubic Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Cubic-Ruiyi
Weight: 7.2kgs
Sampling Method: N/A
Size: 275mm*470mm*175mm
Alarm type: N/A
Model Number: Gasboard 3800Plus

Specifications

Introduction
It is new portable type to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO are measured by unique dual beam micro-flow infrared sensors and O2 is measured by long life time electrochemical sensor, with optional gas temperature, velocity, combustion efficiency, air coefficient, etc.

Features

Gas analyzer features

Unique dual beam NDIR micro-flow technology effectively solves the moisture interference to ensure intensity ratio of measurement signal and reference signal is not affected by the ambient temperature and pressure. Its stable performance is very suitable for low-concentration flue gas component monitoring.
Non-dispersive NDIR and long life time electrochemical technology to ensure no cross-interference between the measurement gases, its high measurement accuracy and sensor life is longer.
It is equipped with integrated sampling probe, heating tube, and imported gas conditioning device removes dust and moisture.
Automatic calculation of air coefficient and combustion efficiency.
Automatic storage of measurement data.
Dot matrix printer and USB communication interface to print real-time and historical data, or directly export the stored data to the USB flash drive.

Gas conditioning device features

Stainless steel heating type sampling probe, heating temperature up to 200℃.
the probe is equipped with SIC filter element for quick replacement.
Sampling probes are available in different lengths (1 or 2 meters) to suit various industrial applications.
Heating tube has self-controlled temperature function to keep high temperature of 180℃, it can prevent SO2 gas condensation to loss value.
Original imported diaphragm pump, flow rate ≤60L/h.
Gas-water separator to separate liquid water in the sample gas.
Original Peltier cooler removes gaseous water from sample gas.
Equipped with corrosion-resistant and pressure-resistant heat exchanger and independent digital PID controller.
after treating, sample gas dew point:≤4℃, dust accuracy: 0.1μm.

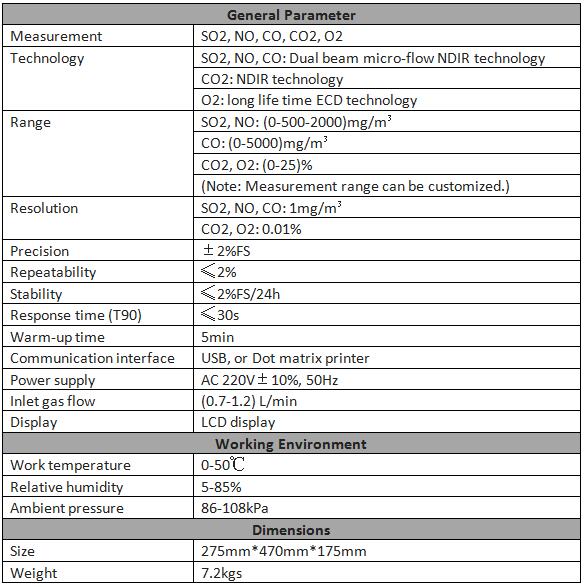

Specifications

Portable Infrared Flue Gas Analyzer Gasboard 3800Plus

Applications
Flue gas desulfurization and denitrification system monitoring, industrial chimney and other pollution source emissions monitoring, coal-fired boiler energy-saving monitoring, energy efficiency testing and pollution emission monitoring, university and science research project for flue gas composition monitoring.
