Auotmatic Pet Bottle Unscrambler Bottle Orienter Loading Machine for Beverage Filling Production Line

FOB Price:	18000.00 - 23000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	film wrapped +iorn pallet, or wooden box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): Dia 2400 x 2300mm
Automatic Grade: Automatic
Type: bottle loader
Condition: New
Warranty: 1 year
Certification: CE
Weight: 2000kg
Power(W): 3Kw
Voltage: 220V/380V
Model Number: YY-LPJ2400
Brand Name: Yingyi
Usage: Beverage
product name: bottle unscrambler
Material: SS304 stainless steel
Function: Loading bottle to filling line
Speed: 8000-3000bph
Keyword: bottle loader
Warrenty: 1 year
Power: 220V/380V
Advantage: high speed high accuracy
Other name: bottle orienter

Specifications

1.Product description:
LPJ serial full-automatic bottle unscrambler is the support equipment for the soft beverage filling equipment,
Applicable for the orderly arrangement of messy bottles and the delivery of them to production line.
According to the user requirements, the bottle types can be flexibly altered, convenient and rapid.
It adopts the structure of innovative push-and-hold bottle unscrambler, maximally reducing wearing of the bottle body.
the frame is made of excellent stainless steels; and other parts, non-toxic and endurable materials.
the adopted key parts of the electric and pneumatic systems are famous brands.
the whole process is controlled by PLC, so the machine has a low fault rate but a high reliability.

2. Product parameters:

Model		YY-LPJ1800	YY-LPJ2000
Product speed	(b/h)	8000	12000
Power	(kw)	3	3
Voltage	(v)	220	220
Suitable for Bottle diameter	(mm)	28-125	28-125
Dimension	(mm)	1820x1800H	2000x1800H
Weight	(kg)	300	350

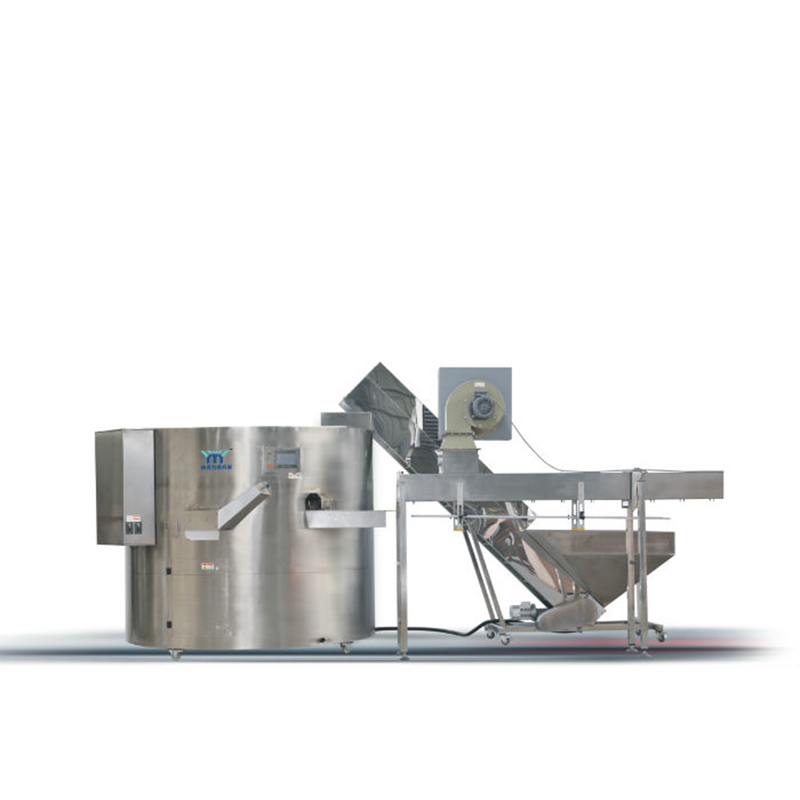

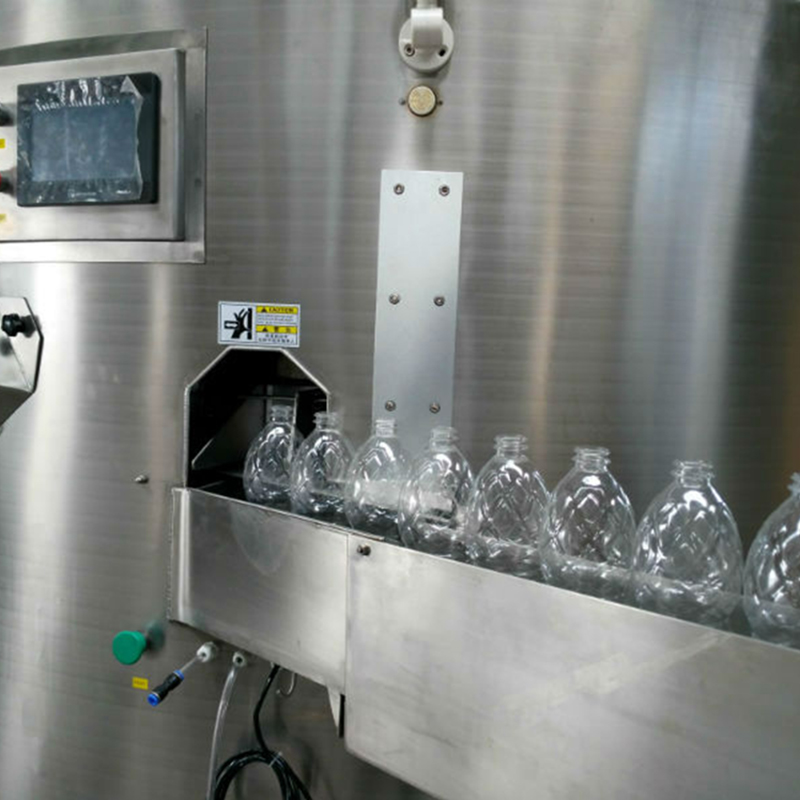

3.Product Images:
