Tianjin Tanghai Dongyang Valve Co., Ltd.
China Manufacturer with main products: Butterfly Valve, Check Valve, Gate Valve, Globe Valve, Ball Valve |

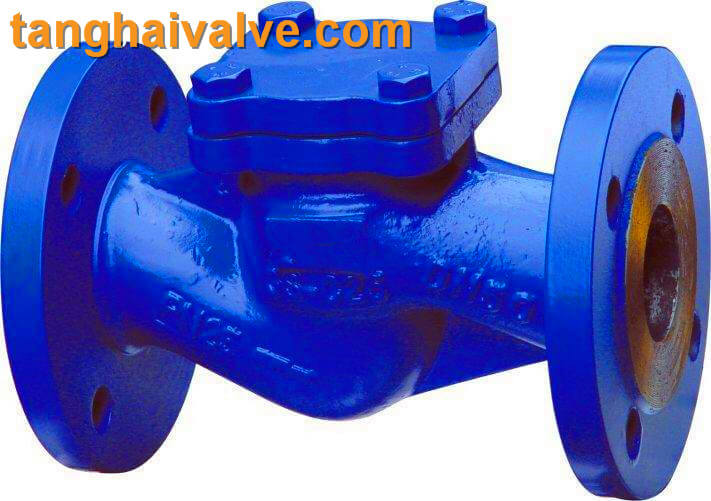

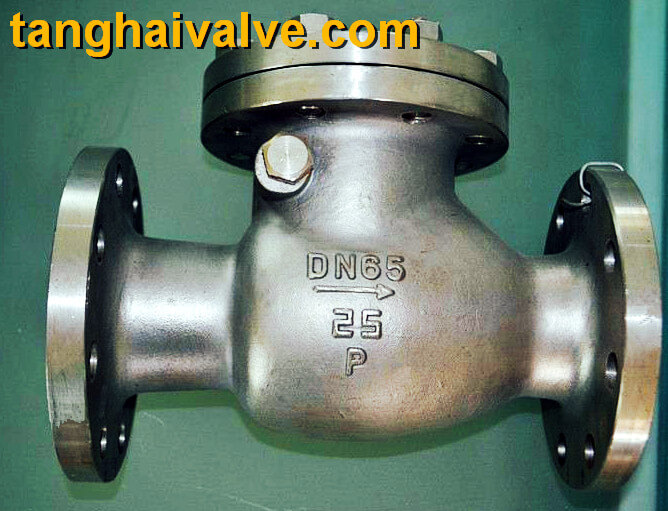

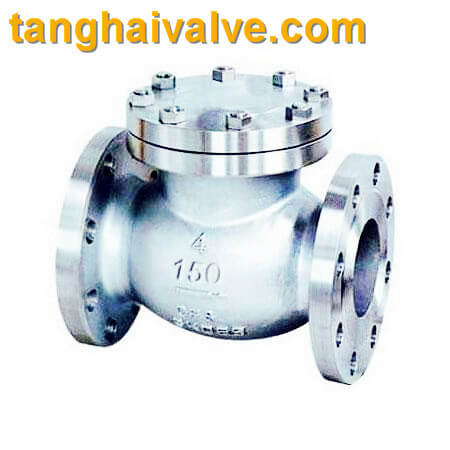

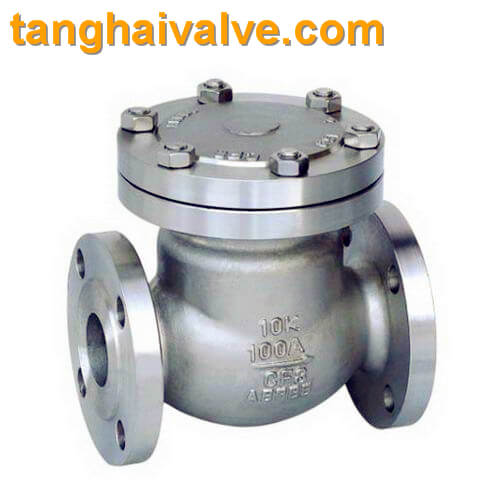

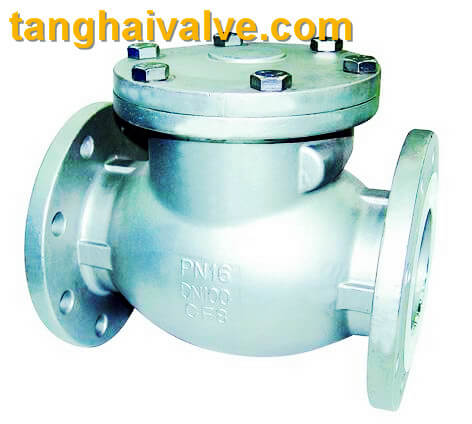

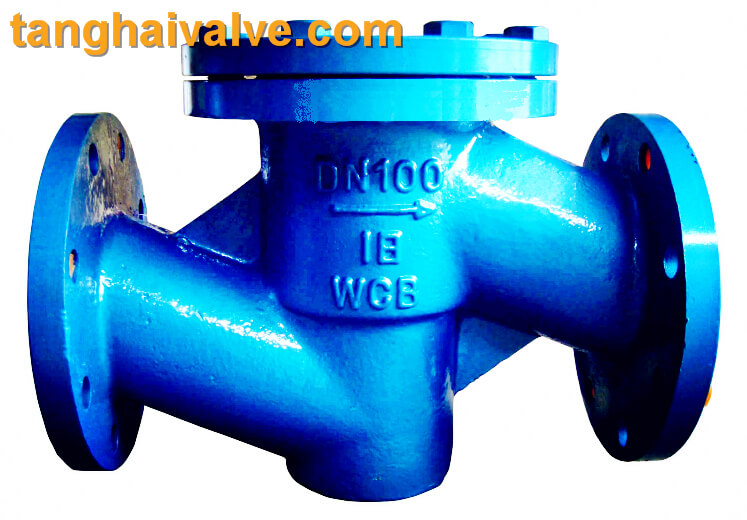

Lift Swing Check Valve (TH-CKV-LTS)
| FOB Price: | 30.00 - 30000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Month |
| Shipping: | FOB TIANJIN PORT |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | plywood case |
Quick Details
- Brand Name: THV
- Temperature of Media: Normal Temperature
- Material: Stainless Steel
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Media: Water
- Structure: Check
Specifications
Area of application Water supply and drainage, water treatment, fire-fighting and other systems Data sheet of Lifting check valve:
| TYPE: | Wafer, double disc |
|---|---|
| SIZE & CONNECTIONS: | DN50 to D600 |
| MEDIUM: | Waste water, Water, Seawater, Air, Inert Gas, Oil. |
| MATERIALS: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless Steel / Alu Bronze |
| PRESSURE RATING: | PN10, PN16 |
| TEMPERATURE: | -30°C to 200°C |
| SEAT/LINING: | Replaceable Liner / Bonded Liner NBR/EPDM/VITON |
| CERTIFICATES & APPROVALS: | DNV-GL, Lloyds, DNV, ABS, BV Type Approval 3.1 & 3.2 Cert (on request) |
Standards
- DIN3202 F1,
- BS EN1092 PN16
- BS5153 (BS EN 558-1 Series 10)
Material of Lift swing check valve Parts
| PART NAME | Material |
|---|---|
| BODY | Cast Iron; Ductile Iron; Stainless Steel; Carbon steel |
| DISC / PLATE | Stainless Steel; Carbon steel; Bronze |
| SHAFT / STEM | Stainless Steel Monel; Stainless Steel Inconel |
| SEAT / LINING | NBR/EPDM/VITON |
| BOLTS | Carbon steel |
| NUTS | Stainless steel |
Lift swing check valve features
- Easy maintenance, long lifetime
- Simple & economical
- Low cracking pressure
- Low pressure drop
- Quick and sensitive switching
- Good sealing performance
