| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Knife Card+Clapboard+Carton |
Quick Details
- Connection: Plug In
- Brand Name: JNORTY
- WARRANTY: 1 year
- Color: Black
- Model Number: JDTA06E-120050
- Output Voltage range:: 3-15V
- Output Current range:: 0.1-1.2A
- Output Power:: 6W max
Specifications
Product Parameter:
6W EU AC Plug Switching Power Supply
Specification Parameter:
1,Input condition:
Rated input voltage: 100V-240V AC
Input voltage range: 90V-264V AC
Rated input frequency: 50/60Hz +/-3Hz
2,Output Characteristics:
Rated output power: 6W Max
Output voltage range: 3-15Vdc
Output voltage error range: +/-5%
Output current range: 0.1-1.2A
3,Protection Function:
(1). Short-circuit current protection;
(2). Overvoltage protection;
(3).Overcurrent protection;
4,Environment Requirements:
Operating Temperature: 0C to +40C
Operating Relative Humidity: 0%RH to 90%RH
Storage Temperature: -20C to +80C
Storage Relative Humidity: 5%RH to 95%RH non-condensing
5,Product Features:
(1). High temperature fire resistant and flame retardant shell material is used.
(2). Voltage stabilization mode;

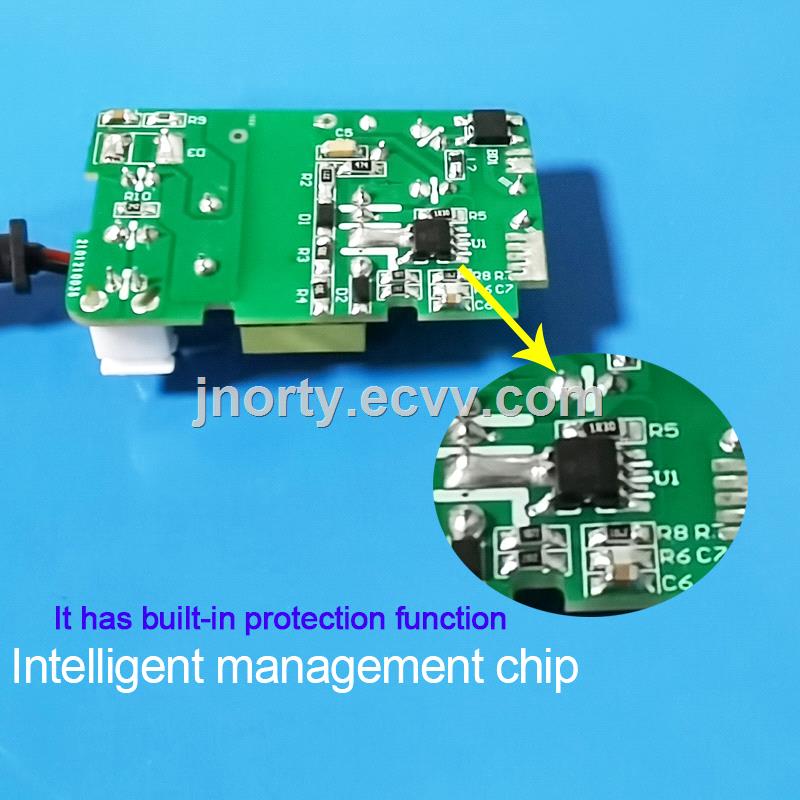

(3). IC electric design, stable performance, safe and reliable;
(4). High efficiency, low no-load power consumption, energy saving and environmental protection;
6. Parameter List:
| Parameter: | |||||||||||||
| INPUT | Input:AC100-240V 50/60Hz 0.2A | ||||||||||||
| Output:DC3V-15V 0.1A-1.2A 6W(Max) | |||||||||||||
| Output Voltage (V) |
3V | 3.3V | 4.2V | 4.5V | 5V | 6V | 7.5V | 8V | 9V | 10V | 12V | 14V | 15V |
| Current Output (A) |
0.33A 0.5A 1.0A 1.2A |
0.5A 1.0A 1.2A |
0.5A 0.7A 1.0A 1.2A |
0.5A 0.7A 1.0A 1.2A |
0.3A 0.5A 0.6A 0.8A 1.0A 1.2A |
0.3A 0.5A 1.0A |
0.5A 0.6A 0.8A |
0.5A 0.6A 0.7A |
0.3A 0.5A 0.65A |
0.3A 0.4A 0.5A 0.6A |
0.3A 0.4A 0.5A |
0.2A 0.3A 0.4A |
0.2A 0.3A 0.4A |

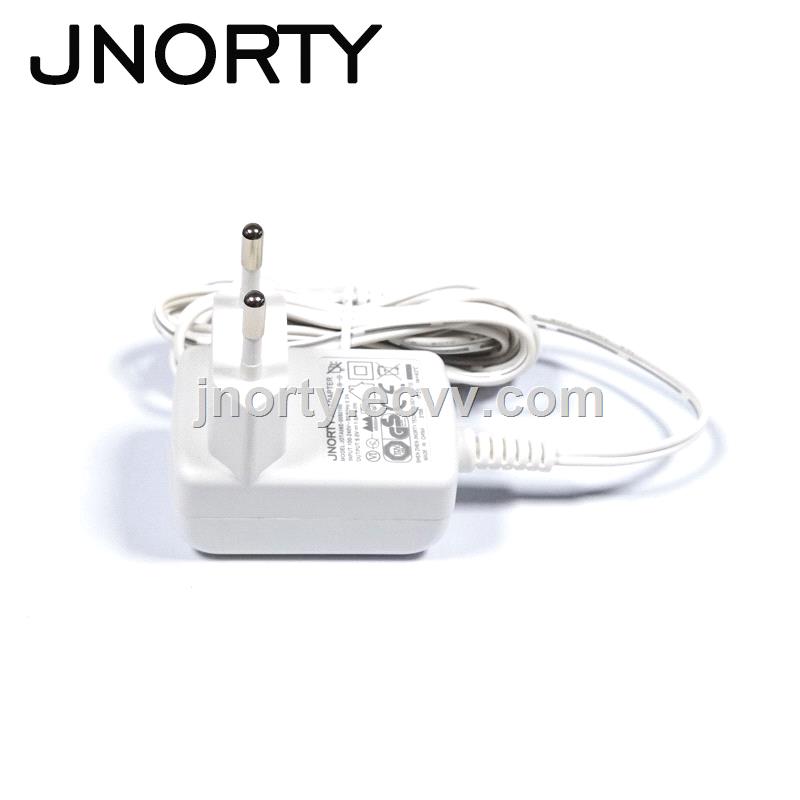

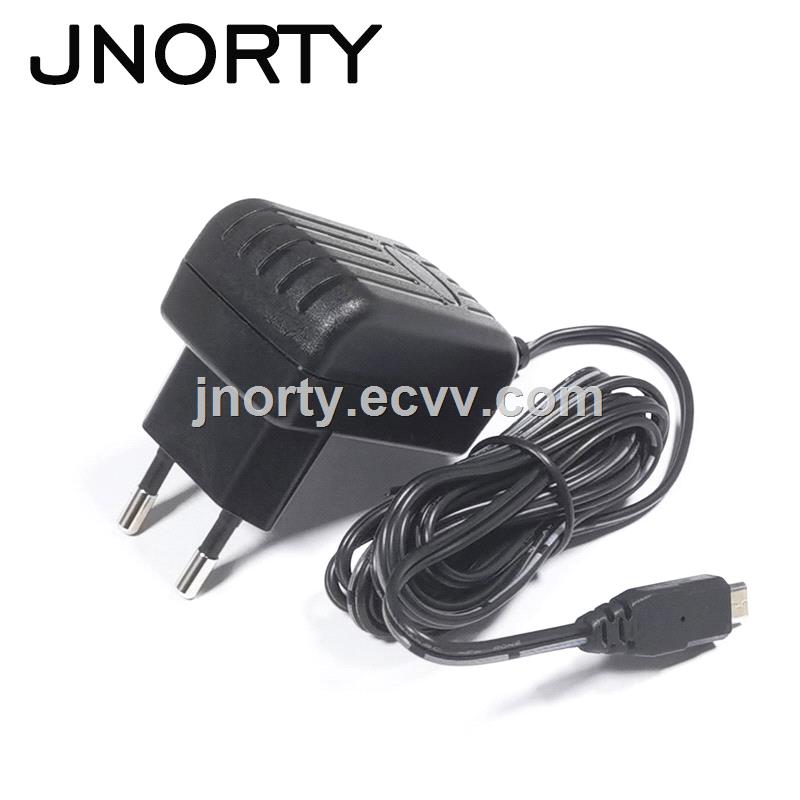

Product Picture:
