Home >Products Catalog > dust collector filter bags > Polyester Antistatic Fabric Air Dust Collector Filter Bag

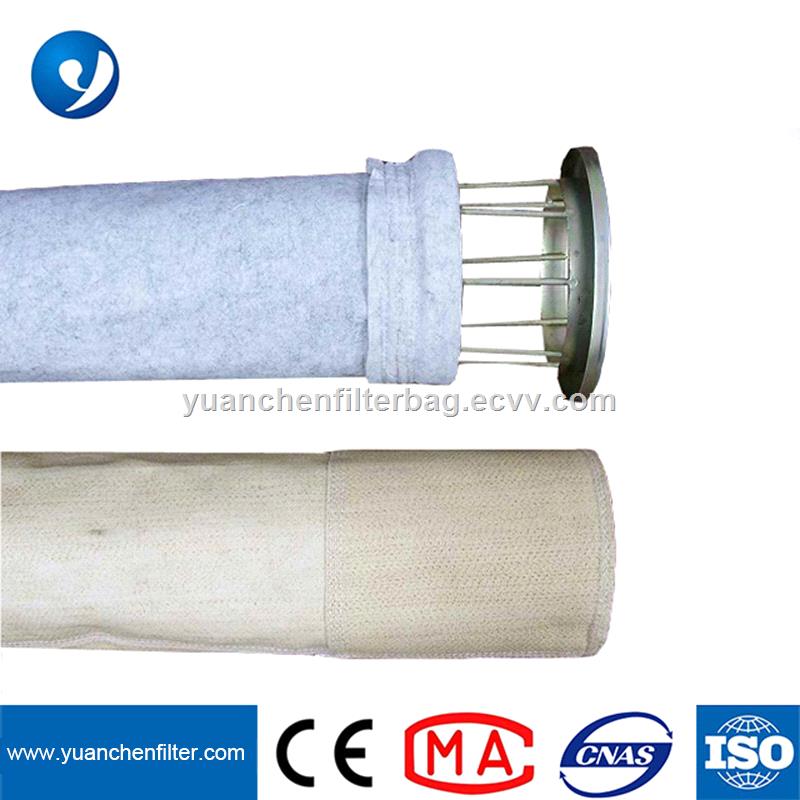

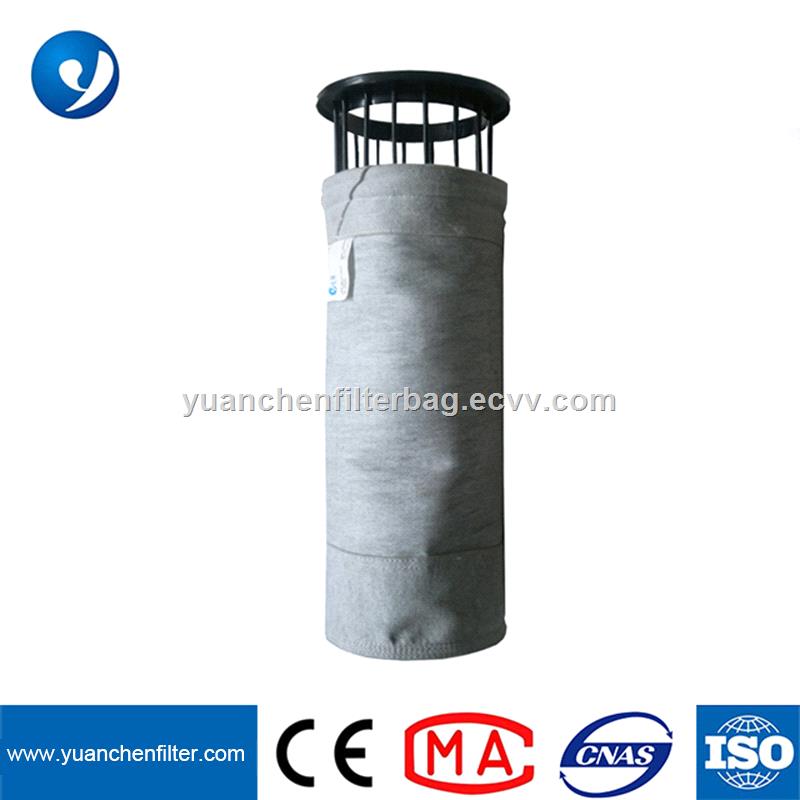

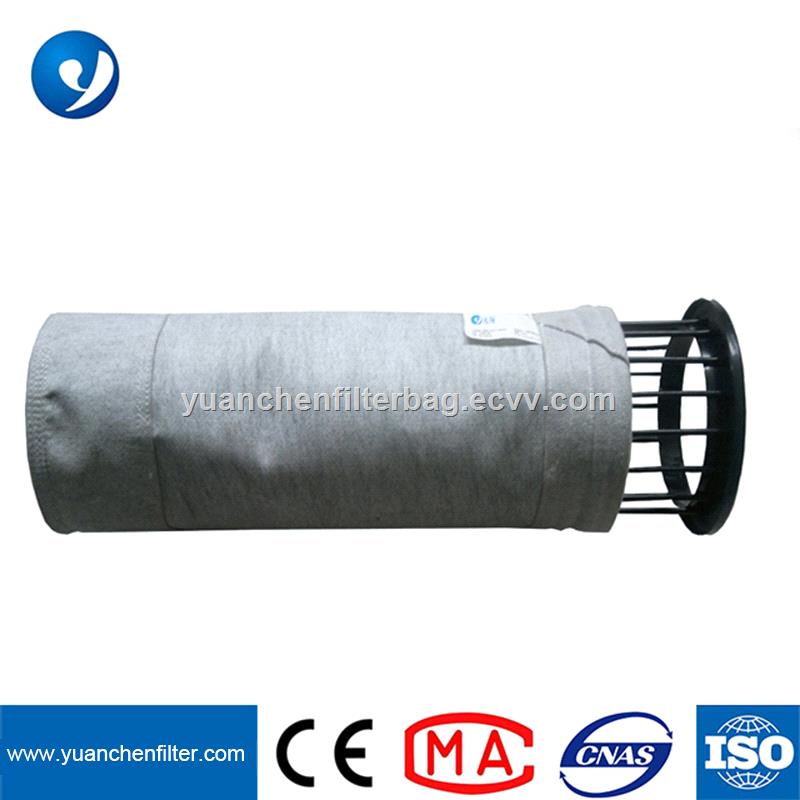

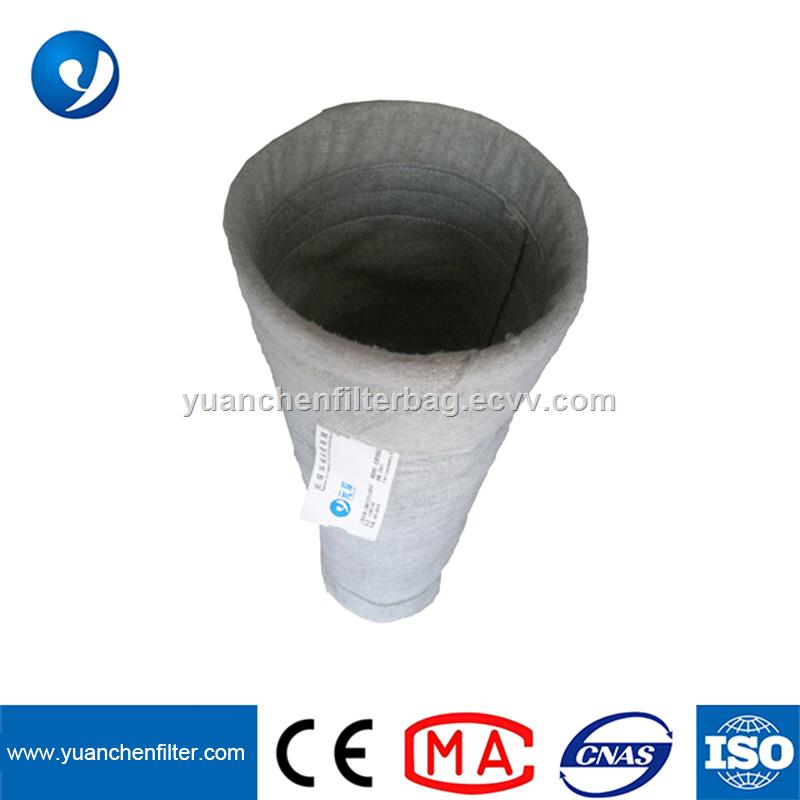

Polyester Antistatic Fabric Air Dust Collector Filter Bag

FOB Price:	0.90 - 1.20 USD/Piece
Supply Ability:	3,500 Piece(s) per Day
Shipping:	fob,cif,cfr,exw within 15 working days
Payment Terms:	L/C, T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	carton packing

Quick Details

Material Of Bag: Polyester
Usage: Dust Filter
Type: Pocket Filter
Brand Name: YUANCHENKEJI
Condition: dust
Model Number: Polyester-05
Scrim: PE
Weight: 500 550 600 gsm
Thickness: 1.8-2.2mm
Temperature: Continue 130 degrees Peak 150 degrees
Application: Cement,Construction,Metallurgy
Finish: Singeing, Calendering, Heat-set,water and oil repllent,anti-static
Air Permeability: 20-50

Specifications

Polyester Antistatic Fabric Air Dust Collector Filter Bag

1. Brief Introduction of Anti-static Filter Bag

Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFE membrane, anti-static, acid resistant and more.

2, We pay attention to following processing matters:
(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.
(2) to choose the right filter bag accessories, specifications and check its quality. the filter bag accessories should match the filter bag quality requirements.
(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.
(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing, no smoking.
(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.

Technical Specification
Name/Quality		100% PE
Component	Shell Fiber	100% PE
	Scrim	100% PE filament fiber
Weight		550gsm±5%
Thickness		1.9mm ± 0.2
Air Permeability /200 PA L/dm2.Min		20-50
Tensile Strength N/5*20CM	Length	≥1000
	Cross	≥1500
Elongation at break %	Length	≤30
	Cross	≤50
Temperature ( Celsius Degree)	Continue	130
	Peaks	150
Finish	Singeing, Calendering, Heat-set, PTFE Membrane

Use Scope	Cement, Steel, Construction, Metallurgy

3. Remarks
1) the length of dust filter bags: can be customized
Usual size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.
2) Process Method: automatic sewing or welded
3)Production details: Double bottoms and reinforcement to make abrasion resistance. Sewing thread: PTFE thread, polyester thread.
4)Inspection: Filter bags will be according to the national standards, industrys standards and enterprise standards.
5) If your required filter bag is different from our usual one, then please send us your drawing picture and choose material you need since we also produce the nonstandard filter bag.

4. Advantages of Us:

1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE, Nomex, FMS etc.
2.Strong intensity
3.Excellent anti-abrasion,good finishing treatment
4.Good raw material, competitive price
5.High filtration efficiency
6.Fast delivery
7.Size can be customized
8.Factory manufacturer could contal quality and price
9.Strict quality inspection and contol
10.Professional designer teams to match with your operating condition

5. Application field:

in industry dust collection

Power Plant or Stations

Filtered dust, waste incineration, Flue ash, discharging flue ash,Coal dust

Building and Construction

Cement, iron and steel,furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminum

Chemical Industry

Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfate Soap powder

6. the filter bag packaging:

Different types of filter bag must be individually packaged. In general, it is wrapped in plastic bags for water proof, then put in a carton. Filter bag must be neat and regular packing, with the ring of the filter bag to avoid ring flat compression deformation. For the requirement to keep the shape of filter bag, it must fill padding for filter bag inside. Any other packing ways also be accepted up to you.
Polyester Antistatic Fabric Air Dust Collector Filter Bag
