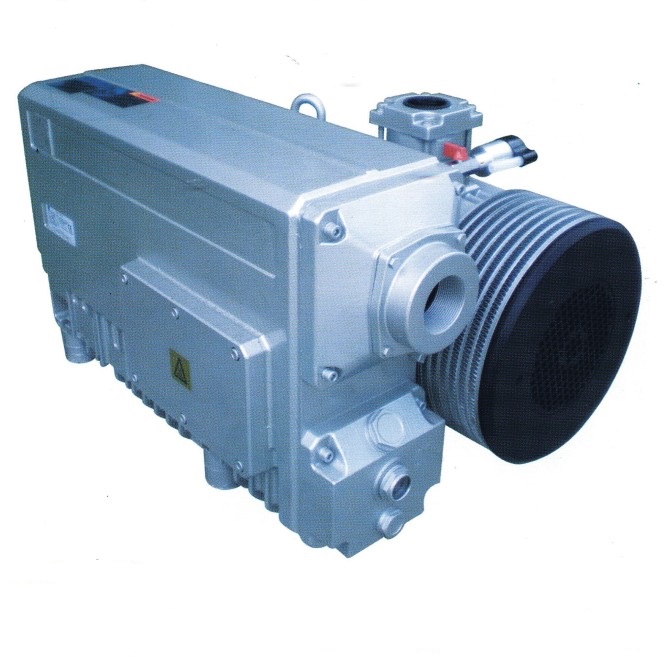

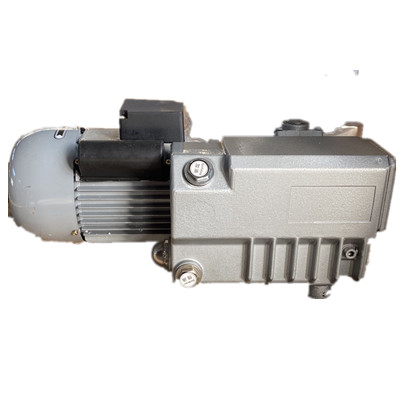

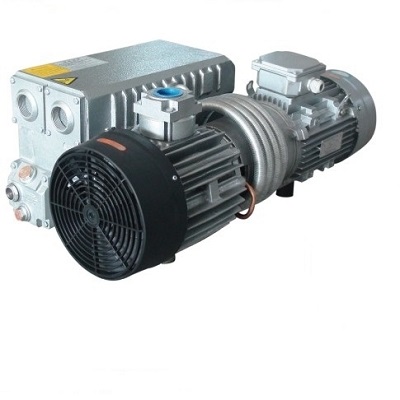

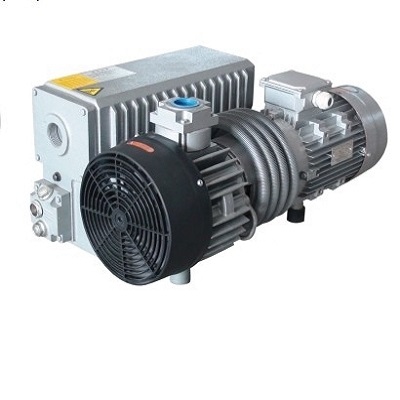

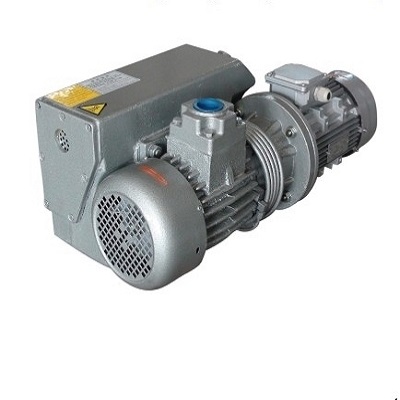

XD Series Single Stage Rotary Vane Oil Sealed Vacuum Pumps

FOB Price:	250.00 - 2900.00 USD/Unit
Shipping:	delivery by sea, by air, door to door delivery can be arranged
Payment Terms:	T/T, Western Union, Other, PayPal

In Stock

Inquiry Now

Related products from verified members

Komatsu Pump Part & Rotary Group, Model PC7...

Price:1.00 USD/Piece

Min. Order:1 Piece
Supply Ve Pump Parts 1 467 030 303

Price:100.00 USD/Piece

Min. Order:1 Piece
Submersible Pump Parts Mounting Plate

Price:50.00 USD/Piece

Min. Order:1 Piece
Plunger (1418405004) Element Injection Pump Par...

Price:4.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China

Quick Details

Pump Parts & Accessries: Pump casing
Standard or Nonstandard: Standard
Brand Name: YHZKB
Pump Parts & Accessries: XD
Material: Cast iron
Impeller: Laminate
Packaging: plywood box, suitable for international shipping

Specifications

XD series vacuum pumps are available for low and medium vacuum fields, which are mainly used for pumping air and other dry gases rather than corrosive, toxic, flammable and explosive gases. Furthermore, they cannot pump the gases containing tiny particles or dust and cannot transport other small objects.

XD series vacuum pumps can work for long term in the well-ventilated room with ambient temperature of 5-30 C and with humidity ≤80%. in addition to the above applications, the XD series vacuum pumps can be available other applications, such as:

1. to increase the amount of the pumping gas and to improve the vacuum degree, please combine with Roots pumps to form a unit for this.

2. If pumping moist air or condensable gas, the condenser can be installed before the vacuum pump and the gas ballast valve is installed on the vacuum pump.

3. If pumping the gases containing dust particles, the dust filters can be installed in front of the vacuum pump.

4. If pumping the corrosive gases, the corrosion-proof gas filter can be installed in front of the vacuum pump.

Applications:

Packing,sticking

---packaging used by vacuum or inert gases for varied food,metal items and electronic elements.

---sticking for photographs and advertisement sheets.

Lifting,transporation,sticking,loading/unloading

---lifting of glass plate.

---sticking of board,plastic plank.

---loading/unloading of non-magnetic item.

---loading/unloading and transportation of paper sheets and paper boards in paper making and printing industry.

---transportation of powder materials.

Drying,air-eliminating,dipping

---dipping and drying of electronic elements.

---air eliminating of moulds,dopes and vacuum furnace.

Others

---laboratory devices.

---medical treatment devices.

---freon recycling

---vacuum heat treatment
