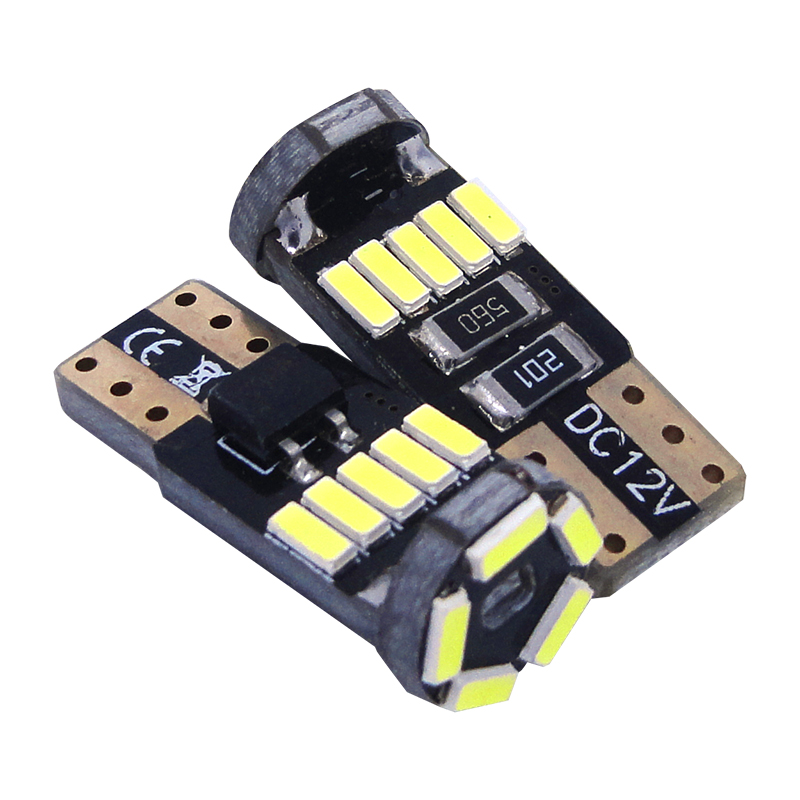

Can Bus, 10Pcs T10/194/W5W, Wedge, LED Car Light, LED Dash Board Light, Door Light, 194,168,161,567,562,561,158,2821,2827,2886

Specifications

Model:194C15W-4014

LED QTY: 15pcs ultra bright smd4014

Lumen:420lm

Voltage: 12V DC (that is, the output voltage of a normal car)

Current:0.09A

Wattage:1.08W

Dimension:10.23*25.25mm

Weight:2.0g

Uses: reversing lights, turn signals, reading lights, license plate lights, door lights, tail box lights, foot lights, etc.

Available colors: white light, blue light, red light, yellow light, green light

Light source:

1. the product adopts imported SMD chips, and the ultra-thin board shape design makes the installation and fit better, the illumination is more uniform, and avoids the disadvantages of poor illumination width caused by the point light source; this SMD product has the characteristics of light diffusivity, wide-angle illumination and high lumen;

2. No delay in lighting, high light purity, strong color rendering and penetrating power;

3. Using LED light-emitting diodes, low power consumption, can better protect the car circuit;

4. LED has no filament, good heat dissipation, low current, low heat, and the vehicle circuit is not easy to oxidize;

5. Strong shock resistance and low temperature rise, it is a new generation of revolutionary solid-state light source;

6. Suitable for DC 10-13V.

[Product Note]:

No need to modify the circuit, directly replace the original traditional glass bulb, pay attention to the high temperature of the original bulb to prevent burns!

When installing, refer to the product dimensions and pay attention to the size of the installation location. Press carefully and do not squeeze the LED chip to avoid damage. If the LED has positive and negative polarity, if it is not on, turn the direction and reinstall;

[LED Features]:

1. It can directly replace the traditional tungsten bulb of the original car;

2. the LED has high luminous purity, no need for lampshade filtering, and the light wavelength error is within 5 nanometers

3. There is no delay when the LED lights up, while the traditional tungsten bulb has a delay of 0.3 seconds.

4. LED has low power consumption. When it reaches the same brightness of traditional bulbs, it consumes only 6% of traditional bulbs, and it also saves electricity and fuel!

5. It has a long life, its filament-free structure does not generate heat, and it can be used for more than 6 years under normal conditions

6. LED car lights can make the vehicle control circuit not easy to oxidize, with a maximum load current of 0.1A.

7.Works for Indicator Light,license plate light,dash board light,door light,backup light,map light,Side Marker Light Bulb,Front,packing light,angle light marker,reading lamp,trunk light,Auto Trans Indicator Light,van light,side clearance lamp,gauge lamp,tail light inner,Turn Signal Light Front Outer,Auto Trans Indicator Light,Vanity Mirror Light,dome light,Ash Tray Light.
8.SMD4014,which will provide a perfect beam pattern,high light output,low power consumption.
9.European and newest vehicle equipped with CAN-BUS system may require load resistors to bypass the error codes/flicker issue when intall as indicator light.

10.Low current,low power consumption,high brightness and long life span.

World LED Car Bulb Material advantage:

1.High power LED beads are from USA KERUI,Netherlands Feilipu,Germany and OUSILANG. SMD beads are from Taiwan Jingyuan.

2.the resistor,capacitance and electrical inductance,it is imported from Japan Murata and TDK.

3.Driver constant IC are imported from PI/TI USA PT4205.

4.We use 70mil big IC rectifier bridge which imported from Japan Murata and TDK.

5.Diode are used from Taiwan military level SS54.

6.We use double painted aviation grade aluminum PCB on high power LED car

Bulb,like Kerui,Feilipu.and double painted fiberglass PCB on low power LED car bulb.Aluminum aviation grade PCB thickness is 2mm.Fiberglass PCB thickness is 1.6mm and 1mm.

7.We use gold wire pure copper bracket lamp beads.High efficient heat dissipation.

8.We use the most expensive thickening red copper as 1156/1157/BA9S socket.

9.Lens are HD high temperature resistant spotlight lens.

10.T10/T20/T25 socket are high temperature resistant plastic base.

Socket Type:T10(USA:194,168,161,567,562,561,158,European:2821,2827,2886X) T-10, 147, 152,159,192, 193, #194,259,280,285,447,464,555,558,585,655,656,657,1250,1251,

1252,2450,2652,2921,2825,12256,12961,2521,2525,W5W,194NA

this item fits for these sockets:T10(USA:194,168,161,567,562,561,158,European:2821,2827,2886X) T-10, 147, 152,159,192, 193, #194,259,280,285,447,464,555,558,585,655,656,657,1250,1251,

1252,2450,2652,2921,2825,12256,12961,2521,2525,W5W,194NA

Note:Please confirm your socket before making an order. Thank you.
