Home >Products Catalog > Impact testing machine > CSL-Y Impact Specimen Gap Hydraulic Broaching Machine

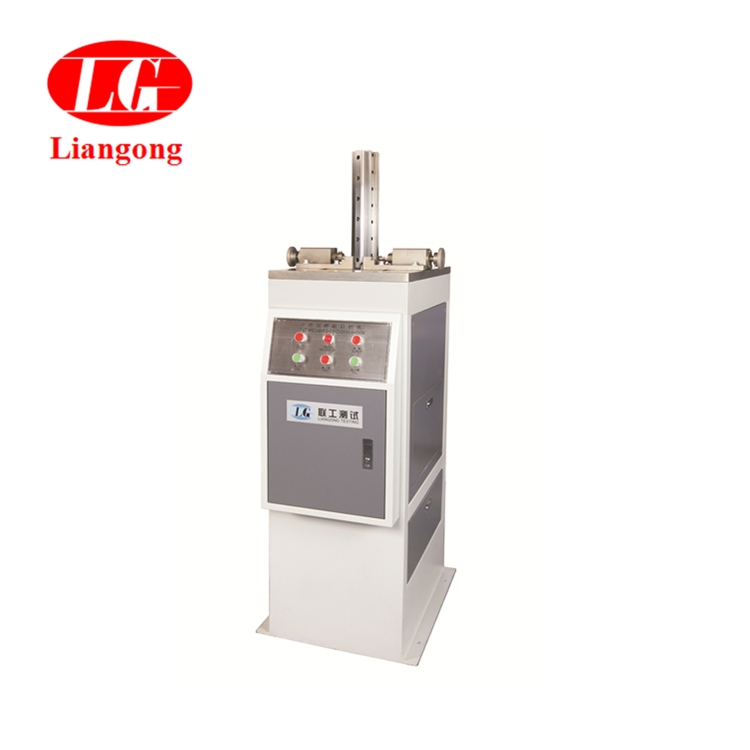

CSL-Y Impact Specimen Gap Hydraulic Broaching Machine

FOB Price:	4000.00 - 10000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Usage: Impact Testing Machine
Power: Electronic
Brand Name: Liangong
Warranty: 12 months
weight: 180KG
Model Number: CSL-Y

Specifications

CSLY Impact Specimen Gap Hydraulic Broaching Machine

Product description

the impact sample notch broaching machine is the only device that can process the notch of the qualified Charpy impact sample except for the optical curve grinder in the country. the machine adopts the processing principle of one-time forming, and the machined notch has excellent uniformity. this equipment is a necessary special equipment for metallurgy, boiler pressure vessels, vehicles, engineering machinery manufacturing and scientific research institutions and other departments.

Standard

GB/T229-2007 Metallic materials -- Charpy pendulum impact test -- Part1: Test Method

ISO148-1-2009 Metallic materials -- Charpy pendulum impact test -- Part 1: Test method

ISO148-2-2008 Metallic materials -- Charpy pendulum impact test -- Part 2: Verification of testing machines

TechnicalPArameters

Model	CSL-Y
SpecimeN gap shape	V-or U-(2mm)
Processing the Specimen size	1010(7.5 or 5)55mm
Drive mode	Hydraulic
Broach stroke	350mm
Broach Materials	W18Cr4V
Cutting speed	2.5m/min
Power	3-phase 4-wire 380V 50Hz 0.4KW Main motor0.37KW
Dimensions (mm)	6604001200mm
Weight	200Kg
Working condition: 1.Room temperature 20°C±5°C 2.Relative humidity less than 85% 3.Surrounding environment is non-corrosive medium, no vibration, no strong Electromagnetic interference.
