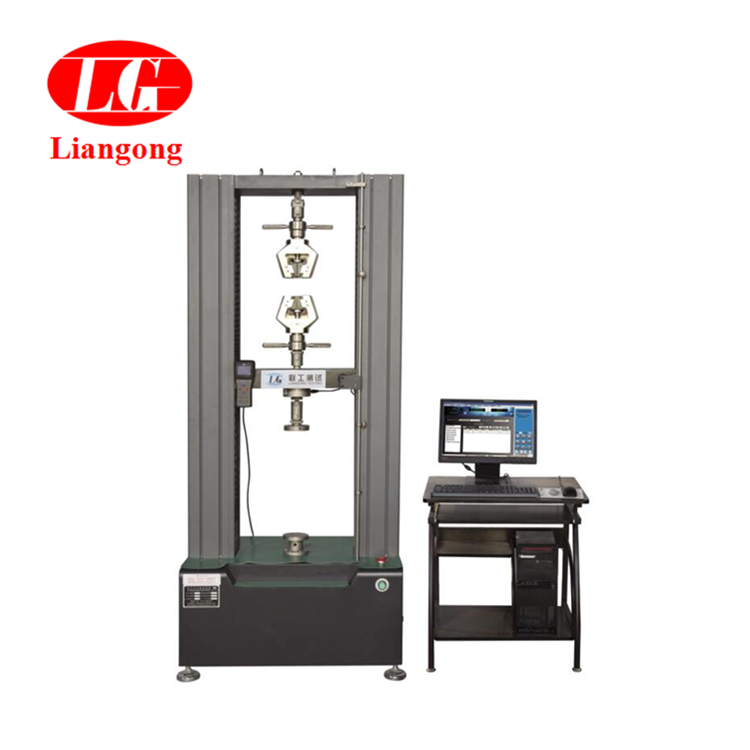

CMT-10 10kN Computer Control Electronic Universal Testing Machine for Rubber Plastic Materials

FOB Price:	7500.00 - 15000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Usage: Tensile Testing Machine
Power: Electronic
Brand Name: Liangong
Warranty: 12 months
weight: 180KG
Model Number: CMT-10

Specifications

Application of Equipment

this machine is applied in analysis and research of statics property testing of tensile, compression, bending, shearing, peeling, tearing, loading, relaxation, reciprocating and other items of metal and nonmetal material (including composite material). It can calculate ReH, ReL, Rp0.2, FM, Rt0.5 , Rt0.6, Rt0.65, Rt0.7, Rm, E and other testing parameters automatically and can do test and provide data according to GB, ISO, DIN, ASTM, JIS domestic and other international standards.

Main technical parameters

Measurement Parameters
Maximum test force	10kN (can add sensors to extend the force range)
Accuracy class	0.5
Measuring range of test force	0.2%~100%FS (full scale)
Indicating error of test force	Within ±0.5% of indicating value
Resolution of test force	±1/300000 of maximum test force, grade unchanged and Resolution unchanged in whole process
Measuring range of deformation	0.2%~100%FS
Indicating error of deformation	Within ±0.5% of indicating value
Resolution of deformation	1/300000 of maximum deformation
Indicating error of displacement	Within ±0.5% of indicating value
Resolution of displacement	0.025μm

Control Parameters
Adjustable range of force control rate	0.005~5%FS/s
Control accuracy of force control rate	When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.
Adjustable range of deformation rate	0.005~5%FS/s
Control accuracy of deformation rate	When rate is less than 0.05%FS/s, within ±2% of setting value; When rate is no less than 0.05%FS/s, within ±0.5% of setting value.
Adjustable range of displacement rate	0.001~500mm/min
Control accuracy of displacement rate	When rate is less than 0.05%FS/s, within ±1% of setting value When rate is no less than 0.05%FS/s, within ±0.2% of setting value

Other Parameters
Effective testing width	440mm
Effective distance of tension	610mm (including wedge tensile fixture and can be custom-made according to user's requirements)
Removable distance of beam	970mm
Size of host (length x width x height)	(8206201880)mm
Weight of host	about 350Kg
Power supply	Single phase, 220V, 50Hz,0.75kW
