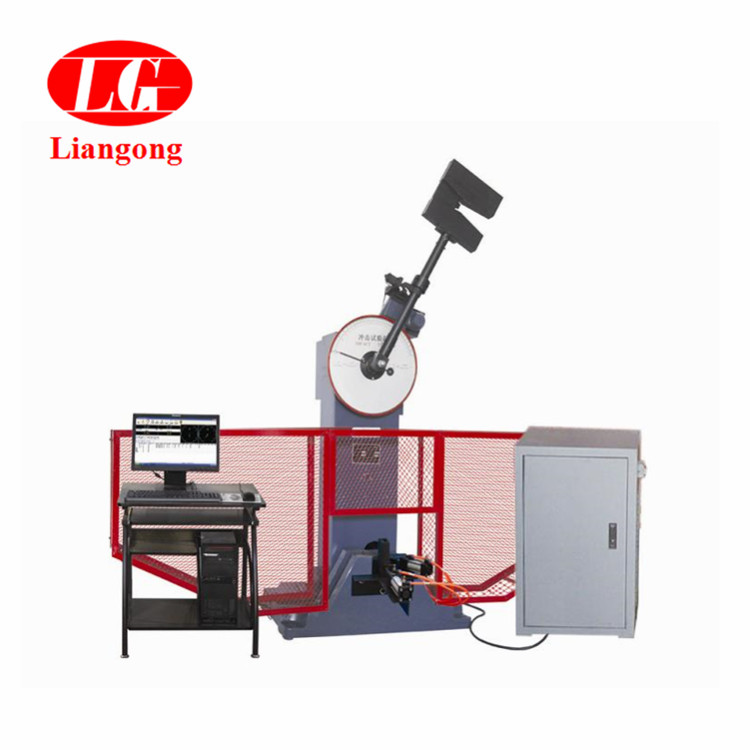

JBW-300Z Computer Control Room Temperature Automatic Charpy Impact Testing Machine

FOB Price:	5500.00 - 15000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Usage: Impact Testing Machine
Power: Electronic
Brand Name: Liangong
Warranty: 12 months
weight: 430kg
Model Number: JBW-300Z

Specifications

JBW300Z Computer Control Room Temperature Automatic Charpy Impact Testing Machine

Equipment application

this equipment is used to measure the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. Using the difference between the potential energy before the impact of the pendulum and the remaining potential energy after the impact is displayed on the dial, to obtain the absorption work of the sample. the maximum impact energy is 300J, and also attached one pendulum of 150J, and the cross section of the sample used is (10 10) mm.

the operation adopts semi-automatic control, easy to operate, high working efficiency. Using the residual energy after the pendulum breaking the sample, it can automatically raise the pendulum, and it can reflect its superiority when continuously performing specimen impact test. It is mainly used in measurement and quality inspection, technical supervision departments, metallurgy and iron and steel, machinery manufacturing, pressure vessels, automobile production, universities, research institutes and other industries.

Technical Parameters

Computer Control Room Temperature Automatic Charpy Impact Testing Machine
Machine model		JBW-300Z
Impact energy		300J	150J
Dial scale range and indexing value	Energy range	0-300J	0-150J
	Indexing value for each cell	2J	1J
Pendulum torque		M=160.7695Nm	M=80.3848Nm
Pendulum preparing angle		150°
Pendulum shaft center of rotation to the impact point distance (sample center)		750mm
Impact speed		5.2m/s
Specimen support span		40mm
Round corner of support jaw		R (1.0~1.5)mm (1mm is special ordered.)
Blade curvature radius		R (2.0~2.5)mm (8mm is special ordered.)
Specimen holder support surface angle		11°
Impact blade angle		30°
Impact blade thickness		16mm
Measuring angle range		0-360°
Angle resolution		≤0.06°
Specimen dimension		101055 mm (Thickness 7.5mm, 5mm is special ordered.)
Specimen box capacity		10 pieces
Delivery speed		≤4S
Machine host weight		430kg
Power supply		Three phase four-wire, 380V 50Hz 400W
