Jinan Liangong Testing Technology Co., Ltd.
China Manufacturer with main products: Universal Testing Machine, Tensile Testing Machine, Impact Testing Machine, Compression Testing Machine, Cupping Testing Machine, Hardness... |

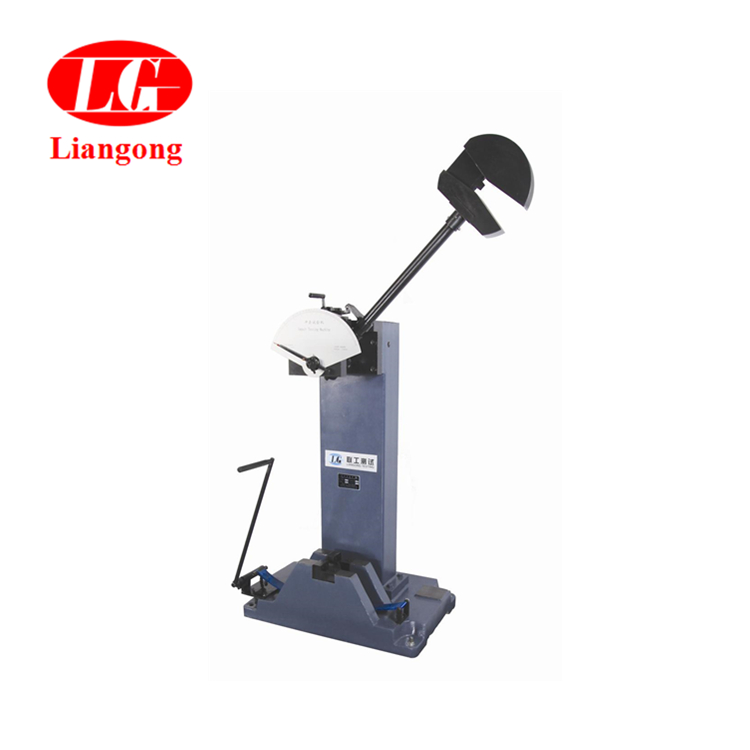

JB-300 Manual Charpy Impact Testing Machine
| FOB Price: | 1500.00 - 5000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | Qingdao port |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Usage: Impact Testing Machine
- Power: Electronic
- Brand Name: Liangong
- Warranty: 12 months
- weight: 320kg
- Model Number: JB-300
Specifications
Equipment application
this equipment is used to measure the resistance of metal materials to impact under dynamic load in order to judge the properties of the material under dynamic load. Using the difference between the potential energy before the impact of the pendulum and the remaining potential energy after the impact is displayed on the dial, to obtain the absorption work of the sample. the maximum impact energy is 300J, and the cross section of the sample used is (1010) mm.
the operation is manual type, easy to operate, high working efficiency.
Technical Parameters
Manual Charpy Impact Testing Machine | |||
Machine model |
JB-300 | ||
Impact energy |
300J |
150J | |
Dial scale range and indexing value |
Energy range |
0-300J |
0-150J |
Indexing value for each cell |
2J |
1J | |
Pendulum torque |
M=160.7695Nm |
M=80.3848Nm | |
Pendulum preparing angle |
135° | ||
Pendulum shaft center of rotation to the impact point distance (sample center) |
800mm | ||
Impact speed |
5.0m/s | ||
Specimen support span |
40mm | ||
Round corner of support jaw |
R (1.0~1.5)mm (1mm is special ordered.) | ||
Blade curvature radius |
R (2.0~2.5)mm (8mm is special ordered.) | ||
Specimen holder support surface angle |
11° | ||
Impact blade angle |
30° | ||
Impact blade thickness |
16mm | ||
Specimen dimension |
101055 mm (Thickness 7.5mm, 5mm is special ordered) | ||
Machine outline dimension (LengthWidthHeight) |
7005101350mm | ||
Machine host weight |
320kg | ||
