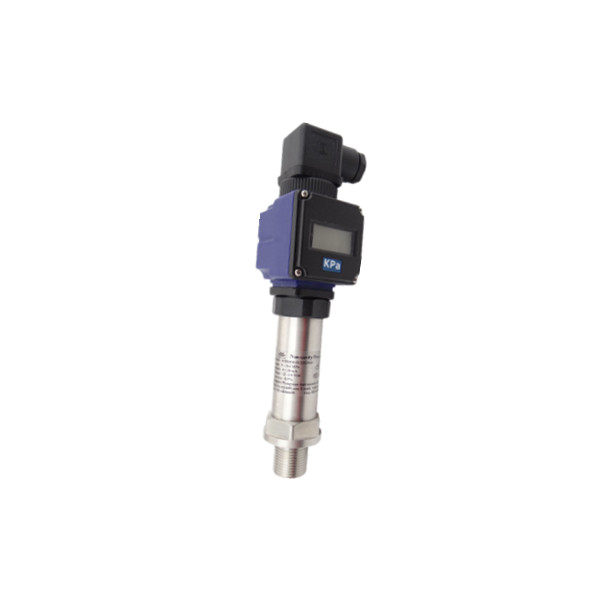

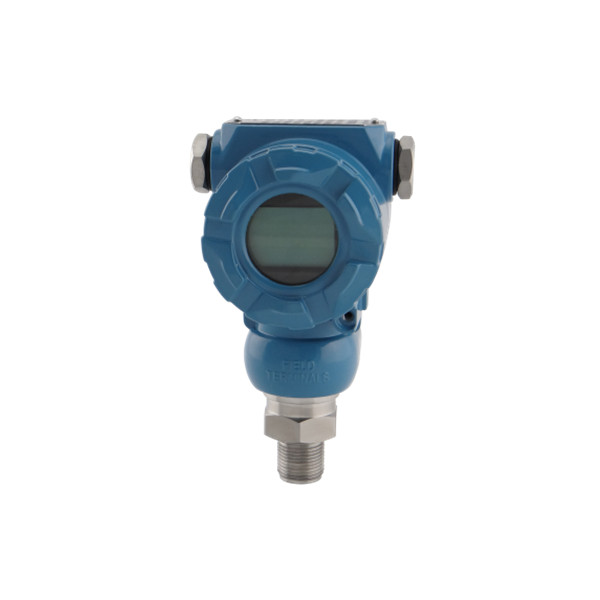

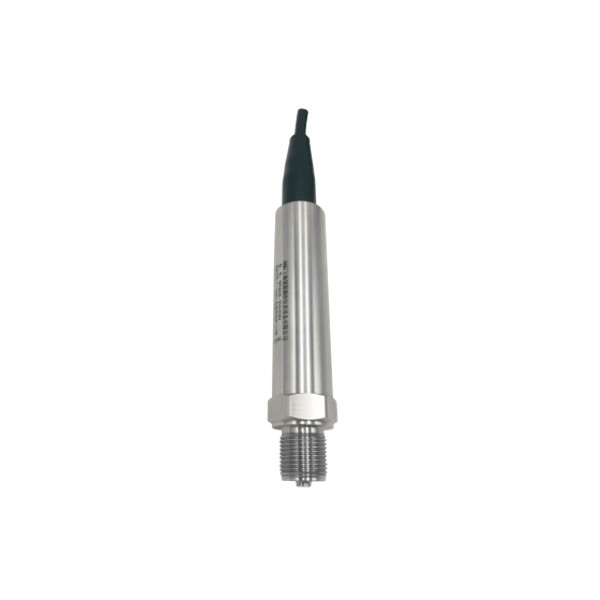

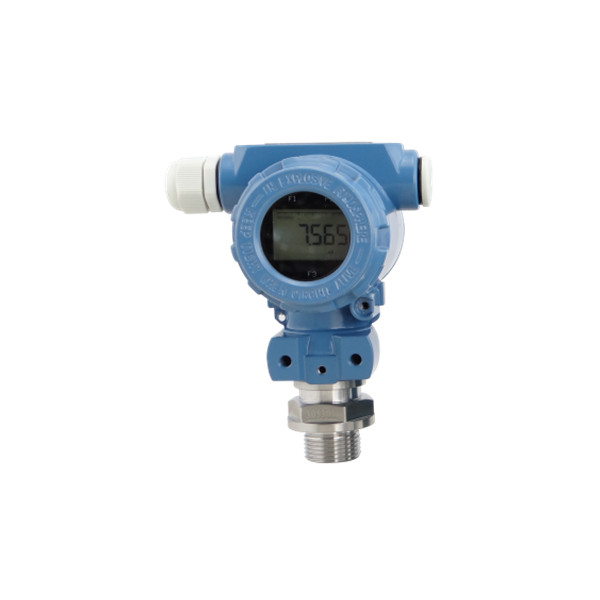

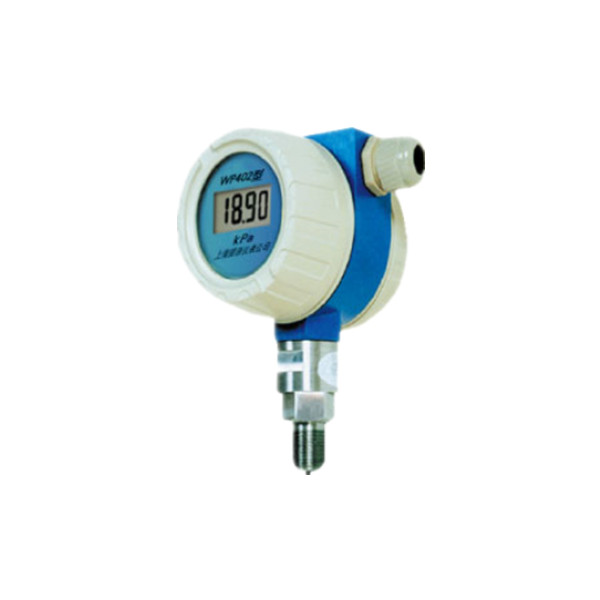

WP402 Series High Precision Pressure Transmitter Pressure Sensor
| FOB Price: | 75.00 - 145.00 USD/Piece |
|---|---|
| Supply Ability: | 6,000 Piece(s) per Month |
| Shipping: | SHANGHAI |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | WP402 pressure transmitter use the standard package. |
Quick Details
- Brand Name: Wangyuan
- Output: 4-20mA, 4-20mA + HART, RS485, 4-20mA + RS485, 0-5V, 0-10V
- Accuracy: 0.1%FS, 0.2%FS, 0.5%FS
- Power Supply: 24VDC
- Range: customized
- Model Number: WP402
Specifications
WP402A High precision Pressure transmitter
Application
this type pressure transmitter can be used toMeasure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power,WAter supply
Environmental protection
Military project
Aerospace, Oil & Gas
Ocean and etc
Description
WP402 Series pressure transmitters adopt advanced imported sensor component and high precision sensitive element with anti-corrosive diaphragm, which is combined with the solid state integrated technology and isolate diaphragm technology. the product is special designed to work high performance under various conditions. the temperature compensation resistance is made on admixture ceramic, which is the excellent technology of the pressure transmitters. with strong anti-jamming performance, this pressure transmitter is suitable for long distance transmission. WP402 pressure transmitter is widely used to exactitude measure and control for military project, scientific research, aerospace, petroleum & chemical, electric power, ocean, coal mine and other sever environment.
Features
Imported sensor component
High precision0.05%FS, 0.1%FS, 0.2%FS
Compact dimension design, strong
Light weight, easy to install, maintenance-free
100% Linear meter or3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Intrinsically safe comply with requirement of GB38364-83;
Flameproofsafe comply with requirements of GB38362-83.
Specifications
Name |
WP402A Pressure transmitter | ||
Pressure range |
01kPa100MPa | ||
Pressure type |
Gauge pressure(G), Absolute pressure(A), Sealed pressure(S),NegativePressure (N). | ||
Measured medium |
Medium compatible with stainless steel or alumina ceramics | ||
Compensation range |
-2085℃ | ||
Operation temperature |
-4085℃ | ||
Storage temperature |
-50120℃ | ||
Output signal |
0-10mA; 0-5V; 1-5V | ||
Power supply |
24V DC; 220VAC, 50Hz | ||
Electrical connection |
Cable, Terminal block | ||
Pressure connection |
M20*1.5, G1/2, M27*2 Flush diaphragm | ||
Maximum pressure |
Measurement upper limit |
Overload |
Long term stability |
<50kPa |
2~5 times |
<0.25%FS/year | |
≥50kPa |
1.5~3 times |
<0.2%FS/year | |
Features |
Non-Linearity |
Hysteresis/ repeatability |
Accuracy |
Minimum value |
0.02 |
0 |
0.05 |
Typical value |
0.05 |
0.01 |
0.1 |
Maximum value |
0.1 |
0.05 |
0.25 |
Note: Other technical parameters, please refer to Specification (below). | |||
