Vertical Glass Drilling & Milling Machine

FOB Price:	8000.00 - 9000.00 USD/Case
Supply Ability:	10 Case(s) per Month
Shipping:	FOB TianJIn
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	40HQ

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
CNC or Not: CNC
Brand Name: Green Vine
Condition: New
Certification: CE
Weight: 6880KG
Power(W): 22KW
Voltage: 380
Type: Vertical
Model Number: Sky2030.B

Specifications

1 MachineDescription:

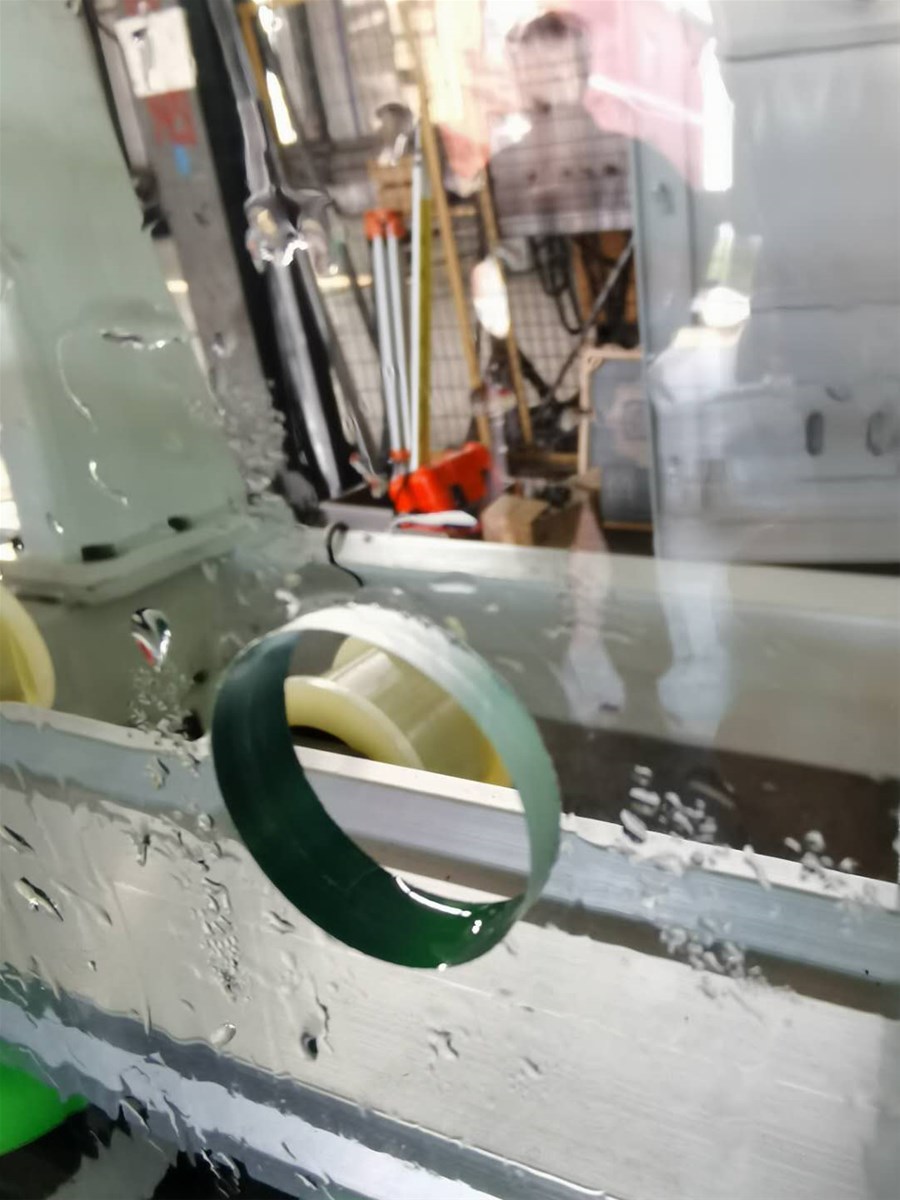

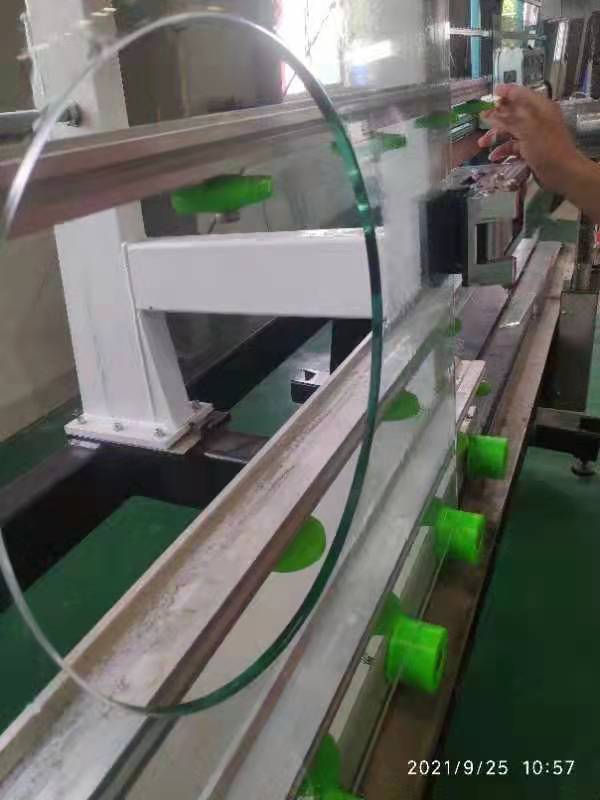

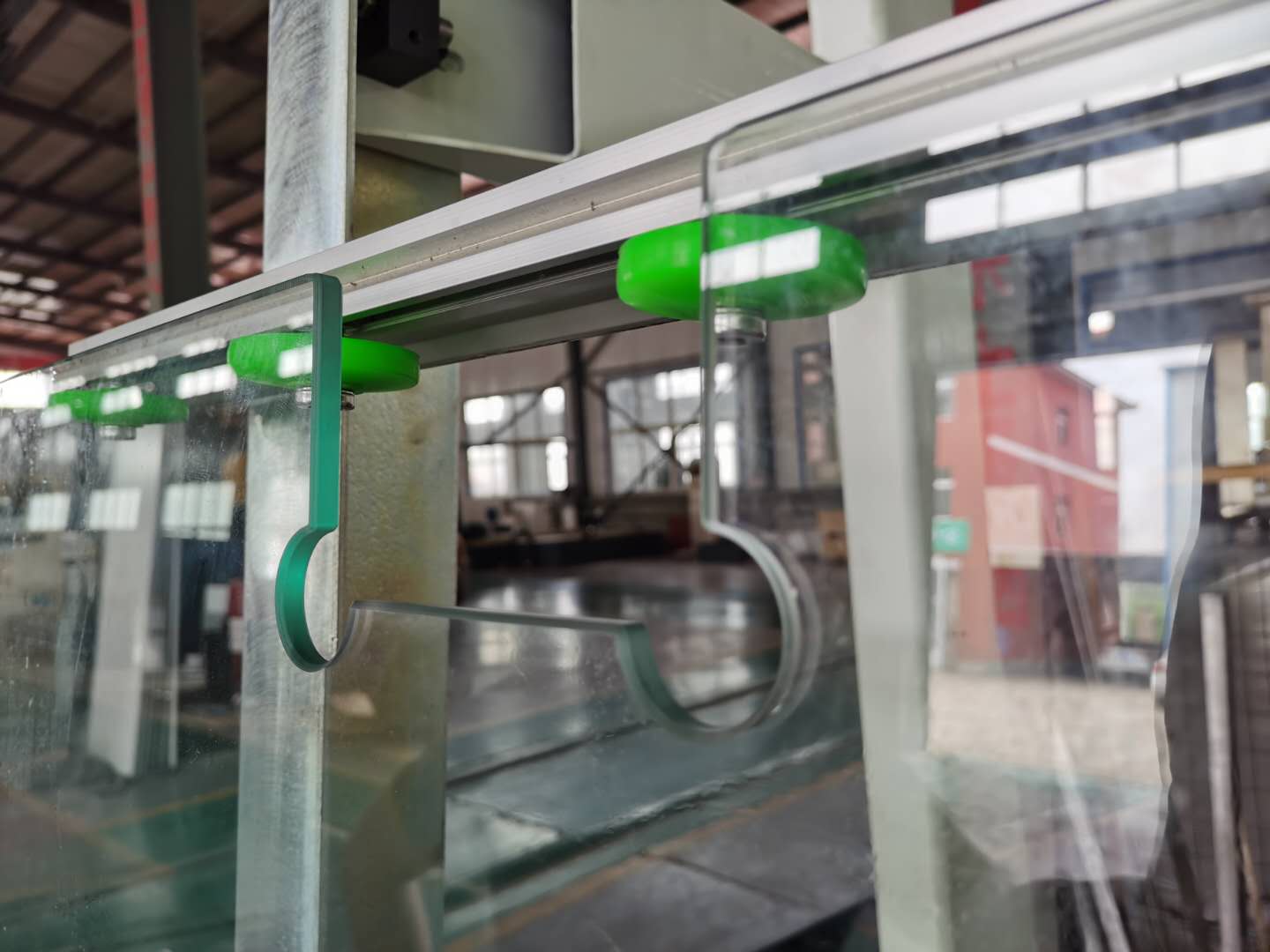

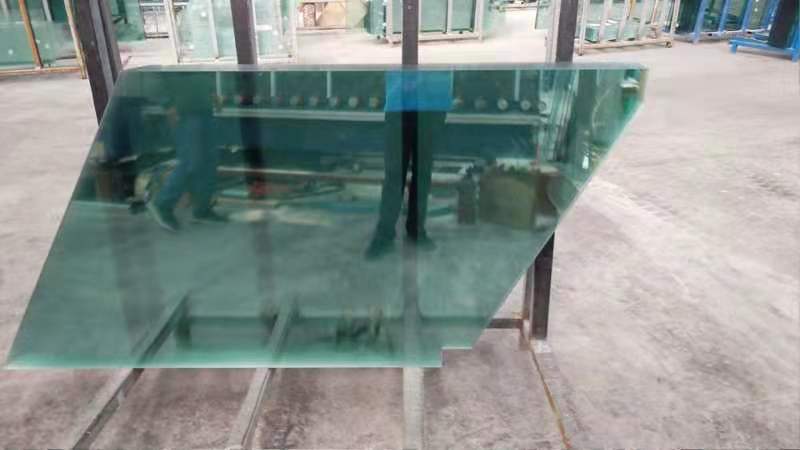

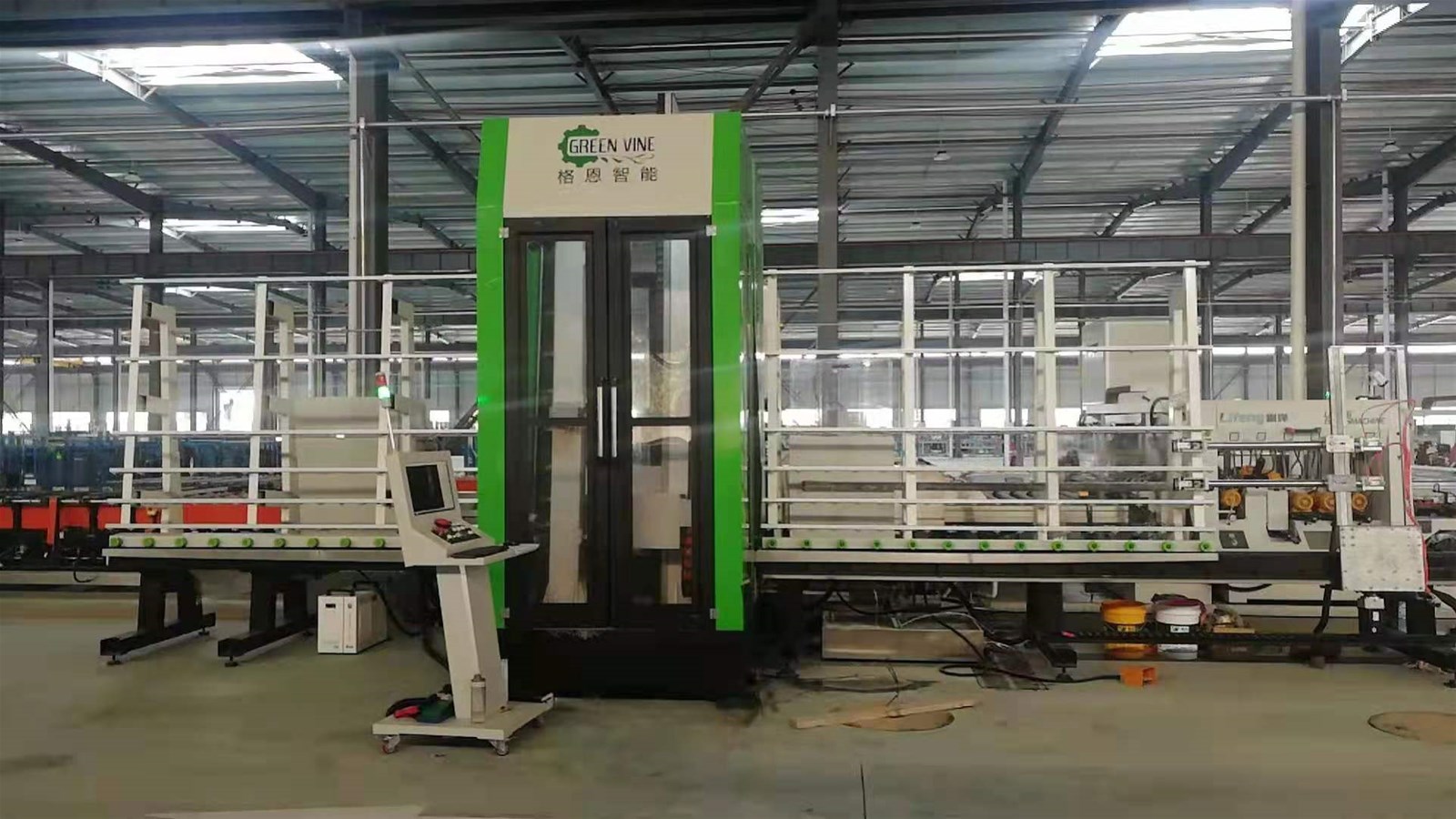

GREEN SKY-B is a vertical glass drilling and milling machine. It is a five aixs composite CNC working center which is designed for drilling hole, doing notches,cut-outs, inner grinding and countersinking on all regular and most irregular glass sheetwith thickness of 4-19mm. the machine is controlled by a high-end numerical control operating system to achieve precise control of each servo axis. this flexibility of the control system can meet the requirement of different products. Combined with the structure of high rigidity and high stability, glass processing in high-speed and high-precision can be easily implemented.

GREEN SKY-B is a perfect choice for glass processing factories. All work can be processed automatically and the complicated jobs can be performed in quick speed and high efficiency with smallest investment. Thanks to the self-developed CAM software, many powerful functions can be used. It can automatically generate processing technology for different processing graphics, and generate processing programs according to specific processes. Same time, it also has auxiliary functions such as library management and tool library management, which greatly reduces the heavy processing operations, making it so easy to operate.

2 Advantages

1, Double electro-spindles with central water cooling. Holes can be drilled by the two opposite heads so that the drilling speed and quality can be better ensured;

2,Automatically tool change through 7+7 tool magazine. All complicated and heavy operation can be implemented in high effeciency automatically;

3,Designed in vertical direction which occupies less area and is convenient to load and unload glass sheet, especially for big architectural glass;

4, Glass processing line is easily connected. Vertical drillingMillingWashing processing line can be composed of GREEN SKY-B and vertical washing machine;

5,Provide private customized service to meet different product requirements. Such as different machine dimensions, glass input-output directions and so on...

6, More than 40 common graphics are created in the graphics library. Easy to learn, no need CAD skill;

7, DXF is supported as alternative;
vertical glass drilling and milling machine
