DR5G17 Support 802.11ac/Ax, Mmcx Connector 5G 17dBi Panel Antenna
| FOB Price: | 180.00 - 200.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: GAOTONG
- Input connector type: 5GHz of frequency
- Lightning protection: MMCX connector
- Gain(dBi): Support 802.3 11AX/AC/AN
- Frequency range(MHz): 5GHz Wireless Communication
- Model Number: antenna
- wifi6: antenna
Specifications
Wallys Communications (Suzhou) Co LTD(wallystech com)
with over 15 years of experience in wireless industry and penetrating market olfaction,
Wallys has designed and manufactured many high quality and cost-effective routerboards and
Wireless network cards
Products:
Wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless

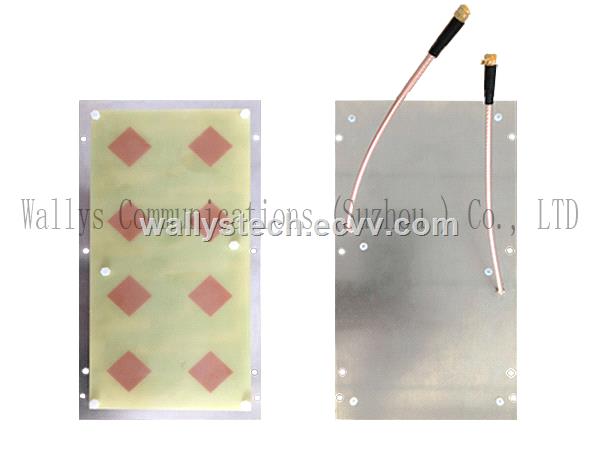

DR5G17 support 802.11ac/ax, mmcx connector 5G 17dBi panel antenna
1. Feature
* 17dBi Dual Polarized Micro strip Antenna Array
* 5GHz of frequency
* MMCX connector
* Support 802.3 11AX/AC/AN
* RoHS compliance
2. Application
* 5GHz Wireless Communication
* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card
3. Description
this antenna array is designed for 5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
General Data |
Product Name |
Dual Polarized Micro strip Antenna Array | |
Part No. |
DR5G17_A |
DR5G17_H |
Frequency |
5.1GHz-5.9GHz |
5.1GHz-5.9GHz |
V.S.W.R |
<1.85 |
<1.65 |
Gain (dBi) |
17dbi |
18dbi |
Polarization |
Vertical & horizontal |
Vertical & horizontal |
Isolation |
>40db |
>40db |
Storage Temp |
-20°C~70°C |
-20°C~70°C |
Operating Temperature |
-20°C~60°C |
-20°C~60°C |
Antenna Type |
Antenna Array |
Antenna Array |
Dimension |
200*105mm |
200*105mm |
Weight |
|
|
