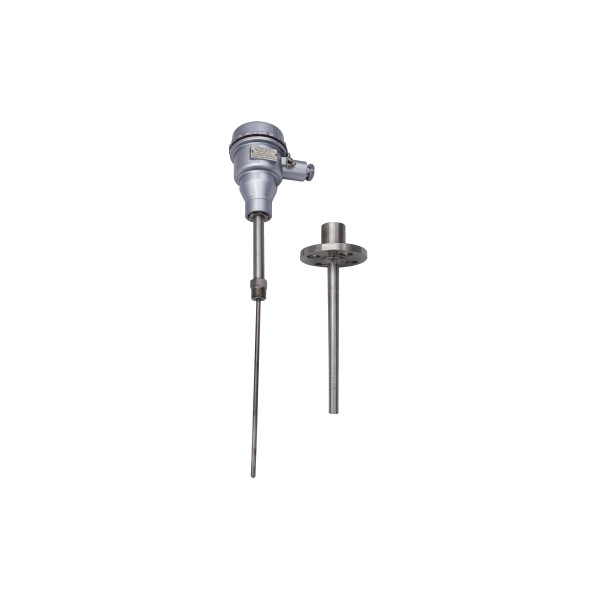

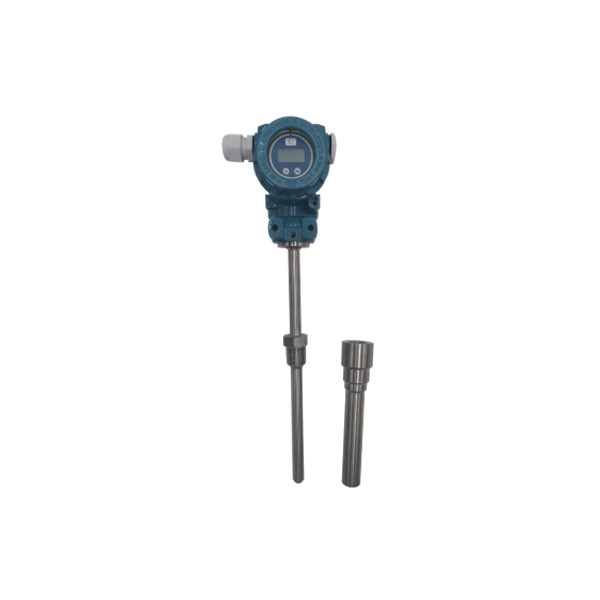

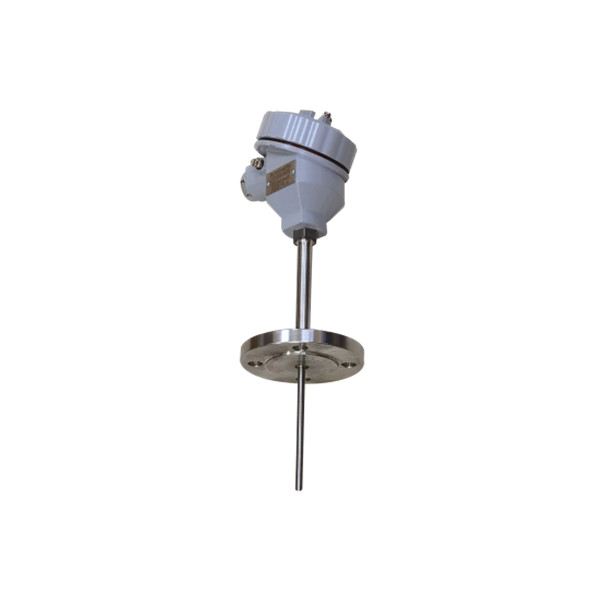

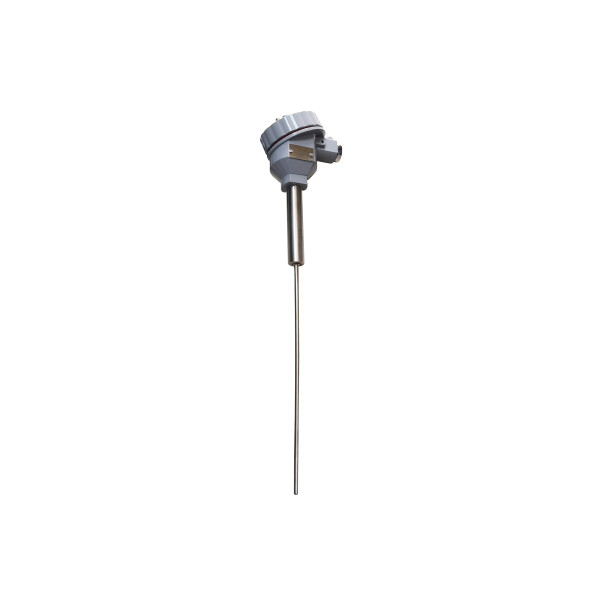

WB Series High Accuracy Temperature Transmitter

FOB Price:	40.00 - 254.00 USD/Piece
Supply Ability:	6,000 Piece(s) per Month
Shipping:	Shanghai, express
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	WB series temperature transmitter use standard package.

Quick Details

Temperature range: Cusomized
Accuracy: refer to chart below
Theory: Temperature Transmitter
Usage: Industrial
Brand Name: Wangyuan
Model Number: WB

Specifications

WB Series Temperature Transmitter

Features
Linearity correct feature

Input signal: Thermocouple J,K, E, T,S,B

Thermal resistance PT100, Cu50, Cu100

Description

the function of the WB series temperature transmitter is to amplify the electrical signals from the sensor, to correct and depending on the model galvanically insulate them. The conditioned signal can then easily be transmitted over long distances to the in-/output sections of a process control system or controller.

since the electrical signal from the thermocouple or resistance thermometer is relatively strong, signal amplification in close proximity to the sensors is not required.

Specification

WB Series Temperature Transmitter

Input signal

Thermocouple: K,E,J,T,S,B

RTD: Pt100,Cu50,Cu100

OutPut signal

420mA(DC)/ HART

Accuracy

See the chart below.

Resistance Range

0500Ω

Supply voltage

24V(DC)±10%

Ambient temperature

70℃ RTD: -1085℃

Humidity: 5100%RH

Installation height

Standard lengths are 150mm, with other lengths quickly available.

Allowable deviation

Thermocouple:

	Allowable deviation			Circuit
	Class I	Class II	Class III	Analogue	HART
E/J/K	±1.5℃ or ±1.4%t	±2.5℃ or ±0.75%t		≧0.5%	≦0.2K or ±0.08%
T	±0.5℃ or ±0.4%t	±1℃ or ±0.75%t	±1℃ or ±1.5%t
B/S	±1℃ or ±0.15%t	±1.5℃ or ±0.25%t	±4℃ or ±0.5%t

Thermal resistance:

	Allowable deviation		Circuit
	Acuracy	value	Analogue	HART
Pt100	Class A	±(0.15 or ±0.2%∣t∣	≧±0.2%	≦0.2K or ±0.08%
	Class B	±(0.30 or ±0.5%∣t∣
Cu	-	±(0.30 or ±0.6%∣t∣

Notice

1)If you need a temperature with high accuracy, such as class A for thermal resistance, class 1 for Thermocouple, please contact our sales department for availability.
2)normally the protective tube material is 316L,If you need other material, please consult us for availability.
