Home >Products Catalog > Breaker Booms System > YZH Brand Pedestal Rockbreaker System

YZH Brand Pedestal Rockbreaker System

FOB Price:	35000.00 - 99999.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	BY SEA
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	SEAWORTHY PACKING

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Brand Name: YZH
Motor Type: DC Motor
Condition: New
Certification: is9001
Model Number: YZH
Application: Mines
Type: Hammer Crusher
OEM: yes
ODM: yes
Color: Red
Slewing angle: 360 or 180

Specifications

YZH Brand Pedestal Rockbreaker System

1.Brief Introduction:

YZH Pedestal Rockbreaker System is to increase the productivity and safety of crushing line operators

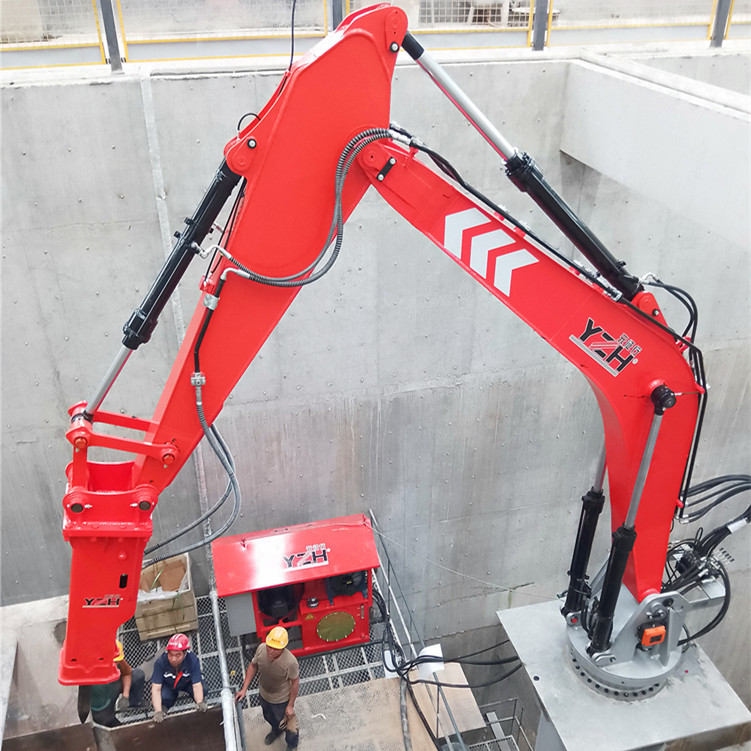

the stationaryPedestal Rockbreaker SystemConsists of the rotating upper part of the frame or a swivel console, lift boom, arm with a hydraulic hammer attached to it. the lower part of the frame is firmly fixed to a base. Power is supplied by a hydraulic unit. thePedestal Rockbreaker SystemIs used to break up and crush stone, ore, slag, concrete and other materials.

When excavating and processing rock, the primary stone crusher becomes blocked by larger pieces of boulders and it is precisely the rockbreaker boom system which solves the dangerous and laborious problem of clearing these boulders in the crusher. YZH Rockbreaker is also used during primary crushing on frames. The relevant parameters are chosen for the rockbreaker boom system depending on the given use: size and method, reaches, lifting capacity, the size of the hydraulic hammer and the output of the hydraulic unit.

Applications of Pedestal Rockbreaker System

YZH ROCKBREAKER SYSTEMS USES for PRIMARY JAW CRUSHERS and IMPACT CRUSHERS
Lighter types of pedestal rock breaker boom systems are used for primary jaw crushers or impact crushers, with smaller hydraulic hammers capable of breaking extremely hard and abrasive large rocks. the rockbreaker boom system is used to break up oversized pieces in the crusher or to free up the transport routes to the crusher.

YZH ROCKBREAKER SYSTEMS USES for PRIMARY GYRATORY CRUSHERS
Large and powerful hydraulic rockbreaker boom systems with large hammers constructed for continuous and heavy operation are intended for primary gyratory crushers. They are used to break up oversized pieces of crushed material or to free up caving (vaults) in the crusher.

YZH ROCKBREAKER SYSTEMS USES for MOBILE CRUSHER
in the case of mobile crushers small rockbreaker boom systems are used which are fitted directly to the structure of the mobile crusher.

YZH ROCKBREAKER SYSTEMS USES for CRUSHING on GRID (GRIZZLY)
for this type of crushing a rockbreaker boom system with a suitably massive structure and
