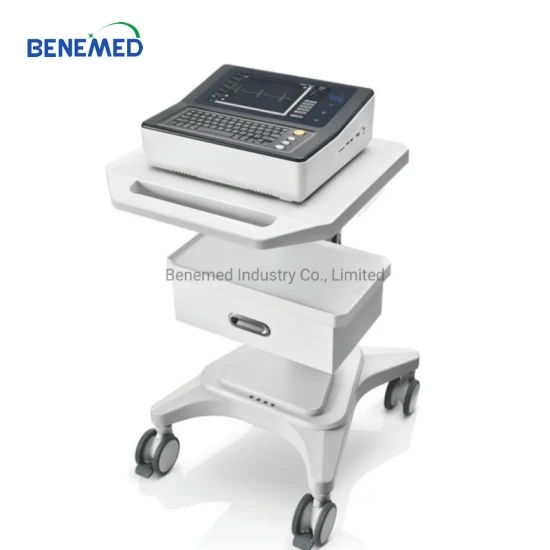

for Hospital Use Portable Digital Electrocardiograph 18 Channel ECG Machine
| FOB Price: | 300.00 - 1100.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Unit(s) per Month |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
Quick Details
- Brand Name: BENEMED
- Properties: Treatment Apparatus
- port: SHENZHEN
- sample: YES
- Power: 10.1 Inch (1024*600) Color TFT LCD
- Model Number: BM-ECG18
Specifications
Feature:

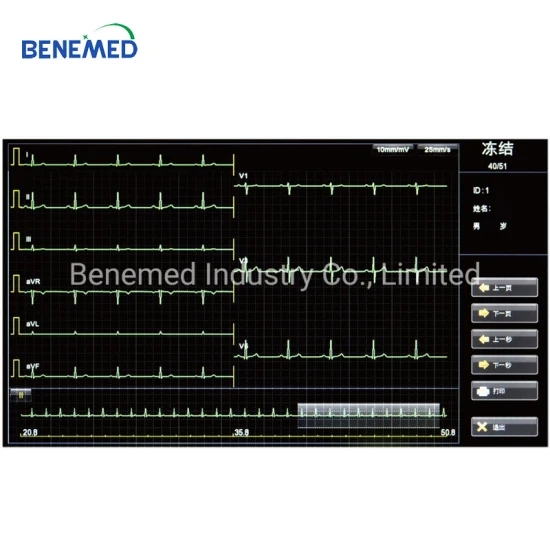

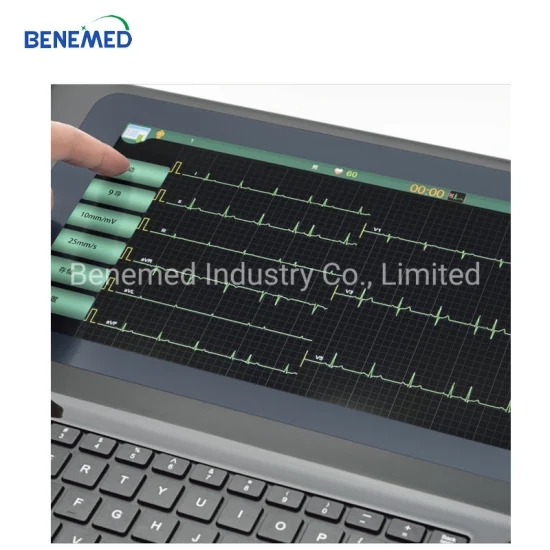

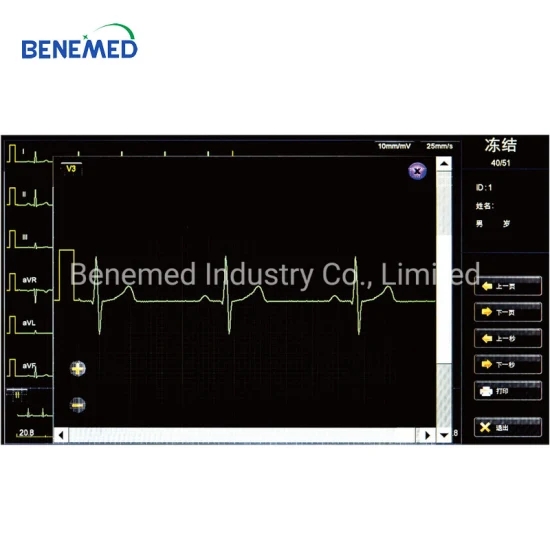

1.10.1 inch (1024*600) color TFT LCD with touch screen, Rapid preview of waveform before printing
2. ECG algorithm certified by AHA/MIT/CSE database & 30 year application,Particular ECG anlysis as per age difference
3. Data output in format of FDA-XML, DICOM,DAT, BMP, JPG, SCP
4. One touch operation via touvh screen or key strike

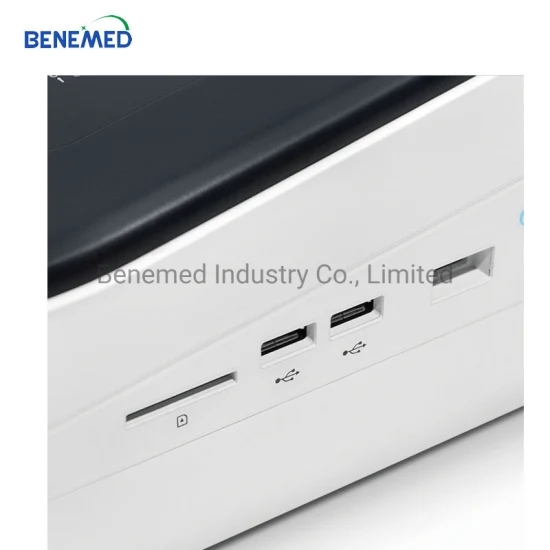

5. Compatible with external VGA, PC keyboard, mouse and bar code scanner
6. Simultaneous 18/15/12/9 acquisition

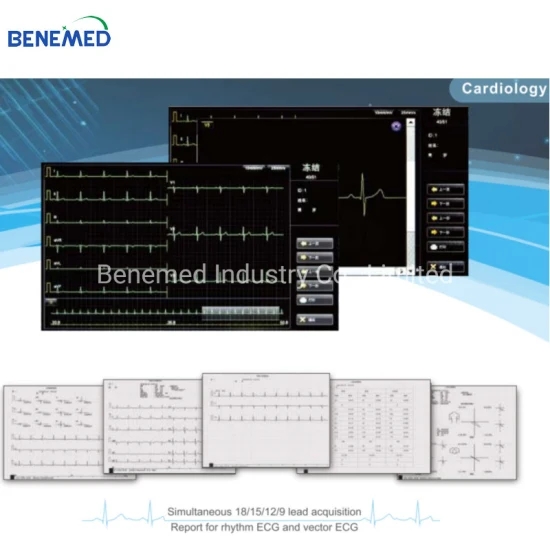

7. Report for rhythm ECG and vector ECG
8. Rapid & precise analysis for 18/15/12/9 lead ECG
Specification:
Lead: 9/13/15/18 leads simultaneous acquisition
Sampling Rate: 16000Hz/ channel/second
A/D Resolution: 24 bits
HR Constant: 30-300bpm
Time Constant: ≥3.2s
Polarizing Voltage: ±600mv
Input Impedance: ≥50 MΩ(10Hz)
Frequency Response: 0.01-300Hz
Noise Level: ≤12.5μV (p -p)
DFT Filter: 0.01/0.05/0.32/0.67 Hz
Pacemaker Detection: Amplitude:±750 μV-±700 mV, Width 50μs-2.0ms
Sampling Frequency:16000Hz
Power Supply: AC input with external power adaptor of 100-240v,50/60Hz
Rechargeanle Lithium battery (4400mAh) supporting 400 exams
Recording Speed: 5/6.25/10/12.5/25/50 mm/s
Recording Paper: Z-fold 210*295mm*100sheets
Roller type 210mm*20/30m
