30V 20A Laboratory Testing Mobile Phone Repairing Power DC Adjustable Switching Power Supply

FOB Price: 94.90 - 160.00 USD/Piece
Supply Ability: 50,000 Piece(s) per Month
Shipping: Shipping by sea, airplane, railway, International Express
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Carton Package

Quick Details

  • Output Voltage: 30V
  • Input Voltage: 220V
  • Output Type: Single
  • Output Power: >500W
  • Brand Name: MTKY
  • Output Current: 20A
  • Model Number: 3020KD

Specifications

30V 20A Laboratory Testing Mobile Phone Repairing Power DC Adjustable Switching Power Supply
Technical Parameters:

1. Input voltage: 220V±10% @50Hz±5Hz (110V±10% @60Hz)
2. Output voltage: DC 0-30V
3. Output current: DC 0-20A
4. Display accuracy: ±1%±1 word, voltage resolution 0.1V, current resolution 0.1A
5. Boot delay: 3-5S shutdown delay: 1-6S (depending on load)
6. Voltage stability: ≤0.2%
7. Current stability: ≤0.5%
8. Load stability: ≤0.5%
9. Ripple and noise: ≤1% (effective value)
10. Machine efficiency: ≥86% (tested under full load)
11. Working environment: -10 °C - +40 °C Relative humidity 20% -90% (non-condensing)
12. Storage environment: -20°C- +80°C Relative humidity 20%-80% (non-condensing)
13. Withstand voltage test: input-output: 1.5KVAC/1 minute
             Input - Housing: 1.5KVAC / 1 minute
             Output - Housing: 500VAC / 1 minute
14. Grounding resistance: <20mΩ
15. Appearance size: length 320mm* width 200mm* height 160mm

Model Output voltage Current output Display usage Measurement accuracy
1510KD 0-15V continuously adjustable 0-10A continuously adjustable LEDdigital display ±1%±1word
1520KD 0-15V continuously adjustable 0-20A continuously adjustable LEDdigital display ±1%±1word
1530KD 0-15V continuously adjustable 0-30A continuously adjustable LEDdigital display ±1%±1word
3020KD 0-30V continuously adjustable 0-20A continuously adjustable LEDdigital display ±1%±1word
3030KD 0-30V continuously adjustable 0-30A continuously adjustable LEDdigital display ±1%±1word
6010KD 0-60V continuously adjustable 0-10A continuously adjustable LEDdigital display ±1%±1word
6020KD 0-60V continuously adjustable 0-20A continuously adjustable LEDdigital display ±1%±1word
12002KD 0-120V continuously adjustable 0-2A continuously adjustable LEDdigital display ±1%±1word
12003KD 0-120V continuously adjustable 0-3A continuously adjustable LEDdigital display ±1%±1word
12005KD 0-120V continuously adjustable 0-5A continuously adjustable LEDdigital display ±1%±1word
15002KD 0-150V continuously adjustable 0-2A continuously adjustable LEDdigital display ±1%±1word
15003KD 0-150V continuously adjustable 0-3A continuously adjustable LEDdigital display ±1%±1word
15005KD 0-150V continuously adjustable 0-5A continuously adjustable LEDdigital display ±1%±1word
Features:

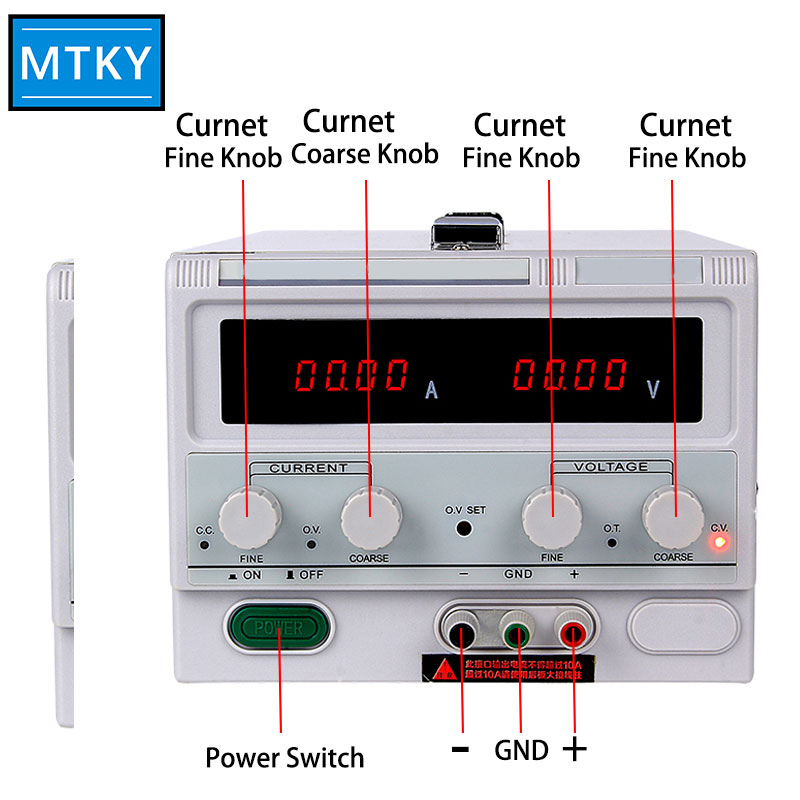

1. High-precision LED digital display, intuitive and clear.
2. 6 cm intelligent dual temperature control fan, excellent heat dissipation, effectively extend the life of the fan and reduce noise.
3. Using advanced technology, it effectively reduces the weight of the power supply and facilitates power supply movement.
4. Multiple protection functions, fixed overvoltage protection (OVP), current limit protection (OCP), over temperature protection (OTP), over power protection (OPP).
5. the voltage is adjusted by multi-turn potentiometer to make the output more accurate.

Application areas:
1. Charge the battery.
2. Car DVD, car audio.
3. Product aging, such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Electrolysis, electroplating, PCB manufacturing.
5. Laboratory, factory, maintenance power supply.
6. Everything else needs a DC regulated power supply.
