Dongguan Mengtai Instrument Co., Ltd.

China Manufacturer with main products: DC Power Supply, Sound Level Meter, Resistance Tester, Gloss Meter, Lcr Meter, Function Generator, Oscilloscope, Gas Detector

Home >Products Catalog > DC Switching Power Supply > 30V 60A High Power Regulated Adjustable LED Digital Display Variable Switching DC Power Supply

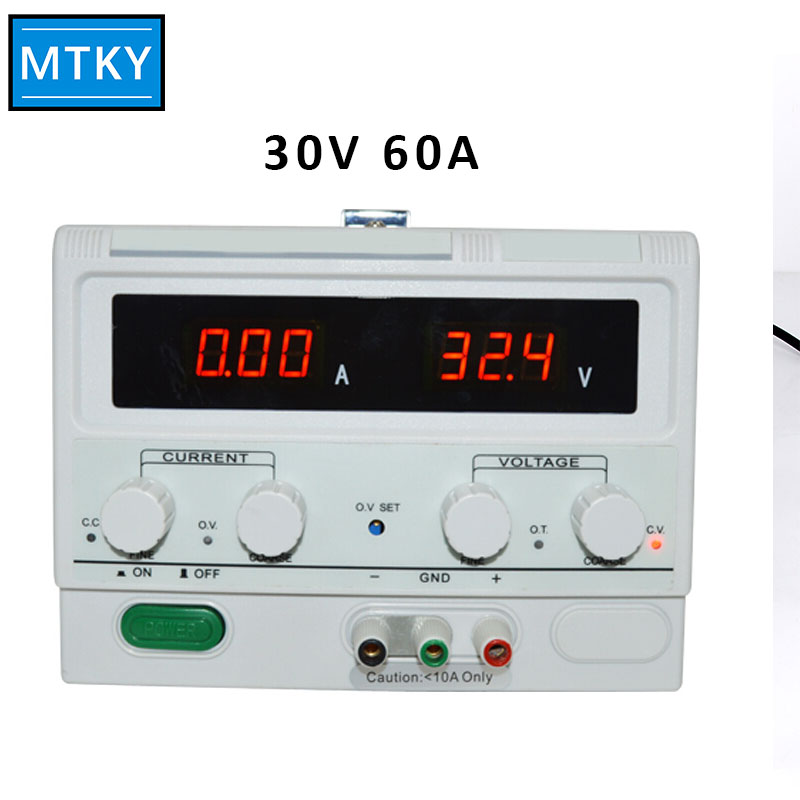

30V 60A High Power Regulated Adjustable LED Digital Display Variable Switching DC Power Supply

FOB Price:	288.00 - 488.00 USD/Piece
Supply Ability:	50,000 Piece(s) per Month
Shipping:	Shipping by sea, airplane, railway, International Express
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

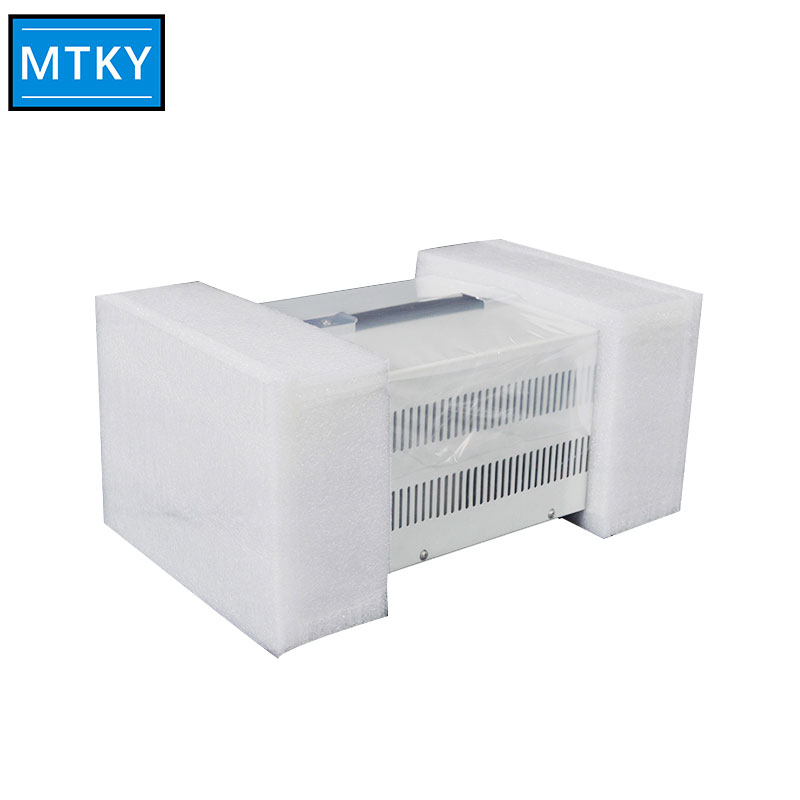

Packaging Details:	Carton Package

Quick Details

Output Voltage: 30V
Input Voltage: 220V
Output Type: Single
Output Power: >500W
Brand Name: MTKY
Output Current: 60A
Model Number: 3060KD

Specifications

30V 60A High Power Regulated Adjustable LED Digital Display Variable Switching DC Power Supply
Specifications:

Model No: 3060KD

Input voltage: single-phase 220V 50Hz or 110V60Hz

Working conditions: -10℃ -40℃Relative humidity:< 90%

Storage conditions: -20℃-80℃ relative humidity:< 80%

Output voltage: 0-30V

Output current: 0-60A

Display Accuracy: ±1%±1 digit

: ≤0.2%

Current stabilization: ≤0.5%

Load stabilization: ≤0.3%

Ripples and noises: ≤1 %( RMS)

cold-start)

Input Leakage Current: <0.7mA/230V

Withstanding voltage test:

from input voltage to output voltage: 1.5KVAC/min

from input voltage to case: 1.5KVAC/min

from output voltage to case: 500VAC/min 30V 60A High Power Regulated Adjustable LED Digital Display Variable Switching DC Power Supply

APplications:

1. Charge batteries, PCB board manufacturing industry

2. LED products, motors and DC fans test,

3. Electrofacing, electrolyzation, electronic components ageing

4. Laboratory, Electronic equipment, Automatic Test Equipment

5. All other occasions need to use DC Power Supply

PRotection function:

1. over voltage protection

2. OVer load protection

3. OVer temperature protection(threshold value:70℃ -75℃)

4. CUrrent limitation protection

FeAtures:

1. SIngle phase, single output DC power supply

2. COnstant voltage and constant current operation (C.C and C.V. Automatic conversion)

3. BOth current and voltage can be adjusted from 0 to rated value

4. 3LED digital display

5. Built-in EMI filter.(have anti-interference circuit)

6. INtelligent temperature control fan to help power supply cooling fast
