Home >Products Catalog > LCR Meter > 100Hz-10KHz High Precision Digital LCR Bridge Tester Inductance Capacitance Resistance LCR Meter

100Hz-10KHz High Precision Digital LCR Bridge Tester Inductance Capacitance Resistance LCR Meter

Supply Ability:	50,000 Piece(s) per Month
Shipping:	Shipping by sea, airplane, railway, International Express
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Carton Package

Quick Details

Brand Name: MTKY
color: White
Theory: Inductance Capacitance Resistance
Resolution: 0.0001
Size: 265*265*100mm
Model Number: LCR5010

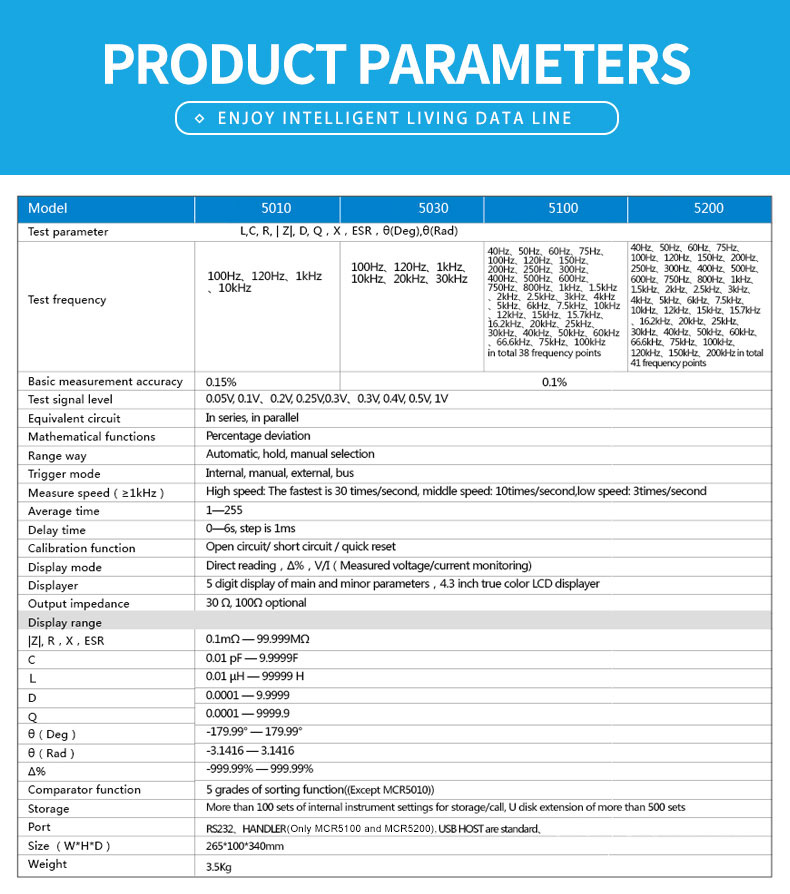

Specifications

100Hz-10KHz High precision Digital LCR bridge tester Inductance Capacitance Resistance LCR Meter

Test parameters	L,C, R, \| Z\|, D, Q,X,ESR,θ(Deg),θ(Rad)
Test frequency	40Hz,50Hz,60Hz,75Hz,100Hz,120Hz,150Hz,200Hz,250Hz,300Hz,400Hz, 500Hz,600Hz,750Hz,800Hz,1kHz,1.5kHz, 60kHz,66.6kHz,75kHz,100kHz,120kHz,150kHz,200kHz, Total 41 point 2kHz,2.5kHz,3kHz,4kHz,5kHz,6kHz,7.5kHz,10kHz,12kHz,15kHz,15.7kHz, 16.2kHz,20kHz,25kHz,30kHz,40kHz,50kHz,
Basic measurement accuracy	0.10%
Test signal level	0.1V,0.3V,0.5V,1V
Equivalent Circuit	Series Parallel
Mathematical function	Percent deviation
Range mode	Automatic, hold, manual selection
Trigger mode	Internal, manual, external, bus
Measuring speed (≥1kHz)	Fast: 30 times/second fastest, medium speed: 10 times/second,
	Slow speed: 3 times / sec
Average number of times	1-255
Delay time	06s, stepped in 1ms
Calibration function	Open / short circuit / fast clear
Display method	Direct reading, %, V/I (measured voltage/current monitoring)
Monitor	Main and auxiliary parameters 5-digit display, 4.3-inch true color LCD display
Output impedance	30 Ω, 100Ω selectable
Display range
\|Z\|, R,X,ESR	0.1mΩ 99.999MΩ
C	0.01 pF 9.9999F
L	0.01 H 99999 H
D	0.0001 9.9999
Q	0.0001 9999.9
(Deg)	-179.99° 179.99°
(Rad)	-3.1416 3.1416
%	-999.99% 999.99%
Comparator function	5-speed sorting function
Memory	More than 100 sets of internal instrument settings for storage/call, U disk expansion of more than 500 groups

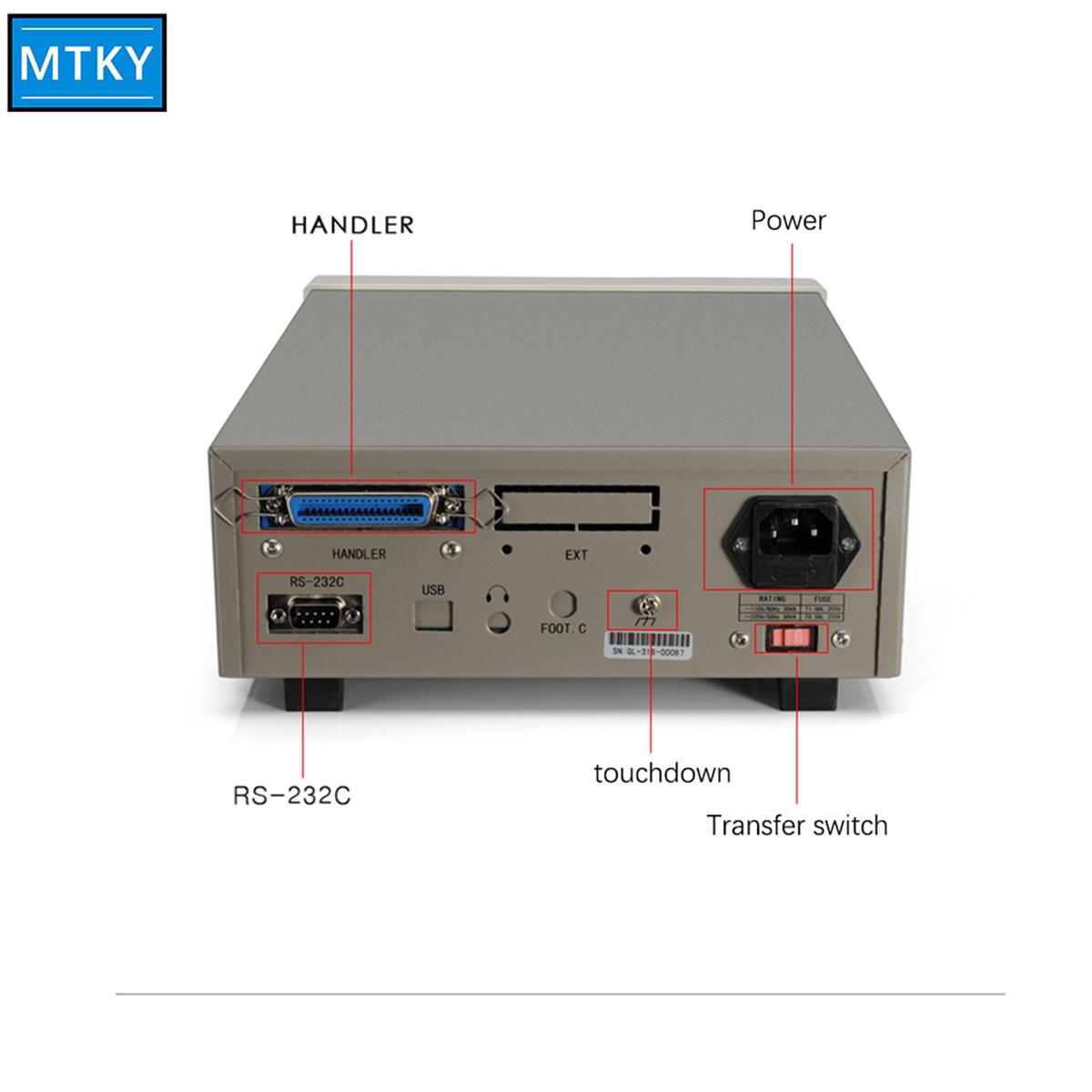

Interface	Standard RS232C, HANDLER, USB HOST
	Optional USB DEVICE, headphone jack, pedal interface, GPIB

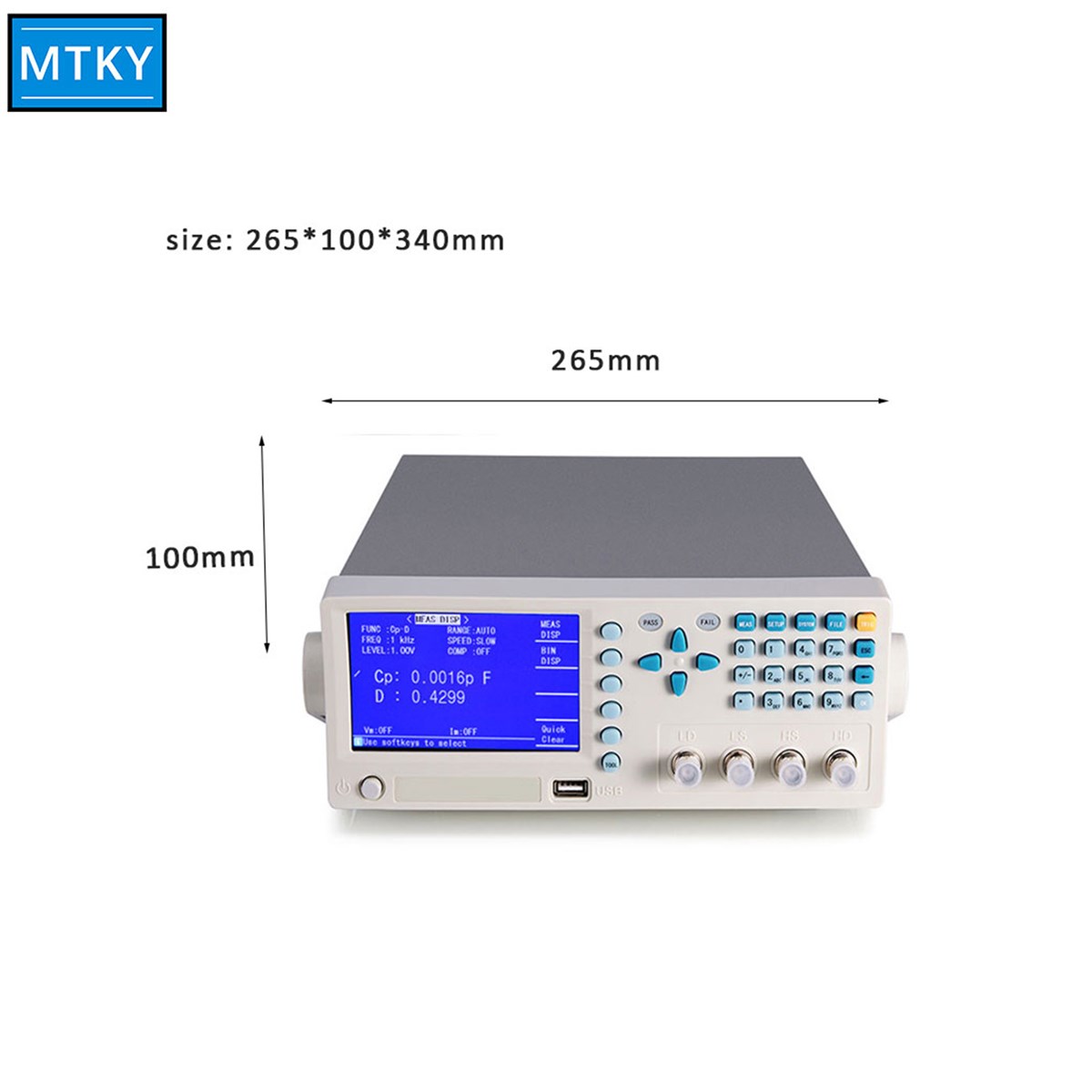

size	265mm (width) * 100mm (height) * 340mm (long)

Features:

* the new 32-bit core processor, the data is completely compared with foreign first-class equipment

* 4.3 inch true color TFT display

* 30Ω, 100Ω output impedance of two different signal sources

* Built-in comparator, 5-level sorting with flexible qualified and bad alarm modes

* Automatically save test conditions after shutdown, user-friendly operation

* More than 100 sets of internal setting files, multiple sets of test files saved by U disk can be saved or recalled

* Simplified Chinese, English optional

* the instrument software version can be upgraded and updated through U disk

* U disk copy screen function, test data saving function, can support format FAT16, FAT32 file system

* Standard RS232C, HANDLER, USB HOST; optional: USB DEVICE \ headphone jack, foot jack, GPIB 100Hz10KHz High precision Digital LCR bridge tester Inductance Capacitance Resistance LCR Meter
