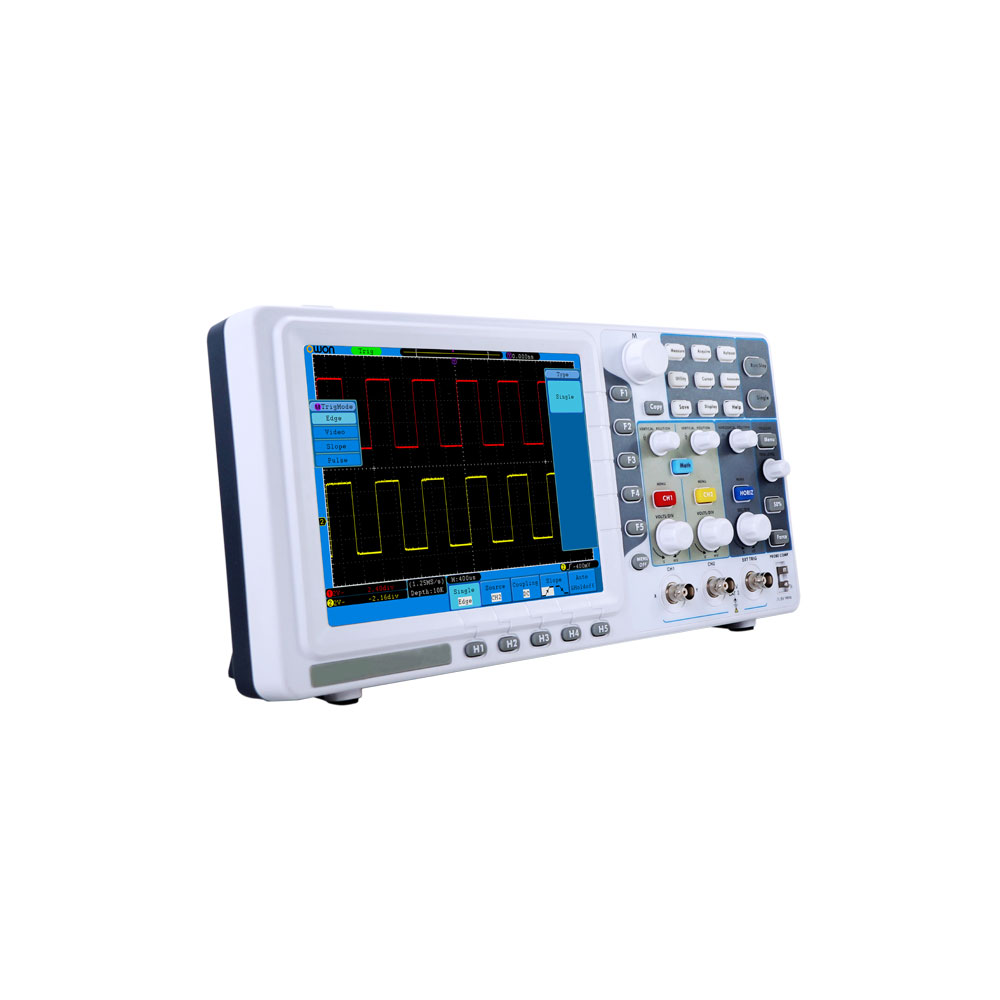

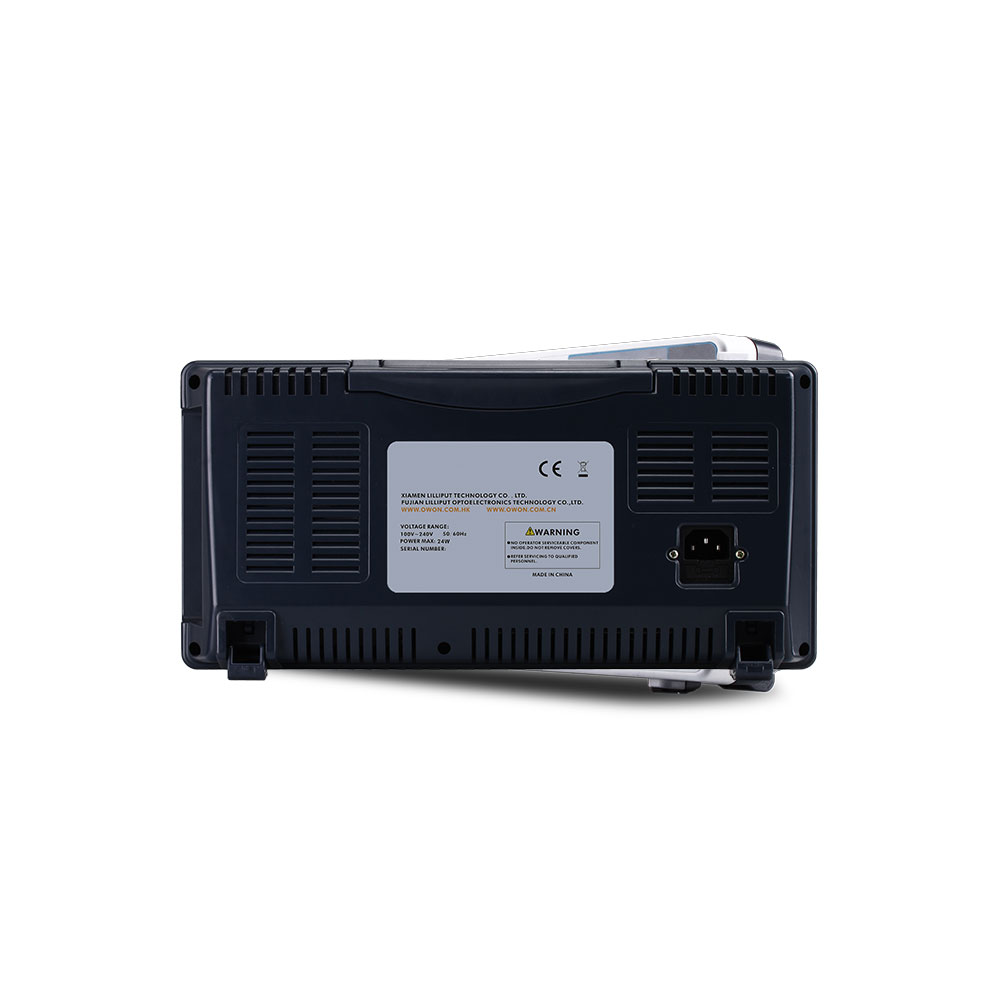

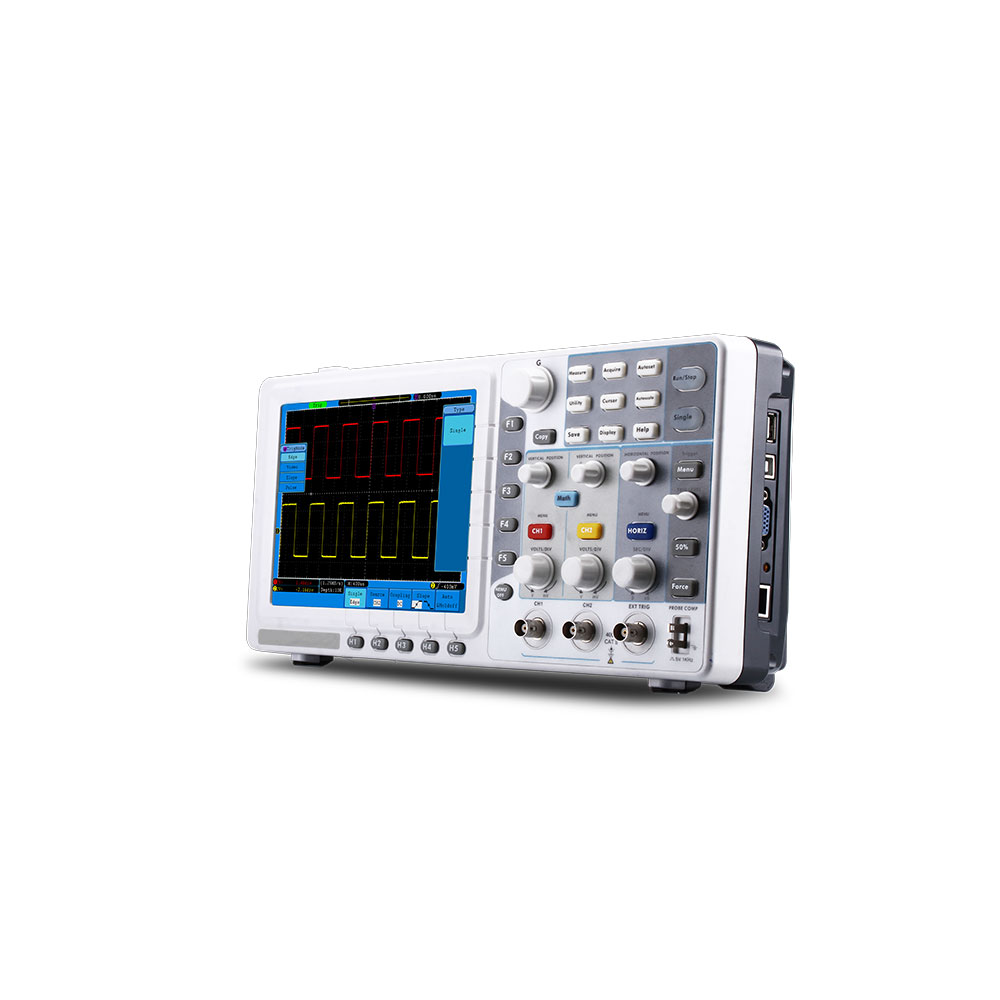

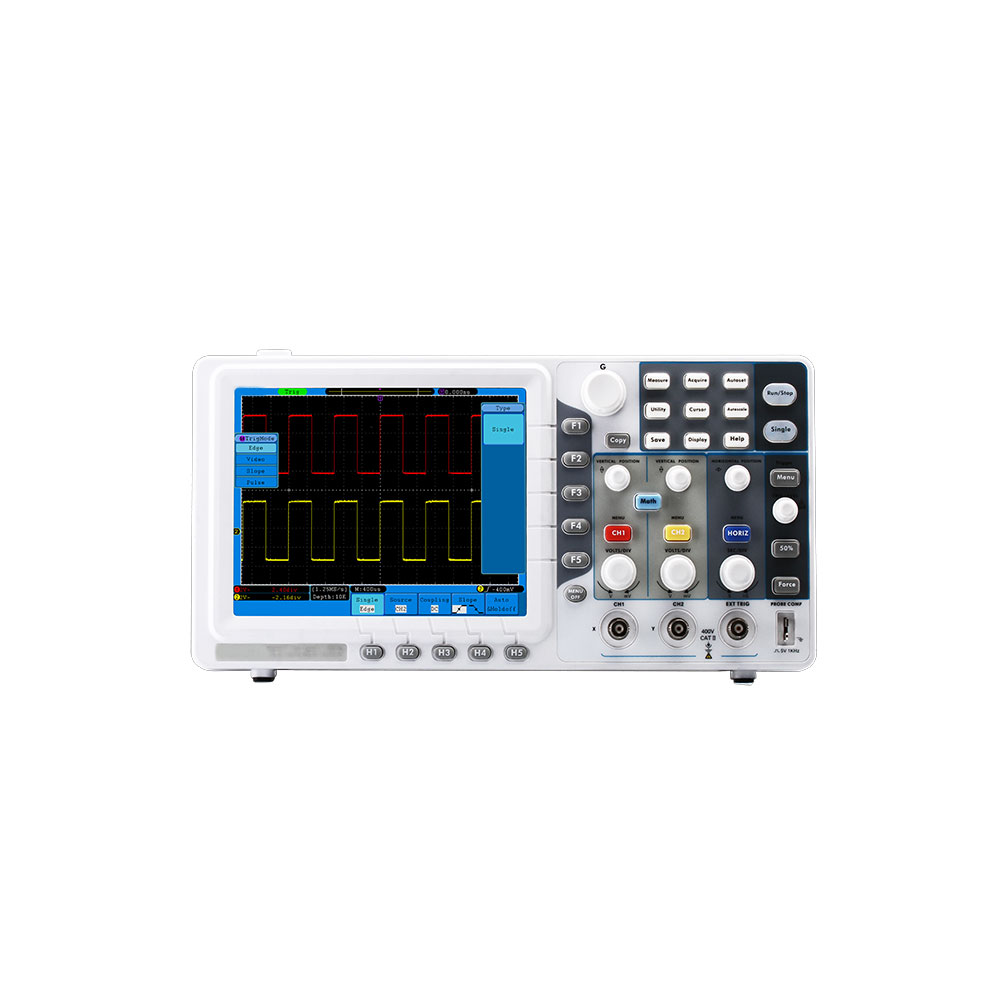

2 Channels 50MHz 8 Inches TFT High Resolution LCD Display Digital Oscilloscope

FOB Price:	999.00 - 1999.00 USD/Unit
Supply Ability:	50,000 Unit(s) per Month
Shipping:	Shipping by sea, airplane, railway, International Express
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Brand Name: MTKY
Capture rate: n/a
Memory depth: 10K
Sampling rate: 500MS/s
Oscilloscope bandwidth: 50MHz
Model Number: SDS5052E

Specifications

2 Channels 50MHz 8 Inches TFT High Resolution LCD Display Digital Oscilloscope
8 inches (800 x 600) TFT high resolution LCD display much detail. Horizontal 15 divisions and vertical 10 divisions, perfect than same level product.

Model	SDS5032E	SDS5052E	SDS6062E	SDS7072E	SDS7102E	SDS7122E
Bandwidth	30MHz	50MHz	60MHz	70MHz	100MHz	125MHz
Sample Rate (real time)	500MS/s			1GS/s
Horizontal Scale (s/div)	5ns/div~100s/div, step by 1~2~5			2ns/div~100s/div,
				Step by 1~2~5
Channel	2 + 1 (external)
Display	8" color LCD, 800 600 pixels
Record Length	10K		1M	1M (optional 10M)
Vertical Resolution (A/D)	8 bits (2 Channels simultaneously)
Vertical Sensitivity	5mV/div~5V/div (at input)		2mV/div~10V/div (at input)
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Trigger Mode	Auto, Normal, and Single
Waveform Math	+, -,,, invert, FFT
Communication Interface	USB host, USB device, Pass / Fail, LAN, and VGA (optional)
Battery	Not supported
Dimension (WHD)	348 170 78 (mm)
Weight (without package)	1.50 kg
