Monocrystalline Diamond (MONO) Wire Drawing Dies

FOB Price:	5.00 - 15.00 USD/Piece
Payment Terms:	D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Size: Customized
Type: Abrasive Disc
Brand Name: IW
Material: MONO Diamond
Grit: MONO

Specifications

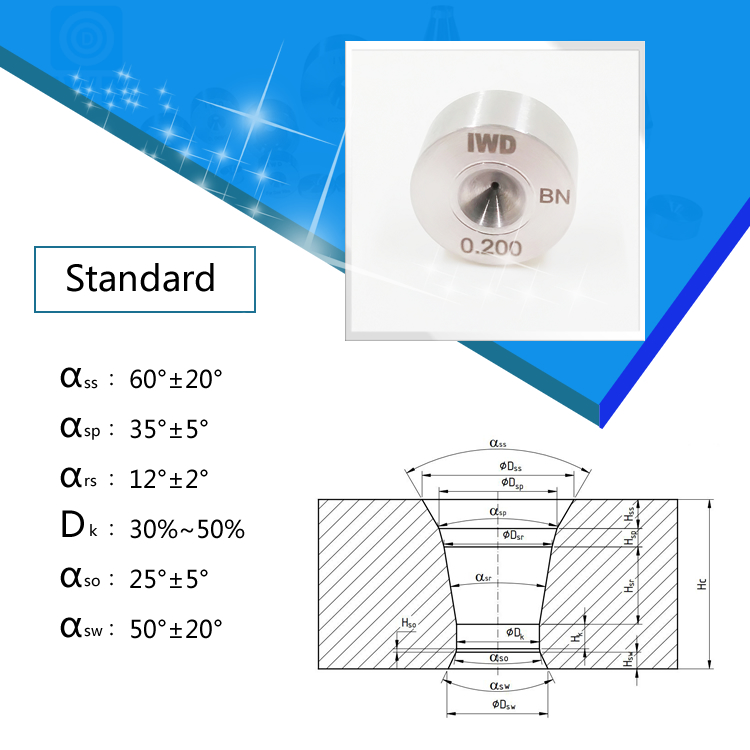

Monocrystalline Diamond MONO Wire Drawing Dies

Monocrystalline Diamond (MONO) Wire Drawing Dies

Product Name	MONO Diamond Dies; MONO Diamond Drawing Dies; MONO Wire Dies; MONO Drawing Dies; Monocrystalline diamond drawing dies
Hole Sizes	0.008-1.500(mm)
Applications	Used in fine and ultrafine wire sizes, or as finishing dies when wire surface quality is critical. Tungsten wire, plated-copper wire, stainless steel wire and precious metals.
Advantages	MONO wire drawing die is made of high quality die core,which has the advantages of uniform texture,strong wear resistance,high finish, high precision and long service life.
Monocrystalline diamond (mono) is a kind of synthetic diamond under controlled conditions.It has the characteristics of high purity,no impurity and no crack.It can ensure the surface finish and accuracy of wire rod and the production range of die inner diameter in the long drawing process0.008mm-1.5mm.

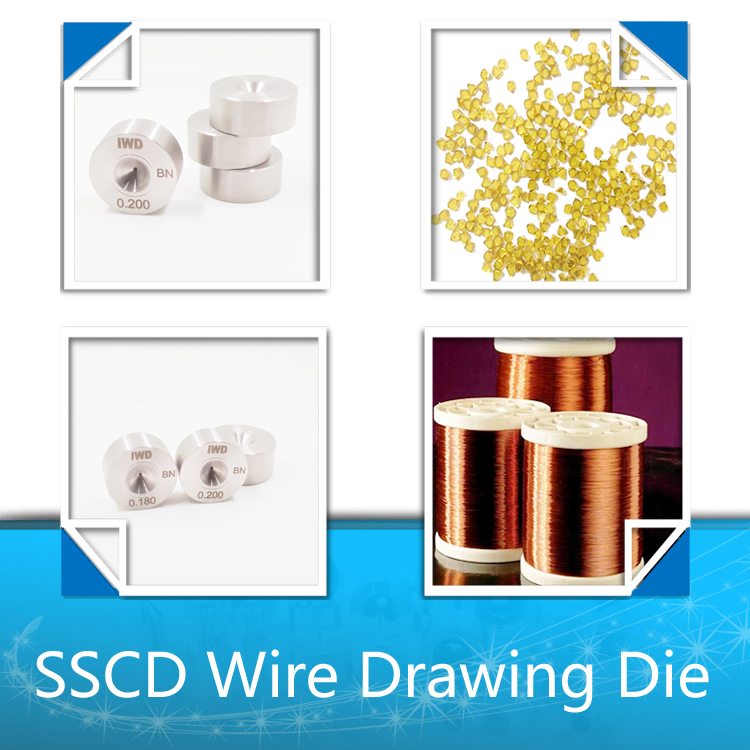

SSCD Wire Drawing Dies

Synthetic Single crystal diamond (SSCD) is a kind of synthetic diamond with high purity,no impurity and high stability.these quality characteristics also make the material have high hardness and stable wear resistance.

Synthetic single crystal diamond has very similar physical characteristics to natural diamond,so it can be used in all occasions where natural diamond mould can be used.
these quality characteristics also make the service life of the wire drawing dies more stable and predictable.
the advantage of this is that the diamond has a more consistent hole size than the natural diamond wire drawing dies.
most of the synthetic single crystal diamond drawing dies are LB type diamonds,which also contain nitrogen impurities,but exist in the form of dispersive substitution.

Single crystal diamond has excellent heat dissipation performance,which can be used in high temperature processing technology.
