Dongguan Mengtai Instrument Co., Ltd.
China Manufacturer with main products: DC Power Supply, Sound Level Meter, Resistance Tester, Gloss Meter, Lcr Meter, Function Generator, Oscilloscope, Gas Detector |
Home
>Products Catalog > Electric Tester > 600V/40A Power Meter Three Phase Intelligent Electric Quantity Tester Electricity Meter

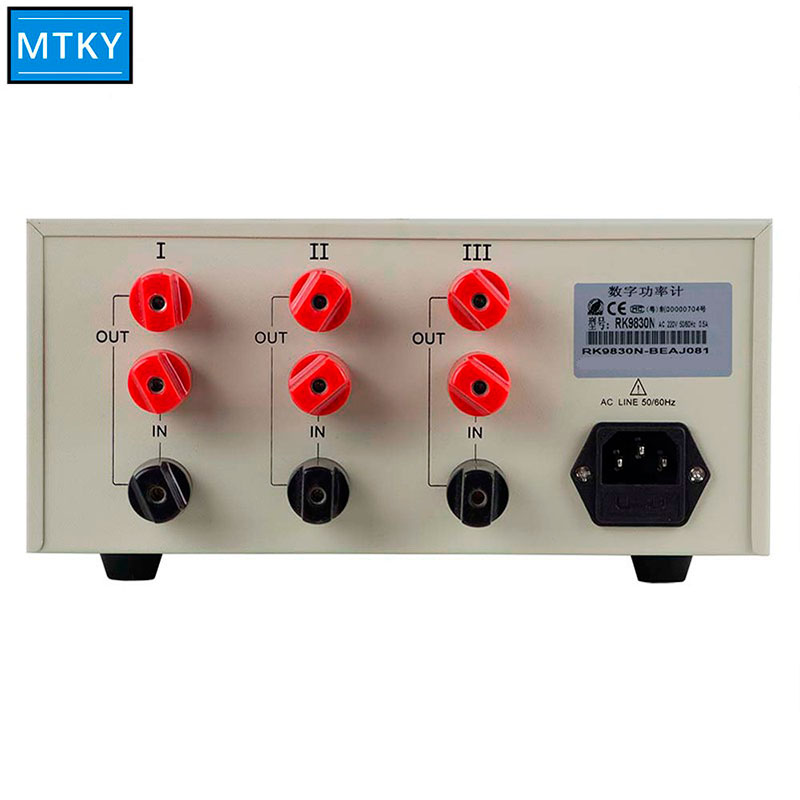

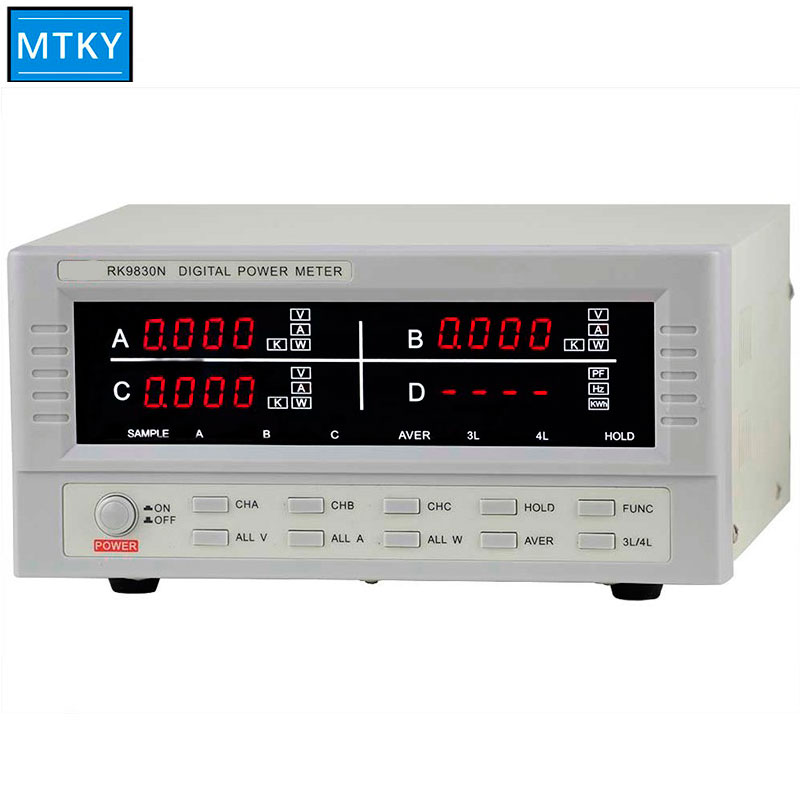

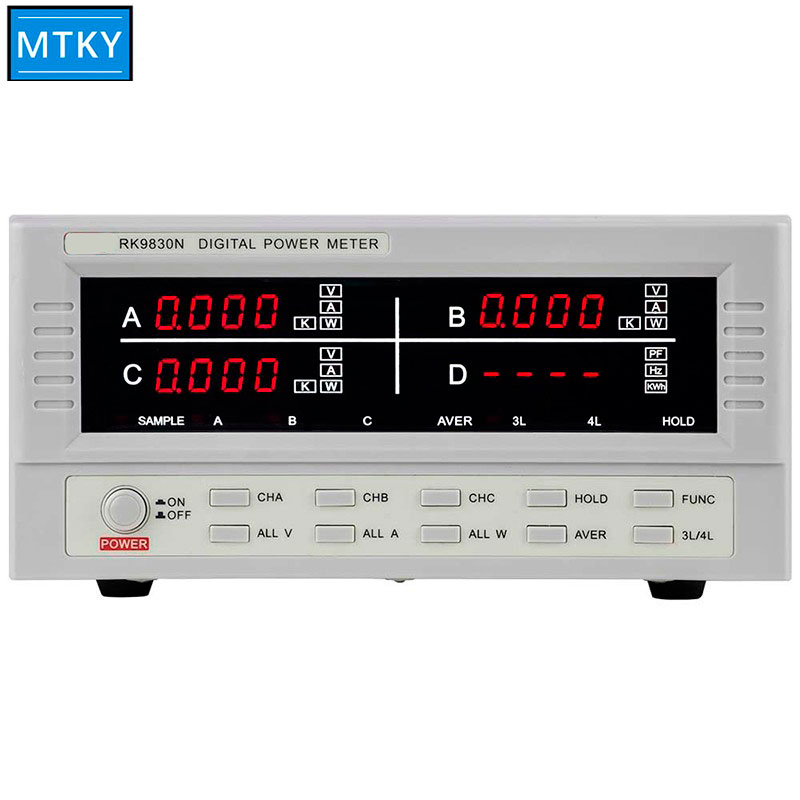

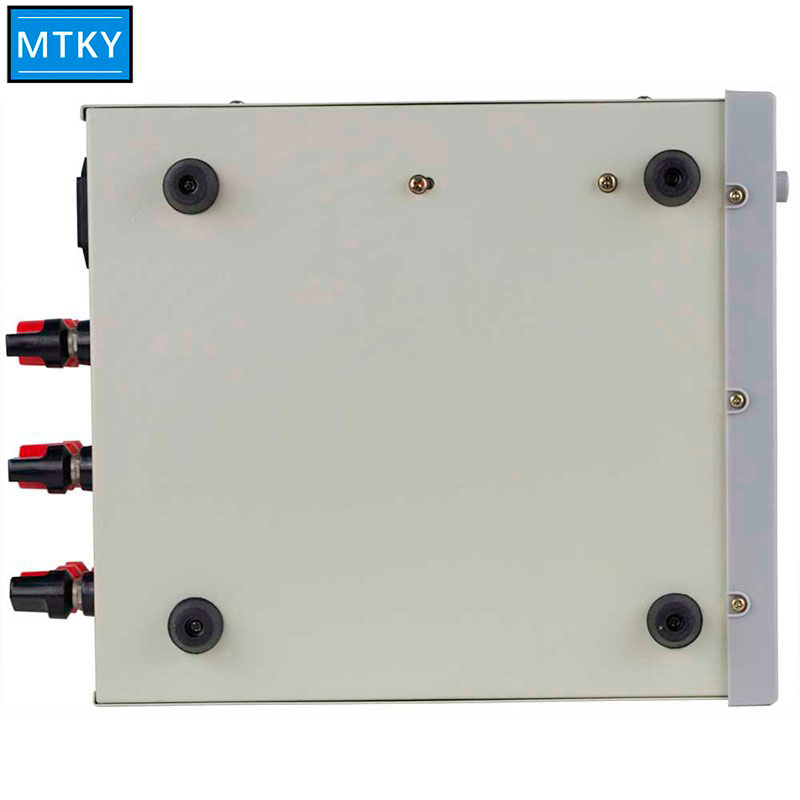

600V/40A Power Meter Three Phase Intelligent Electric Quantity Tester Electricity Meter
| FOB Price: | 619.00 - 799.00 USD/Unit |
|---|---|
| Supply Ability: | 50,000 Unit(s) per Month |
| Shipping: | Shipping by sea, airplane, railway, International Express |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Dimensions: 330*870*110mm
- Operating Temperature: 0-40
- Measuring Voltage Range: 0-600V
- Measuring Current Range: 0-40A
- Brand Name: MTKY
- Model Number: 9830N
Specifications
Product Introduction
RK9830N Series Intelligent Electric Quantity Measuring Instrument(Digital Power Meter), Can Measure the Voltage,Current,Power,Power Factor,Frequency,Electric Energy and Other Parameters of,Rich In Content,Has A Wide Measuring Range, The Preset Alarm,Latches and Communications Function.
Application Area
Motor:rotary Motor
Household Electric Appliances:TV,Refrigerator,Air Conditioner,Washing Machine,Dryer, Electric Blanket,Charger Etc.
Electric Appliances:electric Drill,Pistol Drill,Cutting Machine,Grinding Machine,Electric Welding Machine Etc.
Lighting Appliances:ballast,Road Lights,Stage Lights,Portable Lamps and Other Types of Lamps.
Power Supply:switching Power Supply,AC Power Supply,DC Regulated Power Supply,Variable-Frequency Power Sources,Communication Power Supply,Power Components and So On.
Transformer:power Transformer,Audio Transformer,Pulse Transformer,Switching Power Supply Transformer, Etc.
Performance Characteristics
High Measurement Accuracy,Wide Range,Fast Speed.
Can Be Shown the Voltage,Current and Power of A Certain One Phase In Three-Phase,It Can Also Show the Voltage,Current and Power of Three-Phase,It Is Flexible Operation.
with Work(Energy) Display Function(the Energy Value Has the Function of Saving Power Automatically).
with Communication Function,All Parameters of the Three Phases Are Displayed On the Screen of the PC Machine,the Display Parameters Are More Complete and Intuitive.
Power off Memory Function,It Can Be Memory the Setting Data Before the Power off.
with Keeping Data Function,Make Observing and Recording Is More Convenient.
with the Function of Electric Energy Clearing,It Is Convenient for Electric Energy Measurement.
Compact Appearance,Easy to Operate and Carry.
| Model | 9830N |
| Output Voltage(V) | 0~600V |
| Output Current(A) | 0~40A |
| Power(P) | Single-Phase 024KW Three-Phase 041.5KW |
| Power Factor( PF) | -1.000+1.000 |
| Frequency Range (Hz) | 4565Hz |
| Cumulative Range of Electric Energy | 01000KW/H |
| Accuracy | ±0.4% Numerical Reading ±0.1% Range±1 Word |
| Power Requirments | 220V±10%,50Hz±5% |
| Work Environment | 0℃~40℃≤85%RH |
| Exterior Dimension | 330x270x110mm |
| Weight | 2.5kg |
| Accessory | Power Line |
