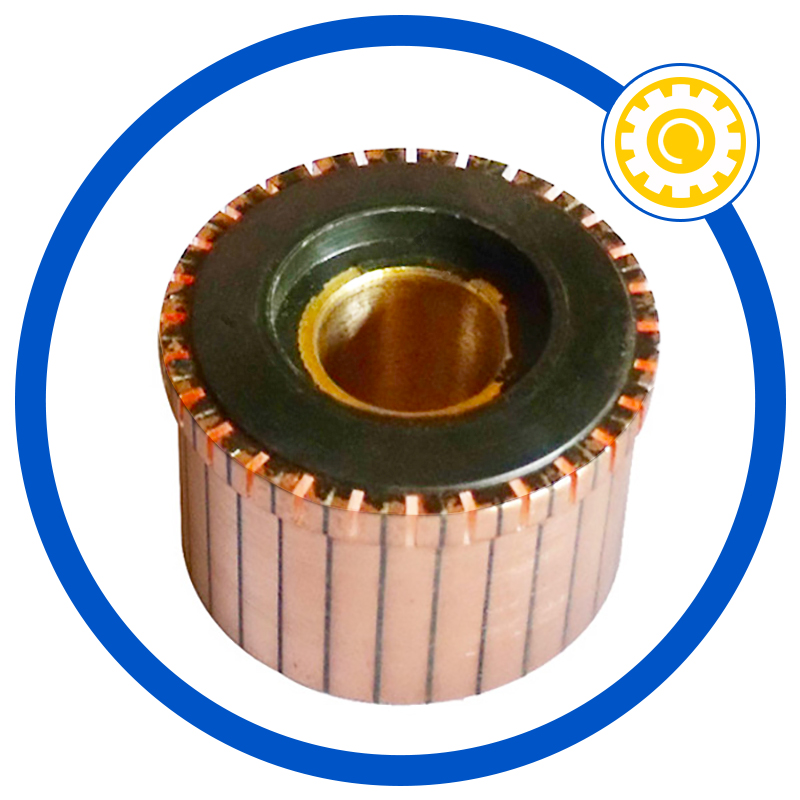

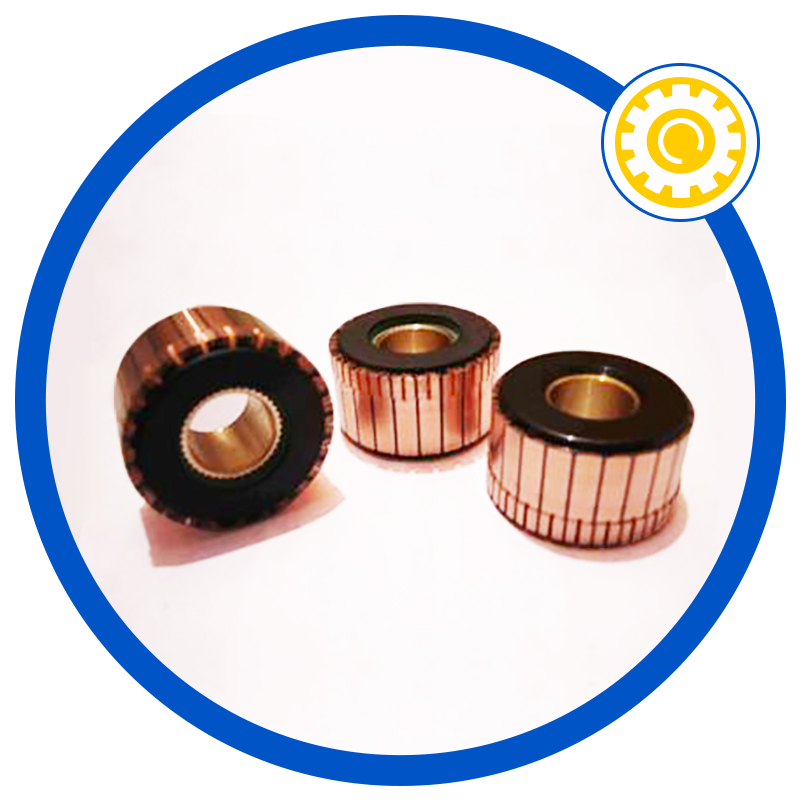

Quality Segment Commutator with Reinforced Ring & Brass Bush For Power Tools Motor
FOB Price: | 0.50 - 2.50 USD/Piece |
---|---|
Supply Ability: | 100,000 Piece(s) per Week |
Shipping: | FOB NINGB 45DAYS |
Payment Terms: | T/T |
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Zhejiang in China |
Packaging Details: | 1000PCS/CTN WOODEN CARTON |
Quick Details
- Type: Commutator
- Brand Name: ORIENTAL
- raw material: Silver Copper/Brass Bush
- Certification: TS16949
- PROCESS: Moulding
Specifications
the Segment type commutators are applied in home electrical appliance,such as mixer,cutter,sander,power tools etc.
Welcome inquiry for more spec:
Materials: 0.03% Silver copper, Resin.
Model | Bars | O.D(D) | I.D(d) | Copper Height(L1) | Total Height(L) | Hook Dia/(D1) | Hook length(L2) |
QD146 | 8 | 15.2 | 5 | / | 17.4 | 20 | / |
QD139 | 10 | 17.8 | 9 | / | 16 | 23.8 | / |
1. Molded resin has smooth surface, must be free from dented, cracks or any other flaw.
2. Spin test:, 27000r/min at 180C for 60 second, radial movement <0.012, bar to bar <0.005.
3. High voltage test: bar to shaft at 1500V for 30 second, bar to bar at 550V for 1 s.
4. Insulation test at 500V, 50MΩ Min
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 2mm to OD 250mm. Customized commutator is available.
7. Application: automotive industry, power tools, home electronic appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type
Materials | 0.03% or 0.08% sliver copper or customized |
Dimension | Customized |
Commutator type | Hook type/Shell type |
Application | Apply to automotive industry, power tools, household appliances, and other motors |
Package | Carton and wooden carton for sea/air transportation |
Production capacity | 5000000pcs/month |
