Universal Wireless LCD Display Button Battery Cars Trucks TPMS Vehicle Wireless Tire Pressure Monitoring System Stable

Specifications

Universal Wireless LCD Display Button Battery Cars Trucks TPMS Vehicle Wireless Tire Pressure Monitoring System Stable Monitoring

Description
DC8VDC30V Universal Car Truck TPMS Automotive Wireless Tire Pressure Monitoring

System + 6 wheel tires external sensor color LCD battery

Replaceable amplified signal

Product Features:
1. External sensors, special design, can support 6 tires;
2. Display shows tire pressure and temperature of 6 tires recursively;
3. External antenna, to enhance signal reception, supply power through the ignitor on the load or lithium battery

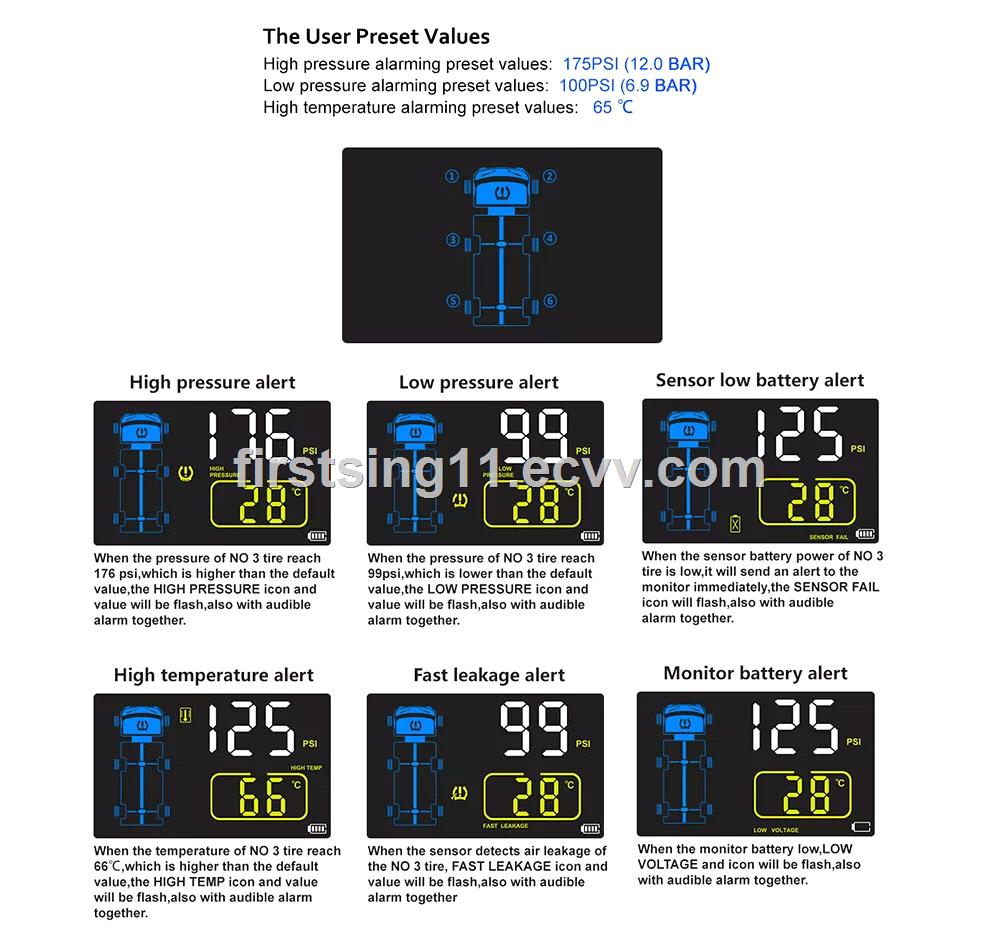

4. When the tire pressure and temperature exceed the standard setting, a beep will alert and there will be a splash screen
5. PSI, bar two kinds of pressure block optional, ℃ and ℉ two kinds of temperature block for choice
6. Each sensor has a separate identification code, was matched before delivery, direct installation, can be put into use immediately, no need to adjust the dynamic balance, simple and save time and cost
7. TPMS is designed for Freescale chip, high quality batteries, power, more accurate monitoring data, real-time tire monitoring to protect driving safety
8. the sensor will update the data within 5 minutes, when the tire is normal, there will be a beep and flash screen for 3 seconds when the tire pressure and temperature are abnormal
9. Monitor tire pressure in real time, balance tire pressure, reduce tire wear, save fuel, extend tire life, improve car driving stability to avoid road accidents.

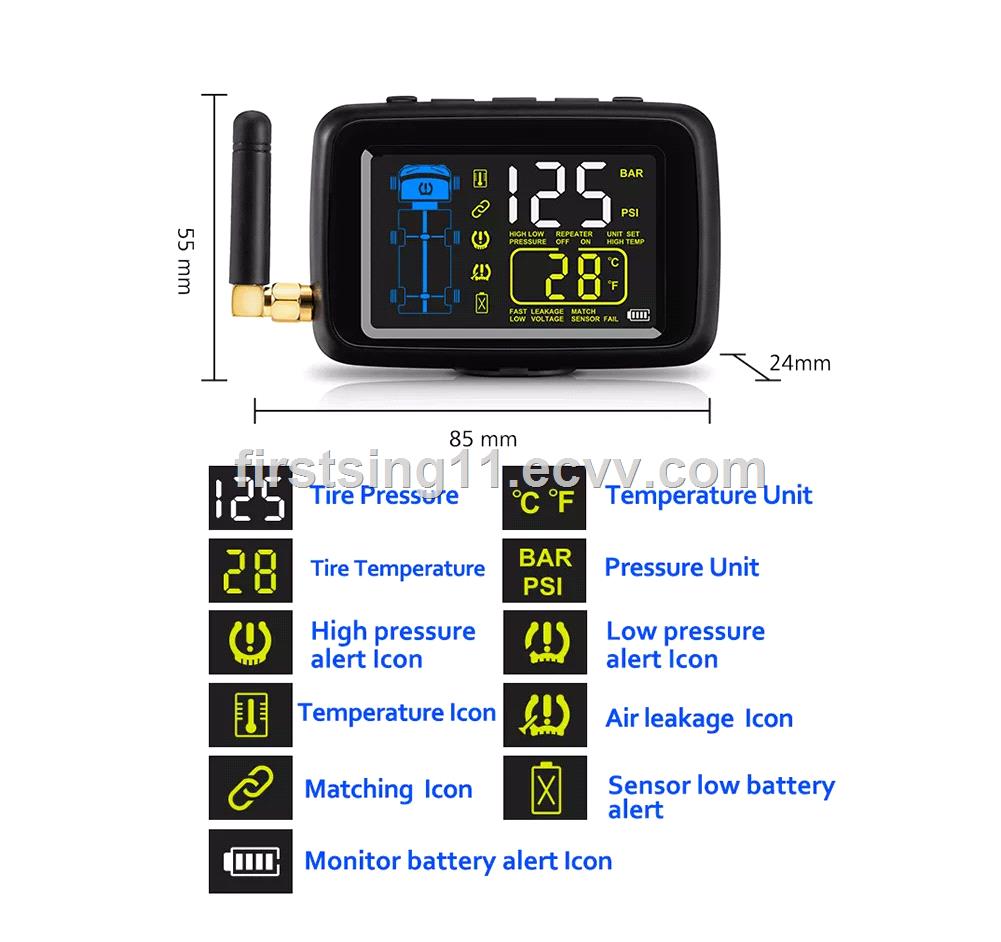

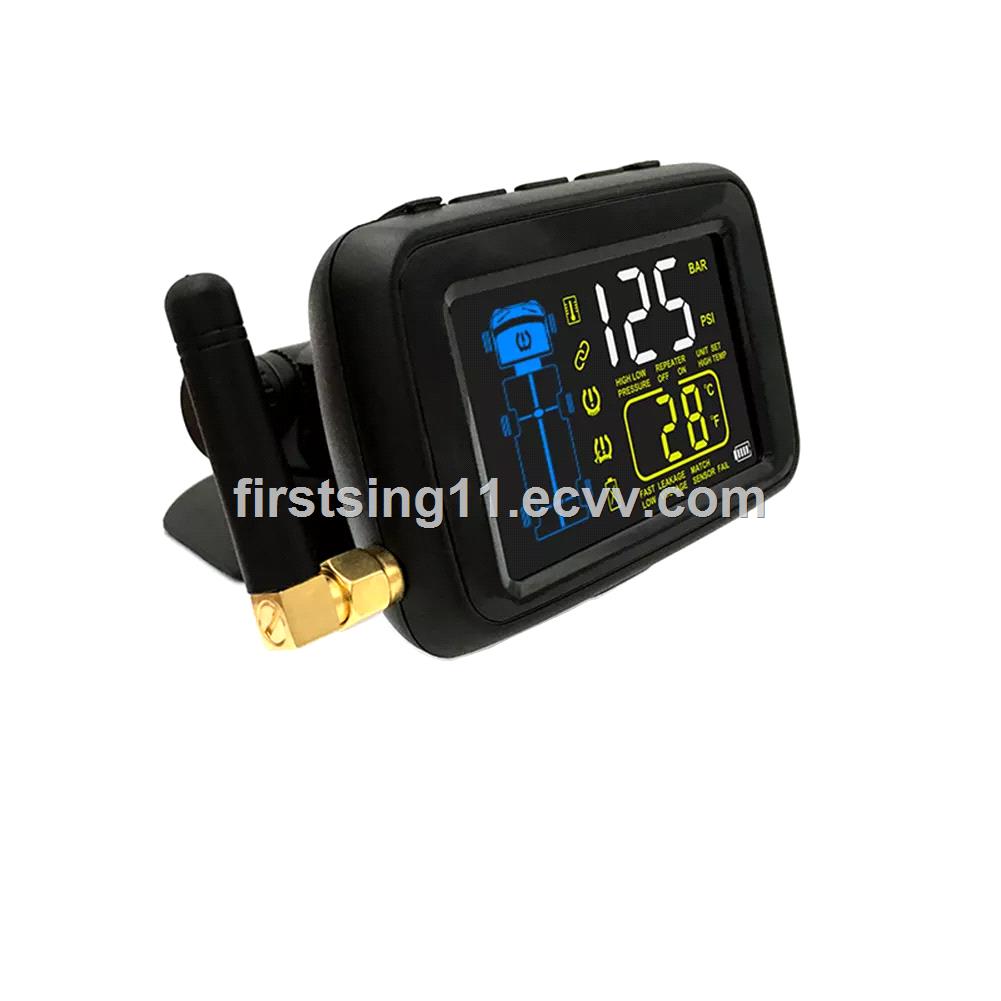

Display parameters:
1. Receiving frequency: 433.92 MHz
2. Display size: 86 * 57 * 26mm / 3.39 * 2.24 * 1.02in
3. Weight: 96g (without bracket)
4. Display color: color LCD
5. Display type: display recycling
6. Power: DC8V-DC30V
7. Battery capacity: 1400mAh / 3V
8. Working temperature range: -20 ℃ -80 ℃
9. Storage temperature range: -30 ℃ -85 ℃
10.High temperature alarm: 65 ℃
11. Fixing way: bracket

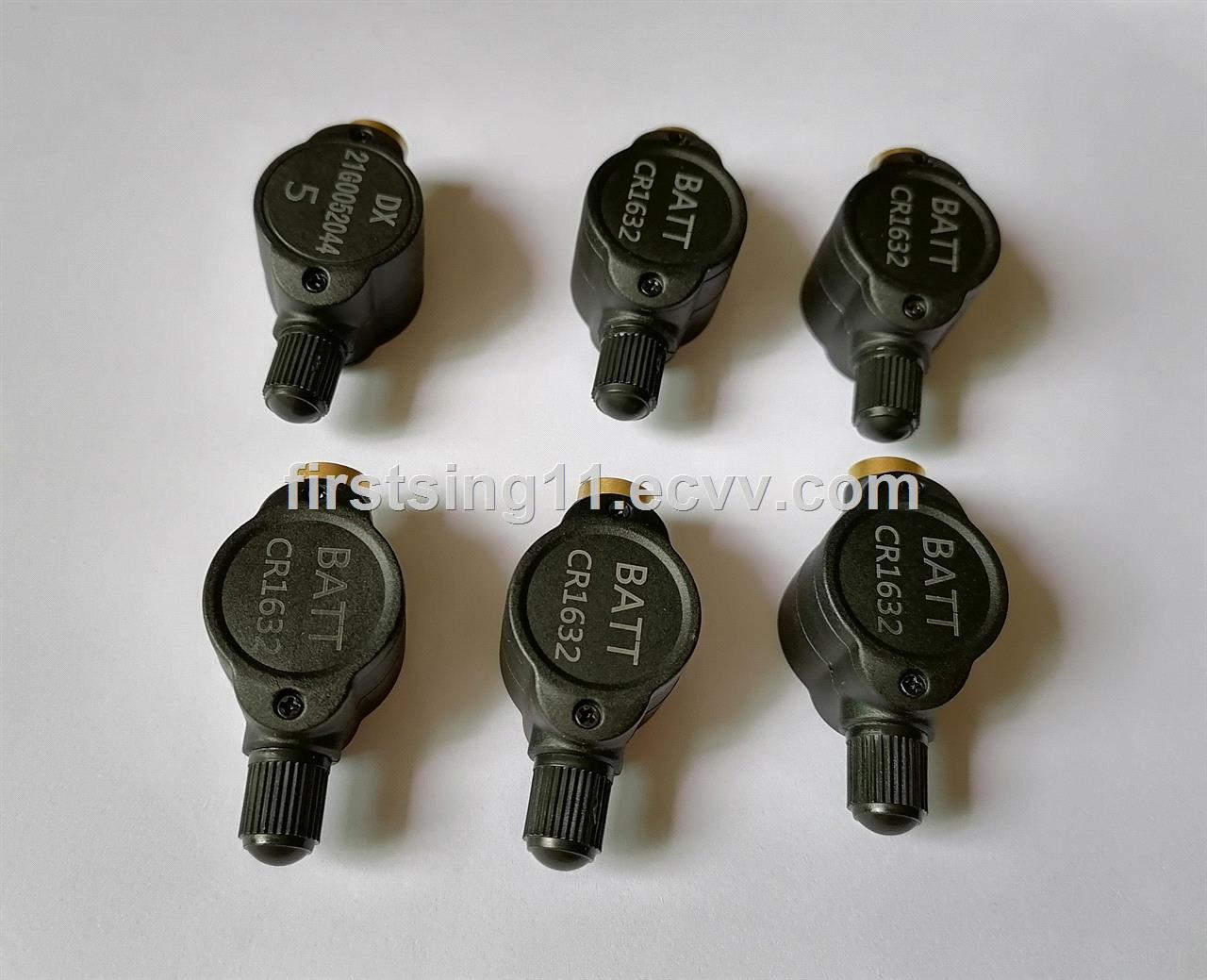

Sensor parameters:
1. Transmission frequency: 433.92 ± 38 MHz
2. Pressure measuring range: 0-14bar (0-203psi)
Max Ultimate Tire Pressure: 12.0Bar (175PSI)
Lower tire pressure limit: 6.9 bar (100PSI)
3. Accuracy of pressure measurement: ± 0.1 bar
4. Temperature measurement range: -40 ℃ ~ 125 ℃
5. Temperature measurement accuracy: ± 3 ℃ @ -20 ℃ ~ 50 ℃
6. Working temperature range: -20 ℃ ~ 100 ℃
7. Storage temperature range: -40 ℃ ~ 125 ℃
8. Sensor weight: <18.5g
9. Sensor size: 26.5 * 28.5mm / 1.04 * 1.12in
10. Battery type: CR1632 / 120mAh

Instructions for use:
1. First turn on the display,
2. Turn on the display,
3, then install the sensors one at a time.

Package:
1 * TPMS Display
6 * Tire Pressure Monitoring System Gauges
6 * Anti-theft nut
1 * Power cable
1 * wrench
1 * open end wrench
1 * antenna
SKU:FS9100926
