Heavy Duty 220/60 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel Factory

FOB Price: 560000.00 - 890000.00 USD/Set
Supply Ability: 5,000 Set(s) per Year
Shipping: Ocean shipping
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: Export Standard Wooden Box

Quick Details

  • Feature: Bridge Crane
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE ISO EAC
  • Condition: New
  • Feature: Metallurgy crane
  • Model Number: YZS
  • Brand Name: Kuangyuan
  • Span: 7m-31.5m
  • Max. Lifting Height: 30m
  • Max. Lifting Load: 220/60 Ton
  • Rated Lifting Moment: 2200KN
  • Rated Loading Capacity: 220 Ton
  • Application: steel mill
  • Name: Metallurgy crane
  • Lifting mechanism: Open winch trolley
  • Soft start: 3-5 speeds to operate
  • Material: Q235 & Q345
  • Protection class: IP54
  • Color: Customized
  • Voltage: Customized
  • Warranty: 1 year
  • Working duty: M7~M8 (ISO)
  • Standard: DIN/FEM/GB

Specifications

Heavy Duty 220/60 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel Factory

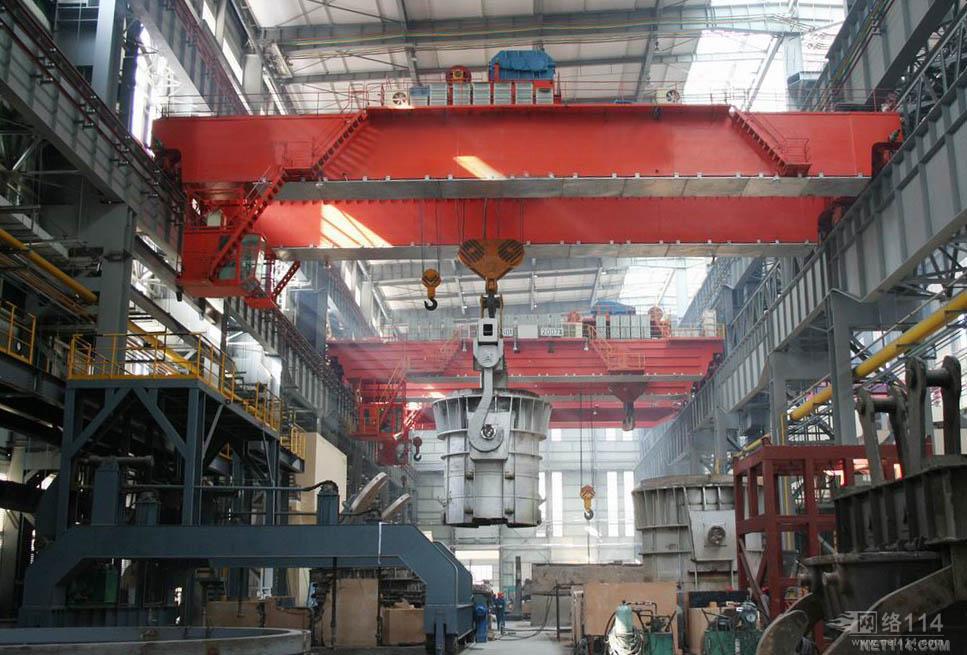

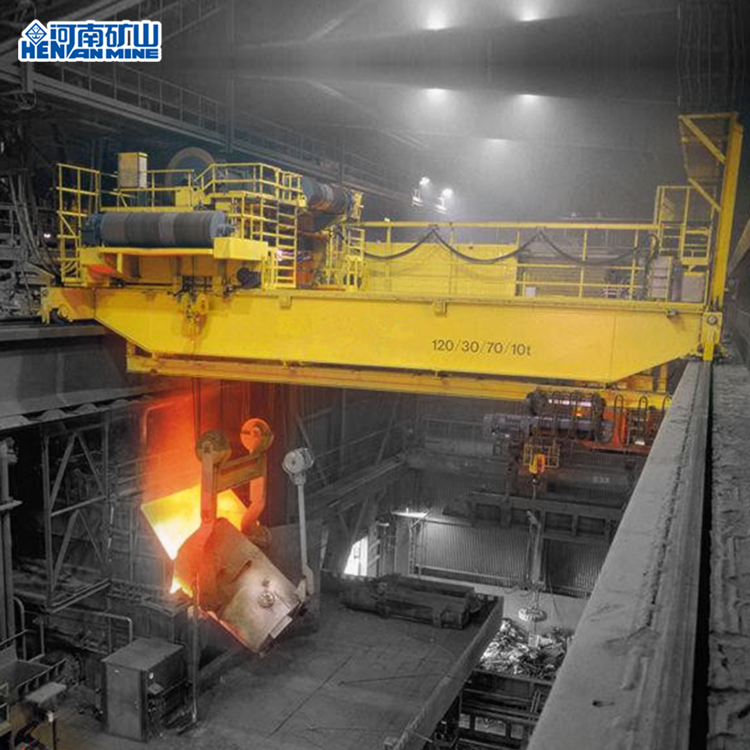

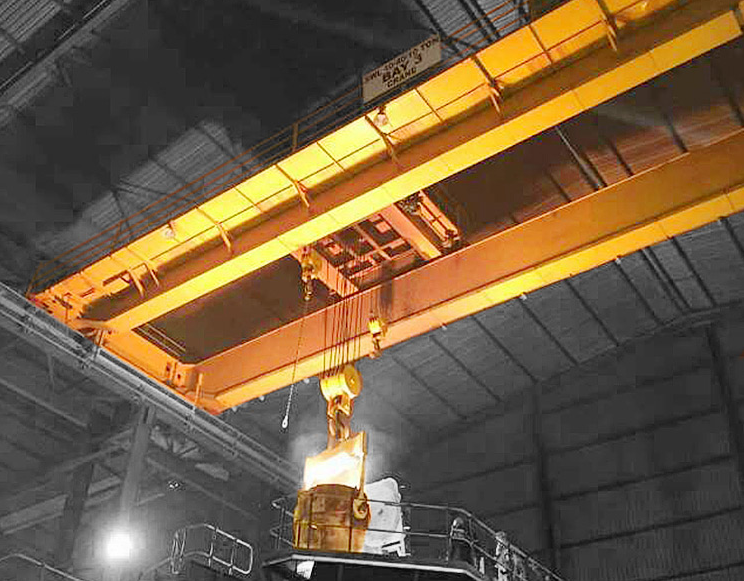

YZS Four Girder Ladle crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. the main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting. Also we can choose the suitable speed under the customer requirement.The main structure of four beam foundry crane is designed with 4 girders and 6 rails. The highlights of this crane are integral processing technology and secondary assembly technology. for the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams; and the secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision. The two-times assembly technologies could maximally ensure the precision of gauge, diagonal and span, as well as users' site installation.during manufacture and installation, we have obtained valuable experiences to lay the foundation for manufacturing crane with more technology and complex structure.
Heavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel Factory
Main Features:
1.Heavy Duty and High Efficient;
2.Suitable for High Temperature, heat insulation layer on girder bottom;
3.Long Life Span: 30-50years;
4.Motor insulation:H class;
5.Gantry type hook for lifting ladle;
Heavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel Factory6.the speeds are frequency inverter speed control; PLC is adopted.
7.Control method is cabin control; with Camera on supervision and touch screen.
8.Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
9.Protection: IP55.
Heavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel FactoryHeavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel FactoryHeavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel FactoryHeavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel FactoryHeavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel FactoryHeavy Duty 22060 Ton Four Beam YZS Model Electric Overhead Traveling Charging Crane for Steel Factory
