Home >Products Catalog > Heavy Duty 10+10 Ton Double Girder Rotation Hanging Beam Magnetic Electric Overhead Traveling Crane

Heavy Duty 10+10 Ton Double Girder Rotation Hanging Beam Magnetic Electric Overhead Traveling Crane

FOB Price:	56930.00 - 215630.00 USD/Set
Supply Ability:	50,000 Set(s) per Year
Shipping:	Ocean shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Export standard wooden box packing

Quick Details

Feature: Bridge Crane
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE ISO EAC
Condition: New
Feature: High efficient
Model Number: QL
Brand Name: Kuangyuan
Span: 7m-31.5m
Max. Lifting Height: 30m
Max. Lifting Load: 20ton
Rated Lifting Moment: 200KN
Rated Loading Capacity: 20 ton
Application: steel mill
Name: Electromagnet overhead crane
Lifting mechanism: Open winch trolley
Soft start: 3-5 speeds to operate
Material: Q235 & Q345
Protection class: IP54
Color: Customized
Voltage Electrical parts: Customized
Warranty: 1 year
Main bodyTraveling motor: Box type
Standard: DIN/FEM/GB

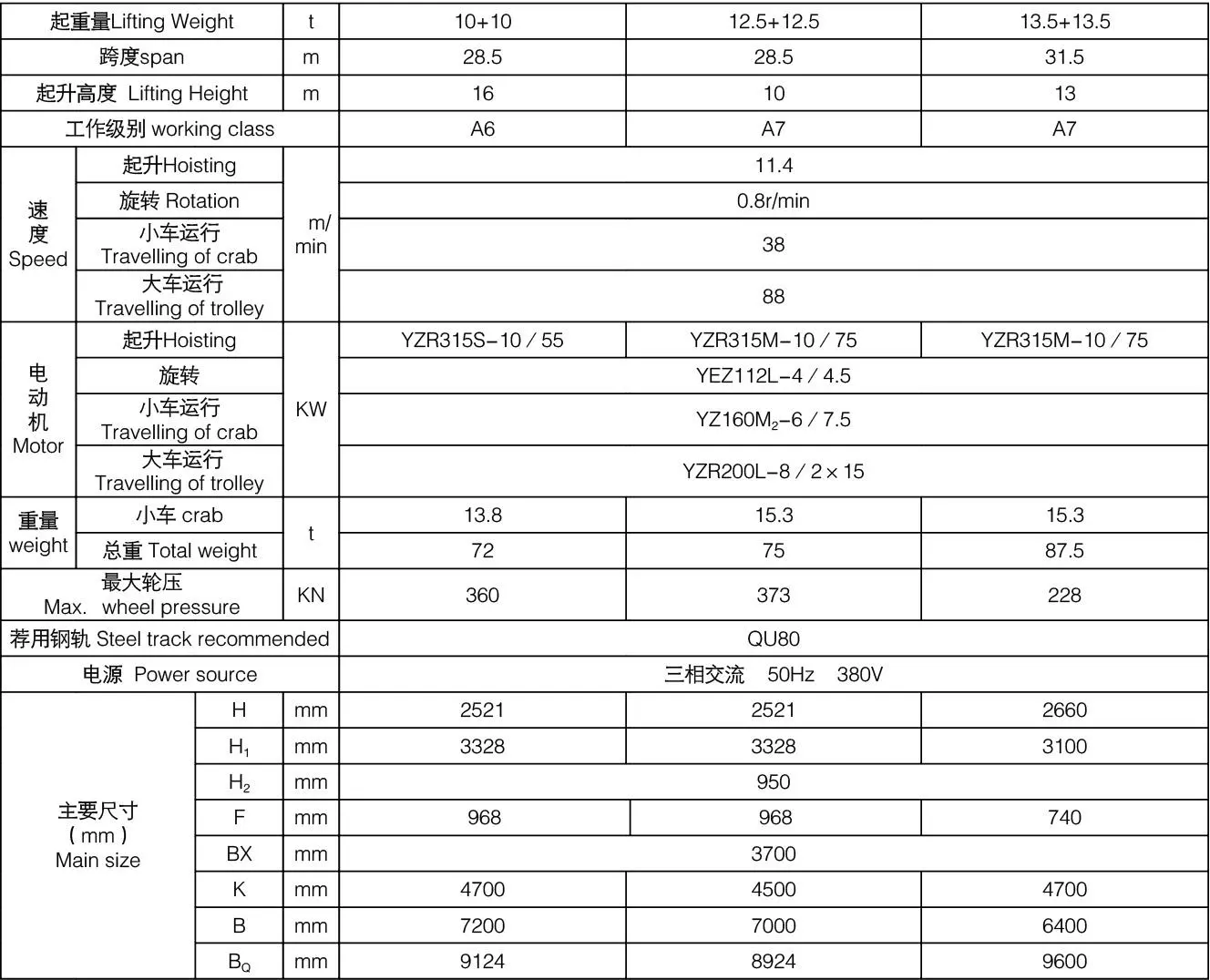

Specifications

QC Type Electromagnetic Overhead Traveling 16 Ton Bridge Crane Price

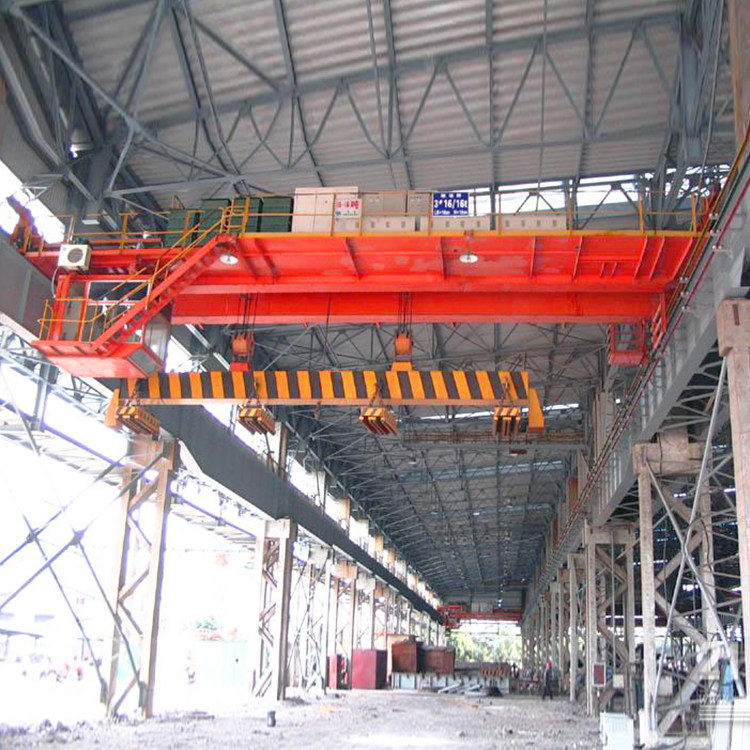

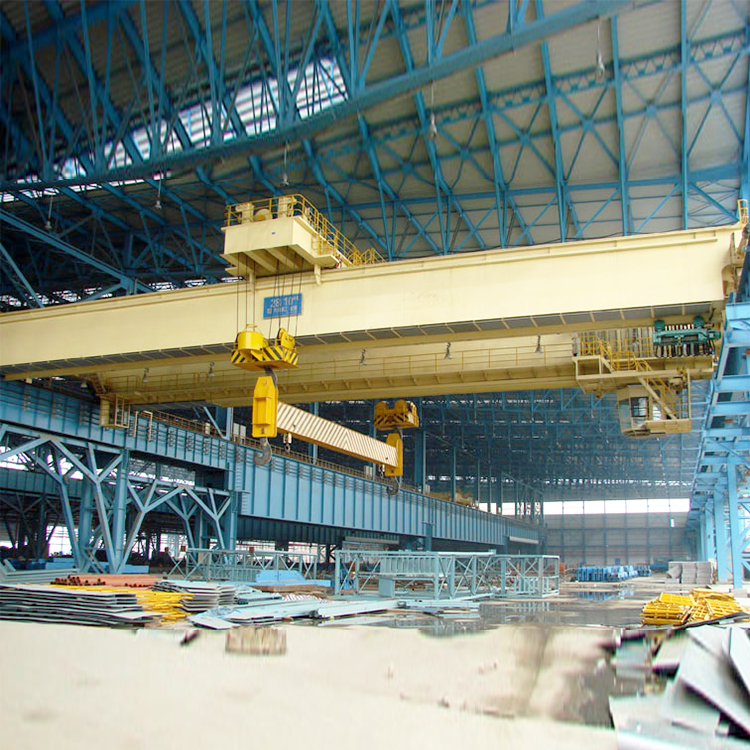

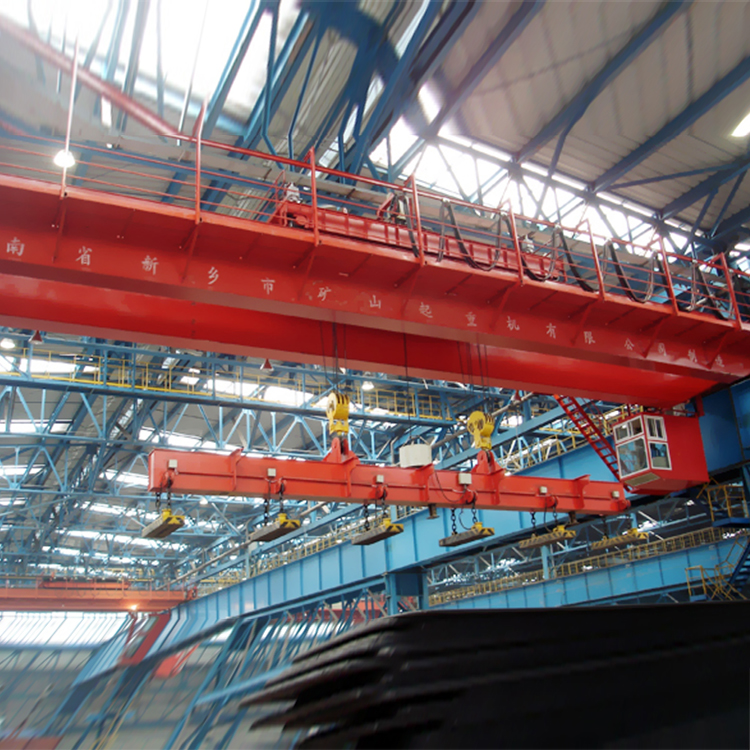

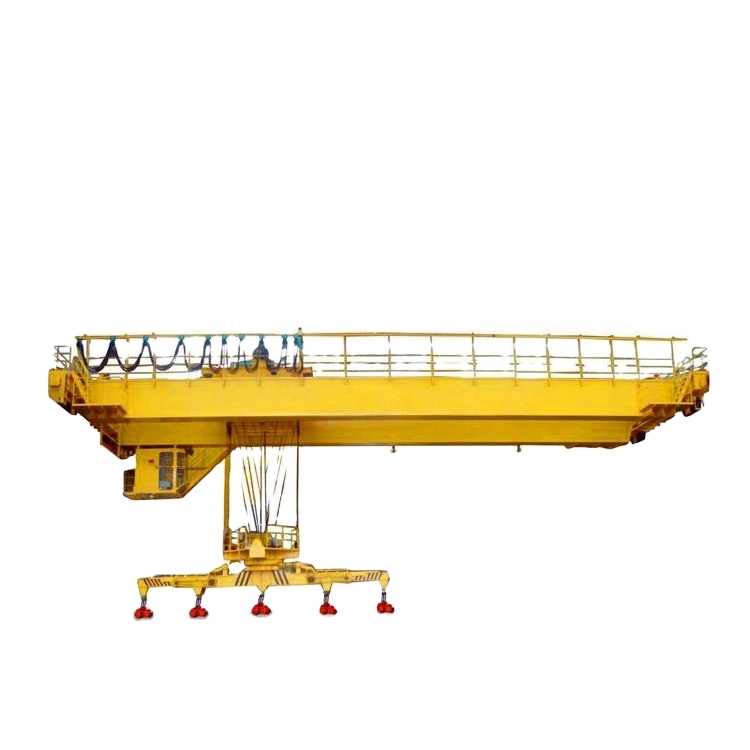

Double Girder Overhead Crane with Electromagnet is a specialized crane for lifting and moving steel products, steel plates and steel pipes. this crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. the electromagnetic suction force of this overhead crane can last 10 minutes after power off. and the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted.

There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. and electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).
Heavy duty 1010 Ton double girder rotation hanging beam magnetic electric overhead traveling crane

Main Features:

1. Three kind entrances to the cab: end, side and top entrances;

2. the rotating part of hook must be locked by screws during electromagnetic plate working;

3. Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck and its components;

4. Box-typed girder structure is welded in high strength by robots;

5. Wheels, winding drums, gears and are manufactured by CNC with best quality;

6. Heavy-duty slip ring motor from Henan NGP, the best quality in China;

7. Electric equipment from German Siemens

8. Independent control system: wireless control or cab control;

9. Lifting overload protection device;

10. Polyurethane buffer;

11. Crane travel limit switch;

12. Decompression protection;

13. Emergency shutdown device;

14. Current overload protector.
