| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Export standard wooden box packing |
Quick Details
- Feature: Bridge Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE ISO EAC
- Condition: New
- Feature: High efficient
- Model Number: QB
- Brand Name: Kuangyuan
- Span: 7m-31.5m
- Max. Lifting Height: 30m
- Max. Lifting Load: 50/10 Ton
- Rated Lifting Moment: 500 KN
- Rated Loading Capacity: 50 ton
- Application: workshop
- Name: Anti-explosion overhead crane
- Lifting mechanism: Open winch trolley
- Power Source: 3P 220--440 V/50hz60HZ
- Work Duty: A3-A5
- Control method: Ground Control+Remote Control+Cabin Control
- Color: Customized
- Working temperature: -10 ~45
- Main electrical parts: Schneider Brand
- Main body: Box type
- Standard: DIN/FEM/GB
Specifications

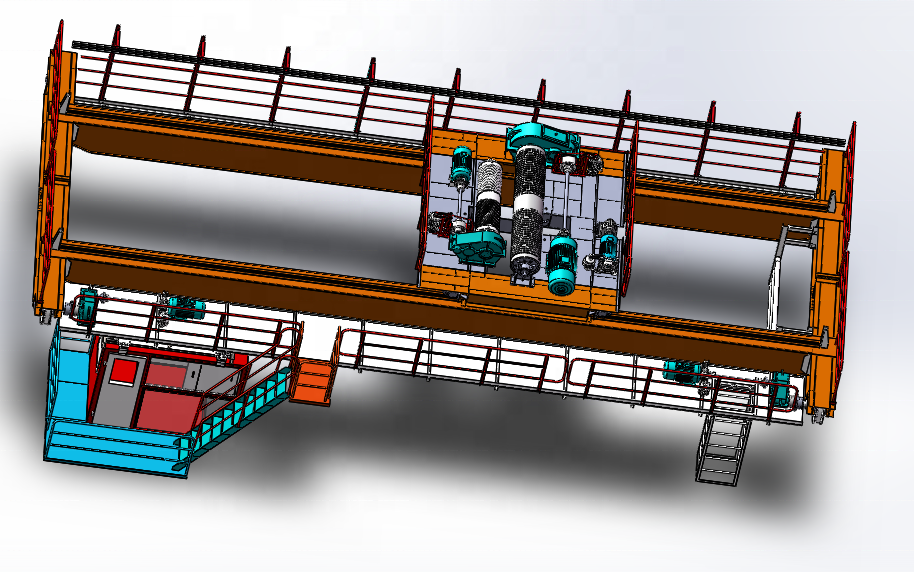

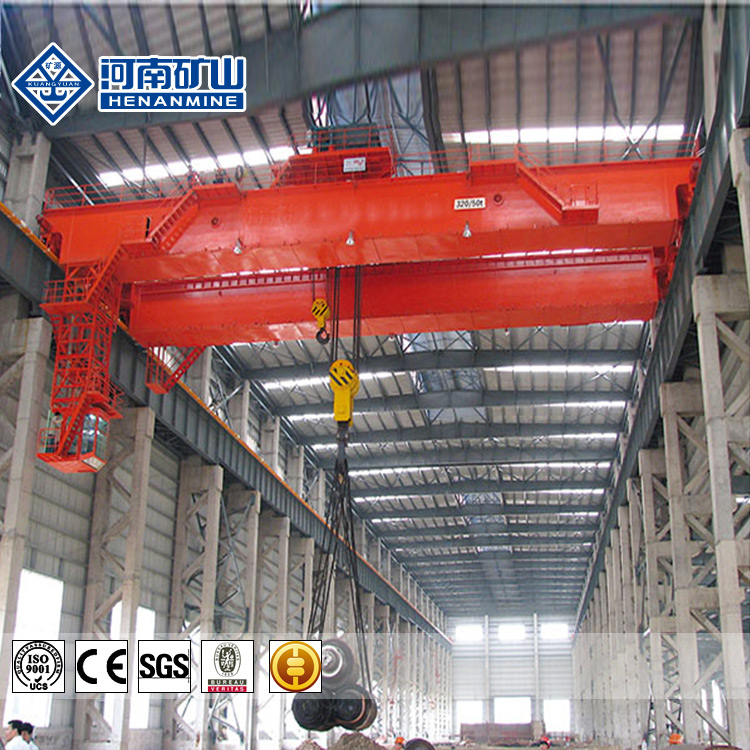

50 / 10t QB Model Explosion-Proof Double Girder Overhead Crane with Heavy Hook
QB Double girder overhead craneUse stainless steel or nylon crane wheels to avoid the flame by friction. Besides, all the components in electrical system is of high safety by conforming to national and international standards. Henan Mine explosion overhead crane is provided with the highest level of safety, quality and reliability, which is required for hazardous environments such as oil refineries, petrochemical, paint industries, gas power plants etc.
Main Features of QB modelOverheadCrane:
1. Overhead crane capacity up to 75 tons
2. Minimum IP55 for electrical enclosure
3. All crane motors are equipped on the overhead crane with insulation class F and Temperature Rise Class B to provide a longer operational life span
4. Electronic overload protection c/w warning horn.
5. Noise level below 85 dB(A) at full load
6. Two speed control via pole changing for the hoisting motion, inverter control for trolley and bridge motion for smooth and precise operation.
7. Thermal protection for pole-changing and 3 PTC thermistors for inverter drive.
8. Crane rake with asbestos-free lining which activates automatically in case of power failure.
