| Place of Origin: | Henan in China |
|---|---|
| Packaging Details: | Export standard wooden box packing |
Quick Details
- Feature: Bridge Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE ISO EAC
- Condition: New
- Feature: High efficient
- Model Number: LX
- Brand Name: Kuangyuan
- Span: 7m-31.5m
- Max. Lifting Height: 30m
- Max. Lifting Load: 5 Ton
- Rated Lifting Moment: 50 KN
- Rated Loading Capacity: 5 Ton
- Application: workshop
- Name: suspension bridge crane
- Lifting mechanism: European electric wire rope hoist
- Traveling speed: 20m/min
- Material: Q235
- Protection class: IP54
- Power Source: Customized
- Electrical parts: Schneider
- Lifting motor: Nanjing Special
- Main body: Box type
- Traveling motor: Kuangshan
Specifications

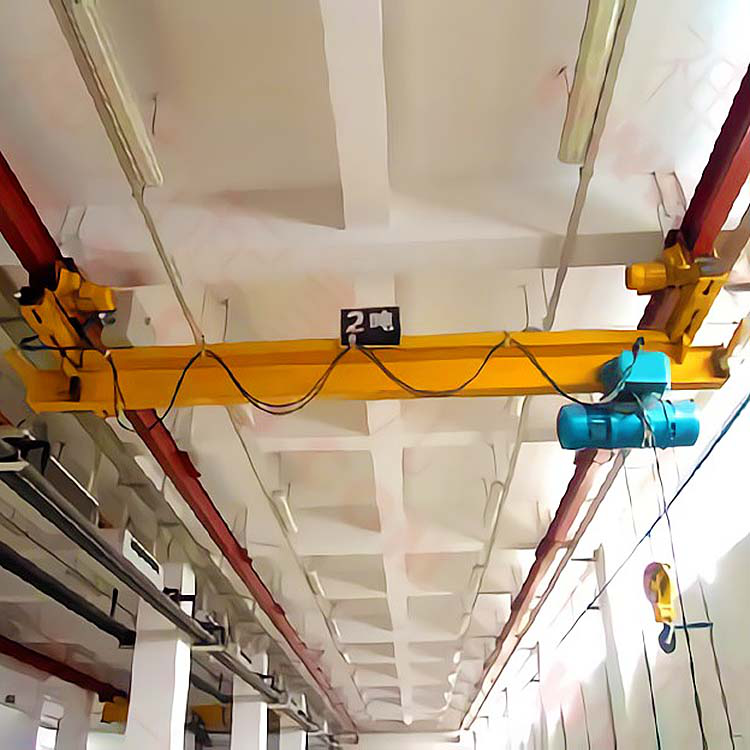

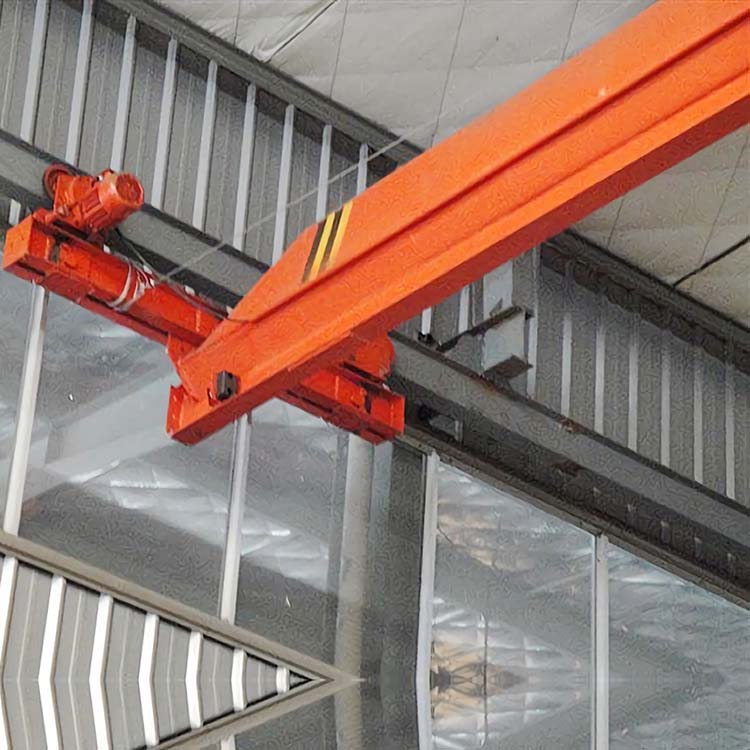

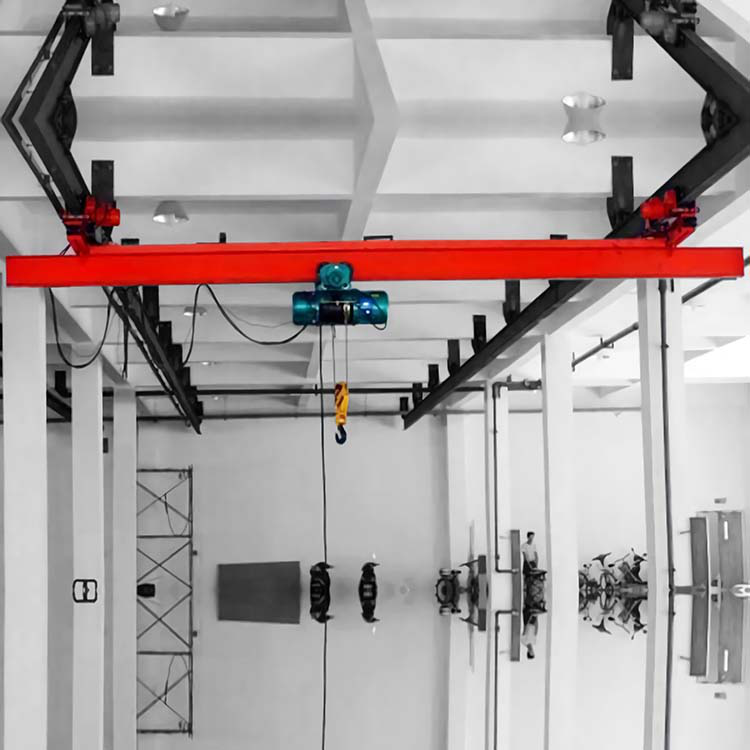

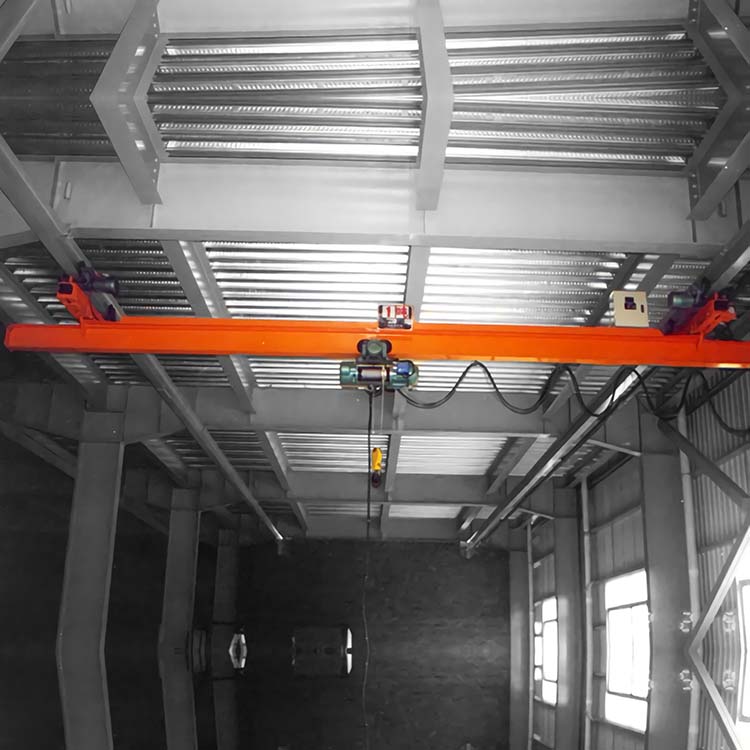

High quality 5Ton single beam remote control underslung steel box type EOT crane
LX model single girder overhead crane is a kind of light duty crane, with a capacity of 0.5 to 10 tons.
1).Light structure,easy installation and maintenance;
2).Safe and reliable operation;
3).Low cost maintenance, long working life;
4).Strong box type,welding by machine hand.;
5).Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
6).Heavy duty slipring motor,Or Sq.Cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
LX model single girder overhead crane is a kind of light duty crane, with a capacity of 0.5 to 10 tons.
the span is 3 to 16 meters.Working grade is A3-A5.Working temperature is -25 to 40. It is widely used in plants, warehouse, and material stocks to lift goods.It is matched with electric hoist which is CD model or MD model.the product design according to international standards: DIN (Germany), FEM(Europe),ISO (International), with the advantages of low energy consumption,strong rigidity,light weight,outstanding structural design, etc.
1).Light structure,easy installation and maintenance;3).Low cost maintenance, long working life;
4).Strong box type,welding by machine hand.;
5).Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
6).Heavy duty slipring motor,Or Sq.Cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
7).Attractive in quality and price
