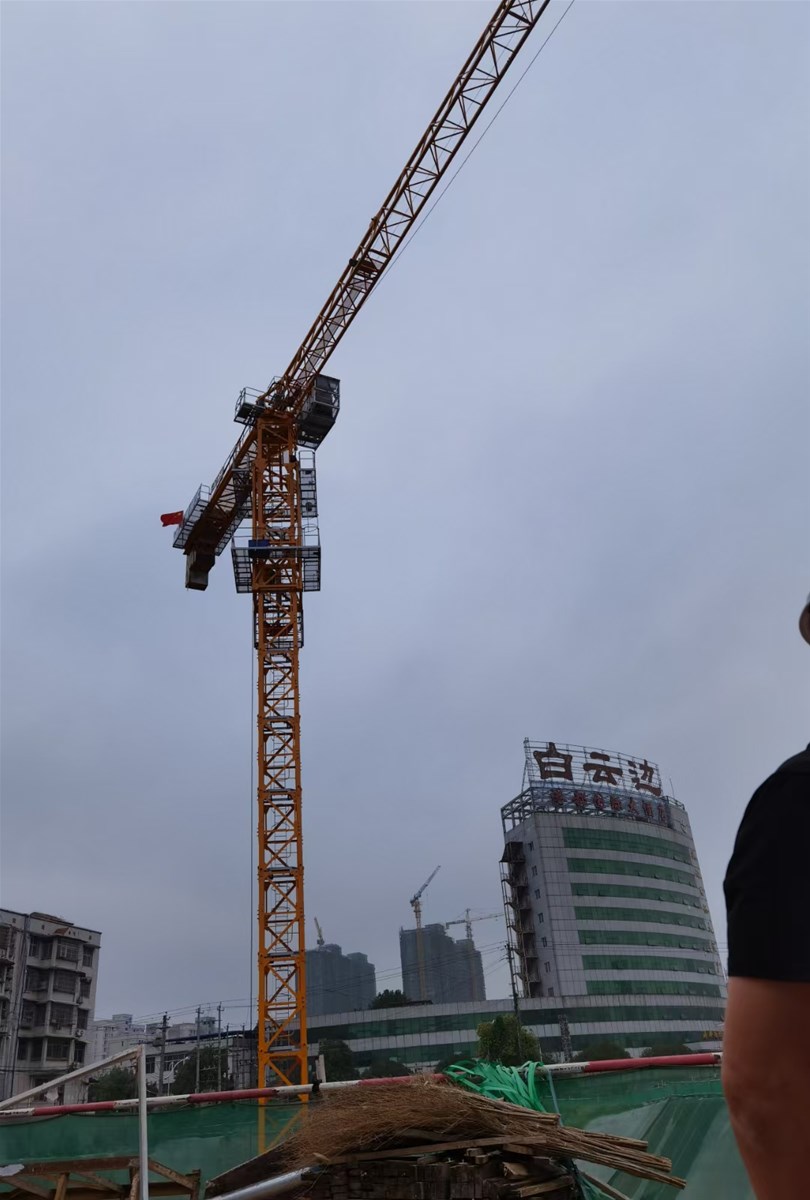

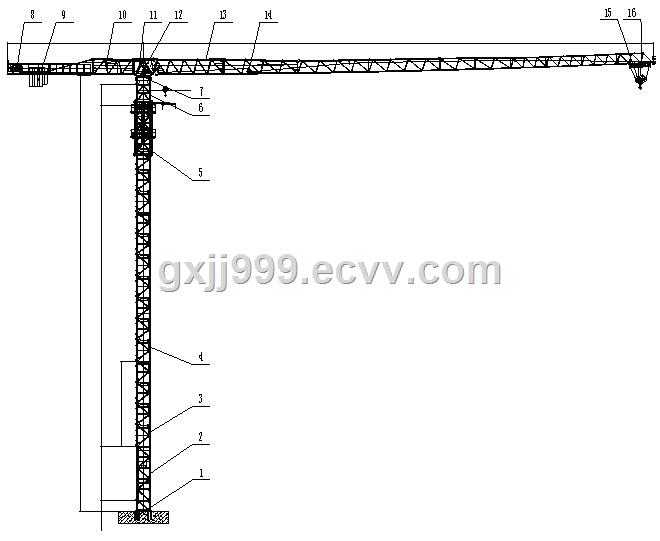

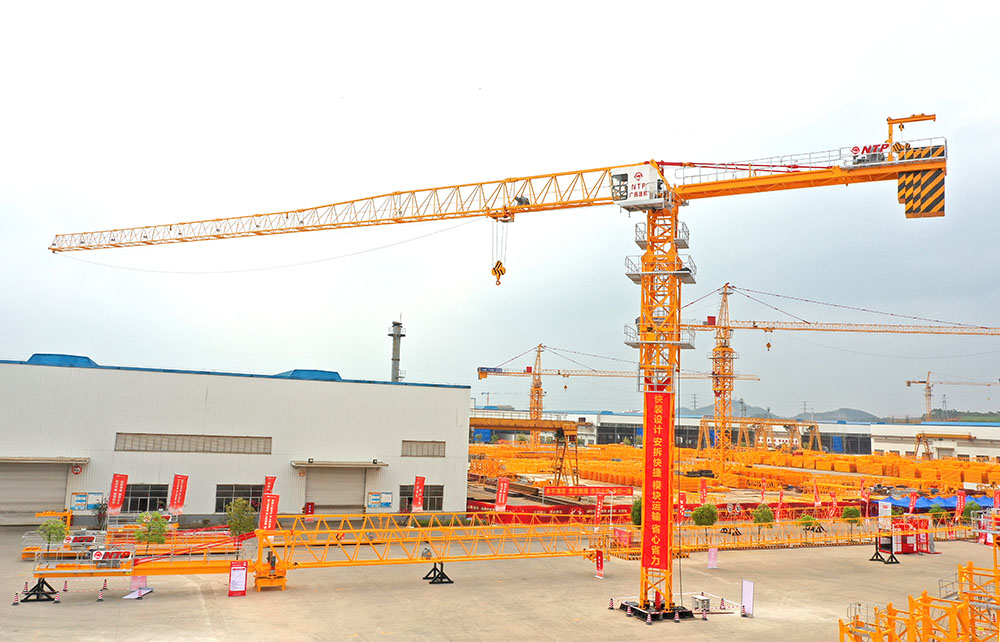

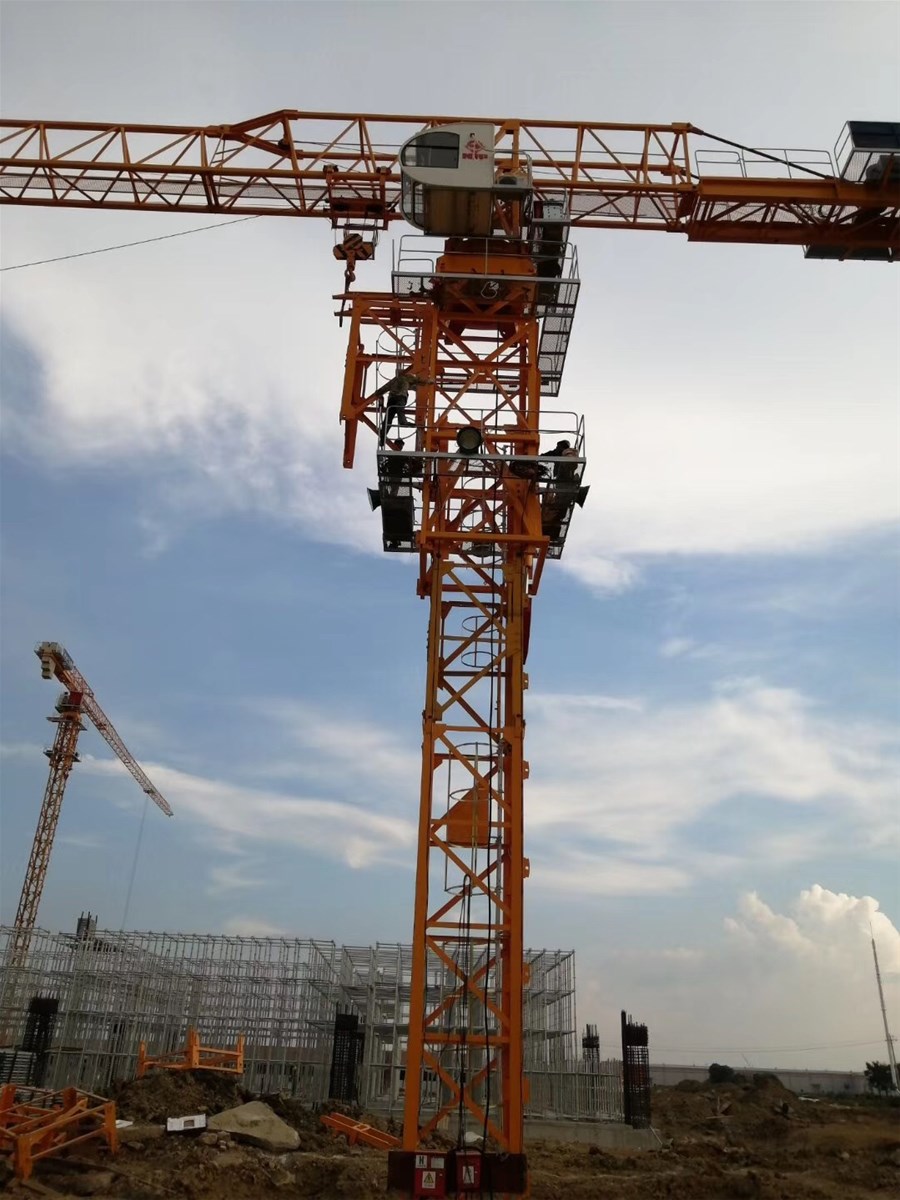

Flat Top Tower Cranes7526-16T, Has a Max Jib Length of 75m & a Maximum Capacity of 16t.
| FOB Price: | 186500.00 - 189000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set(s) per Month |
| Shipping: | Containers |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | Naked,Containers |
Quick Details
- Feature: Tower Crane
- Certification: ISO9001
- Brand Name: NTP
- Max. Lifting Height: 255M
- Max. Lifting Load: 16tons
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Model Number: TCT7526-16
- Span: 75m
- Rated Lifting Moment: 3150kn. m
- Rated Loading Capacity: 2.6 tons
- Application: Construction sites and bridges
Specifications
1, product performance is superior 1 short arm long lifting performance is superior, adapt to PC construction; 2 lifting speed is high; independent height is 60M, lifting weight is 16t. 2 the lifting rope is neat, the steel rope has long service life 3, the product adaptability is strong 1 the boom has 75/70/65/60/55/50/45/40/35/30 m 10 kinds of arm length combination 2 the lifting mechanism has the high power and the large capacity rope mechanism to choose, satisfies the ultra high project construction request; 3 the maintenance boom has the manual configuration and the electric configuration choice; 3, the intelligence degree is high 1 breakdown self-diagnosis technology, when the tower crane appears the breakdown, may inquire the current breakdown and the historical breakdown through the breakdown record, remote Management Technology, realize equipment information management, working condition, alarm data recording, tracking and analysis, remote control and so on. 3 jack-up working mode identification and speed limit of rotation and change amplitude; 4 Construction Safety Protection, dangerous working state identification and alarm of lifting anchor object;
