Home >Products Catalog > GBOS Apparel CO2 Clothing Auto Feeding System Kiss Cut Bonding Fabric Marking Laser Engraving Machine 60W

GBOS Apparel CO2 Clothing Auto Feeding System Kiss Cut Bonding Fabric Marking Laser Engraving Machine 60W

FOB Price:	233,925.00 - 311,900.00 USD/Set
Supply Ability:	300 Set(s) per Month
Shipping:	Port Shenzhen/Guangzhou
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard Ply-wooden case for exporting, non fumigation.

Quick Details

Application: Laser Engraving
Certification: CE,ISO,SGS,
Brand Name: GBOS
Graphic Format Supported: AI,BMP,DST,DWG,DXF,LAS,PLT
Applicable Material: Acrylic,Leather,MDF,Paper,Plywood,Rubber,fabric embroidery patches,
Condition: New
After-sales Service Provided: Overseas service center available
Dimension(L*W*H): 1750*1160*1310mm
Model Number: GB60A-XYP-AT
Cooling Mode: Water Cooling
CNC or Not: Yes
Engraving Speed: 7000~10000mm/s
Engraving Area: 175*175mm
Laser Type: CO2
Laser Source Brand: Coherent
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Weight (KG): 240 KG

Specifications

1.Product Description: GBOS Carbon Auto Feeding Device Kiss Cut Bonding Fabric Marking Laser Engraving Machine

CO2 non-metal laser marking machine adopts scanning with high speed vibrating lens and high quality import laser tube, marking with high accuracy and high-speed, working stability and easy operation. High accurate ascending and descending and descending working table to mark clearly for a long time.
Control soft ware adopts WINDOWS. It is compatible with documents which are from various kinds of illustrated software such as Coreldraw /AutoCAD and so on. It can work out all kinds of letterform and bar code marking, supporting all kinds of letterform, for example, PLT, PXC, KXF and so on, directly use SHX, TTF. Coding, printing sequence number, date and so on...

2.Techincal parameters:

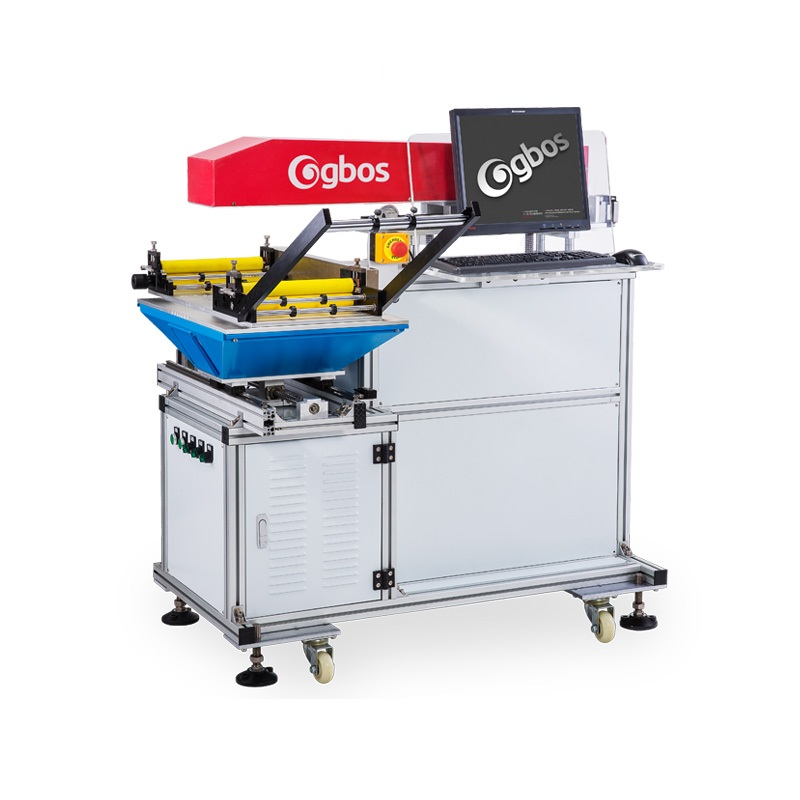

GB60A-XYP-at GBOS Auto Feeding System Kiss Cut Bonding Fabric Marking Laser Engraving Machine.

MODEL	GB60A-XYP-at
Processing Area(mm)	175175mm
Gross Power	≈2900W
Measurement(mm)(LWH)	175011601310mm
System/Compatible Format	WindowsXP/7/8/10,AI,PLT,DXF,DST,BMP,JPEG,JPG,PNG
Weight(kg)	200KG
Power Supply	220V/10A,50Hz or 60Hz
Marking Precision	±0.2mm
Cutting speed	7000~10000mm/s
Environmental Requirements	Temperature 10-30℃ Humidity (no condensation) 30-80%

GBOS Laser Marking Machine Applicable Materials

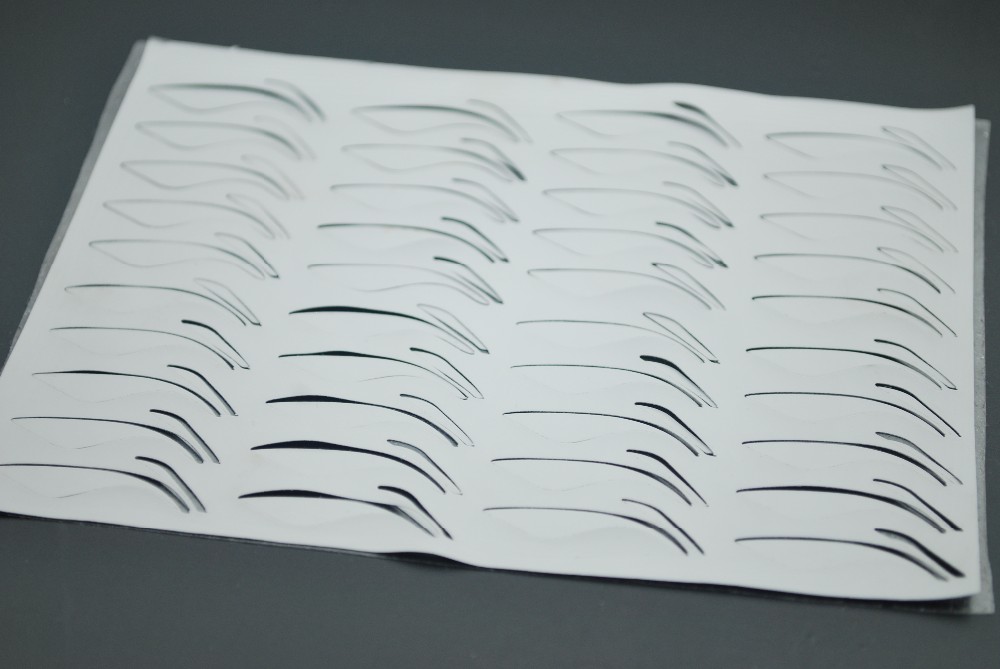

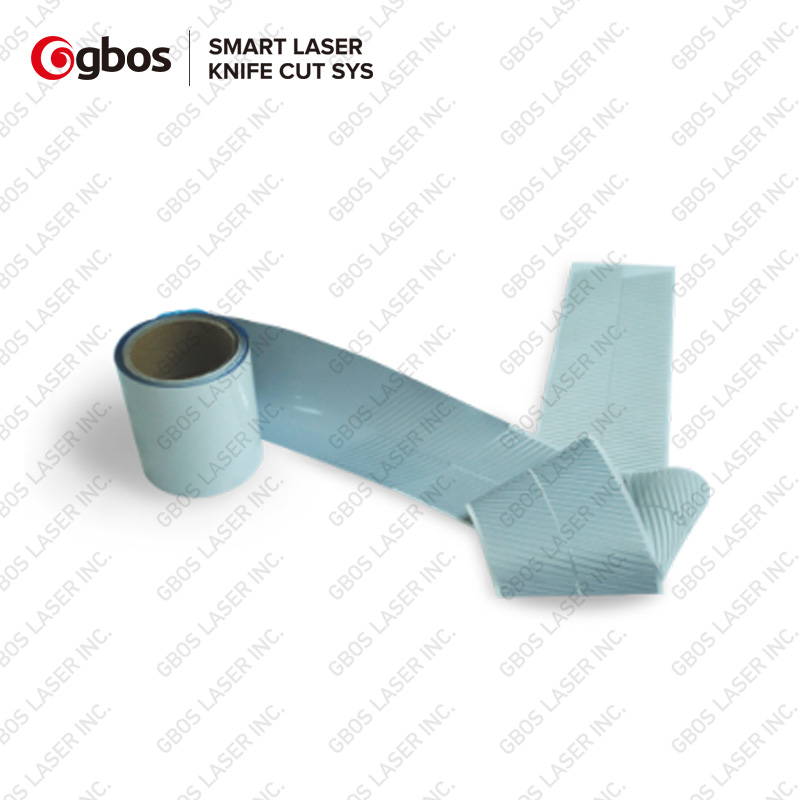

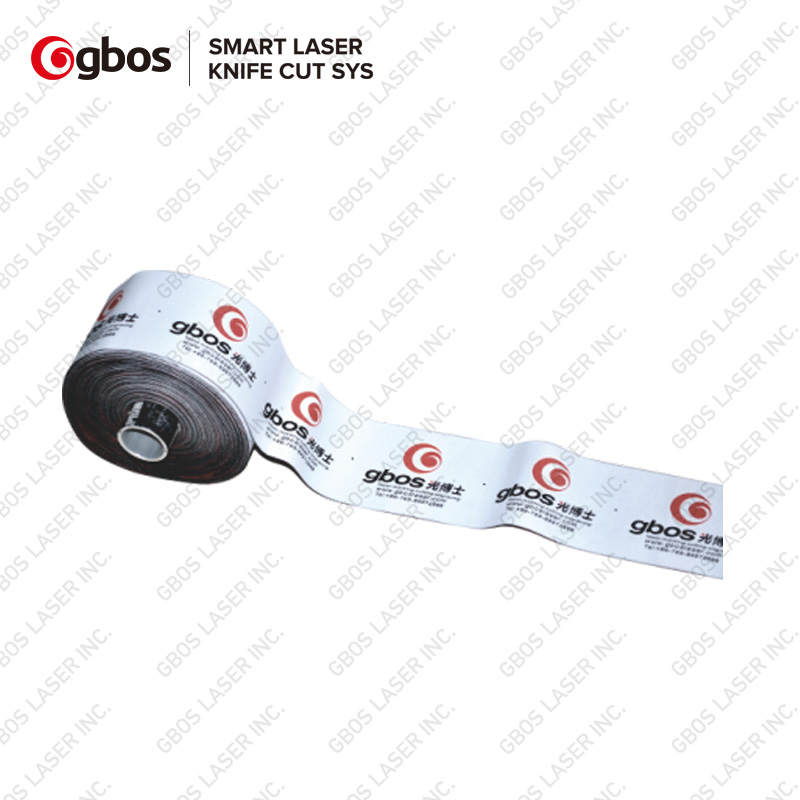

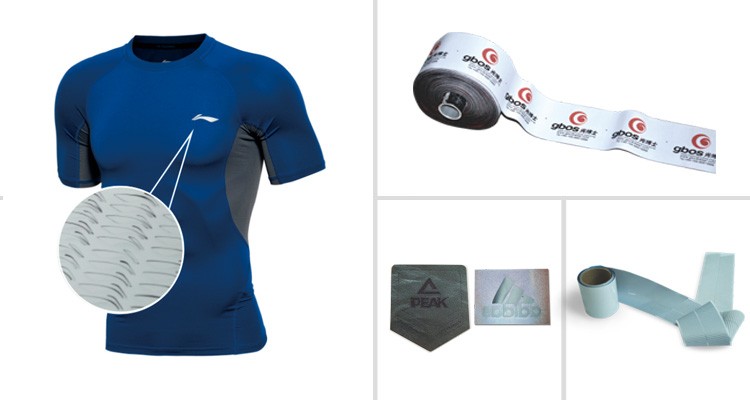

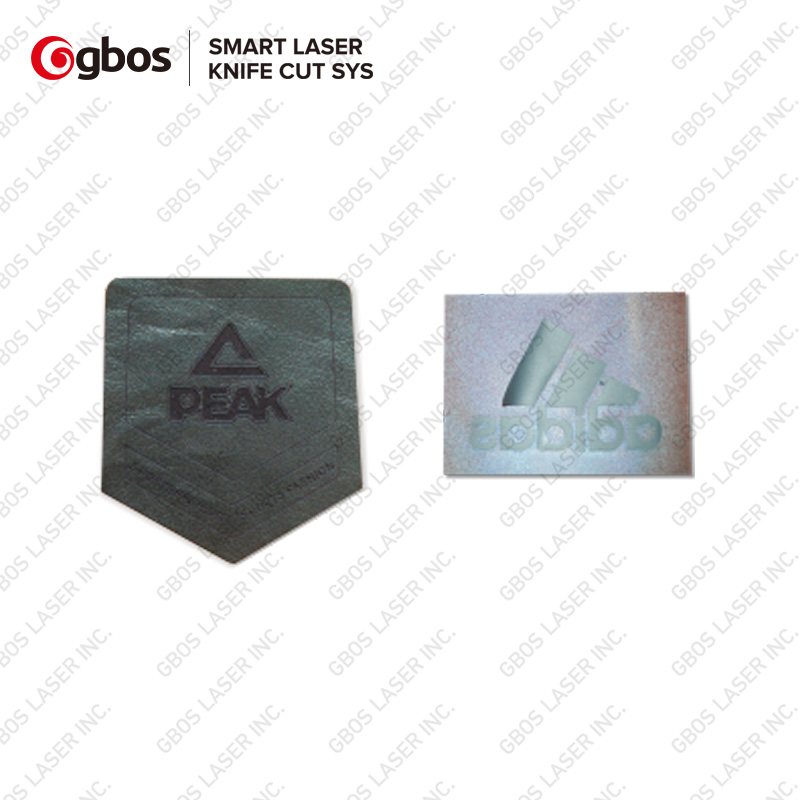

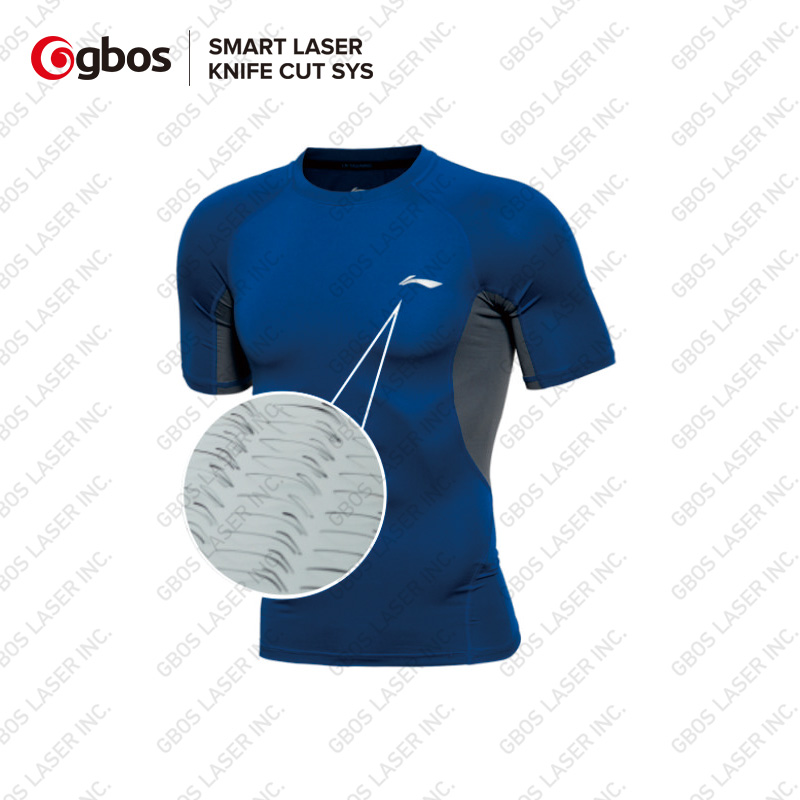

Line-up of reflecting materials, TPU, roll materials, leather, label marking code and etc.Application for garment industry.

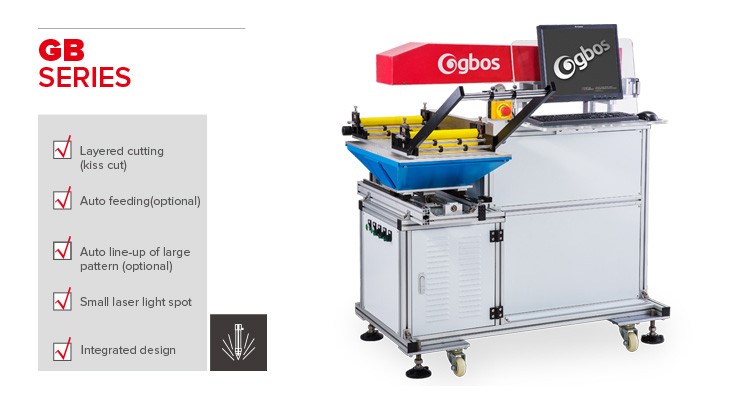

3.Performance features:

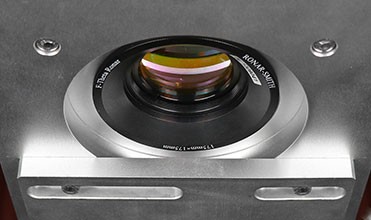

High speed vibrating lens
Precise layered cutting,stable performance, high speed.

American CO2 Coherent Laser generator Adopt metal laser generator, high precision for kiss cut.

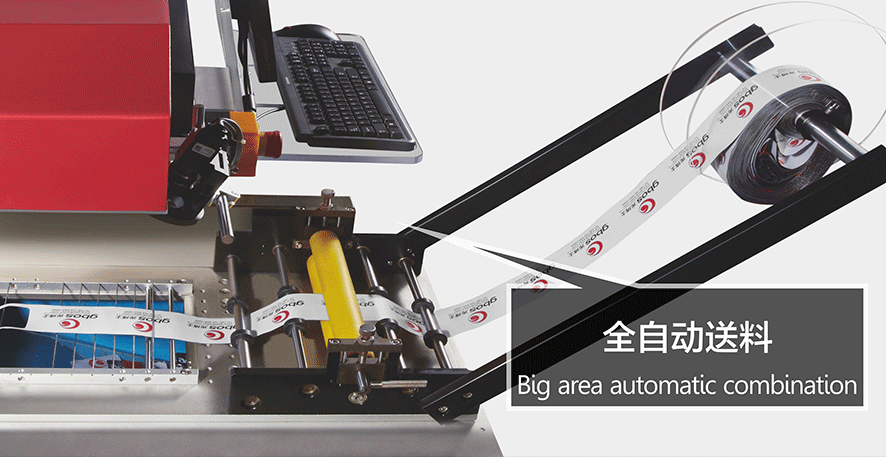

Auto feeding System Roll materials;Increase production efficiency.

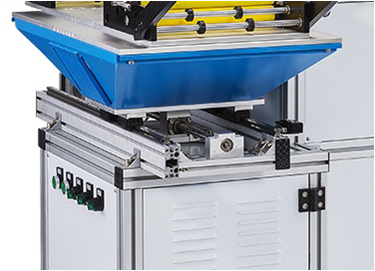

XYP device 4 axis moving table, it can move side to side, continuous work;Auto line-up of large pattern.

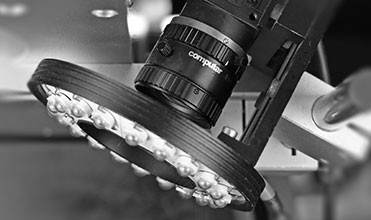

CCD positioning(optional) Visual positioning cutting; Visual positioning cutting + marking code; Visual positioning marking code(production date code); Visual positioning engraving; Visual positioning cutting+engraving+marking code.

4.about GBOS:

GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.

since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. so far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification.

the company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.

"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.

4.Our services:

4.Exhibition:

CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
Located in Shanghai

GUANGZHOU CHINA SHOES MATERIAL MACHINARY FAIR
Located in Guangzhou

VIETNAM SAIGON TEXTILE&GARMENT INDUSTRY FABRIC&GARMENT ACCESSORIES EXPO
Located in Vienam

SIMAC &TANNING-TECH INTERNATIONAL EXHIBITION of MACHINES and TECHNOLOGIES for FOOTWEAR and LEATHERGOODS and TANNING INDU Located in Italy

FAQ

Q1: What's the working size of bonding fabric and machine dimension?
Working size: 175*175mm(175mm - unlimited length)
Machine dimension: 1750mm*1160mm*1310mm (body frame)

Q2: What kind of material can it work for this marking machine?
Line-up of reflecting materials, TPU, roll materials, leather, glass, white fabric, label marking code and etc.

Q3: how do I know that your machine can cut my material?
You can tell us the material and send us your design, we can send you a sample for check the quality, and the sample production time is 1~3 days.

Q4: When I got laser washing machine for jeans, but I don't know how to use it. What should I do?
A. We will dispatch the technician for in-house service(installation & training).
B. Also send video and English manual of the machine.
C. If you still have any doubts, please contact us via Telephone / Skype / Email / Facebook / Website, will answer you within 8 hours.

Any problem, please do not hesitate to contact us, we will service to you at 24 hours.
