Multiway Robotics (Shenzhen) Co., Ltd.
China Manufacturer with main products: Logistics Robotics Companies, Top Warehouse Robotics Companies |
Ground Bull Automatic Pallet Lifter
| FOB Price: | 100000.00 - 2000000.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Type: Vacuum Cleaner
- Brand Name: /
- Certification: /
- Type: /
- Voltage (V): /
- Power (W): /
Specifications

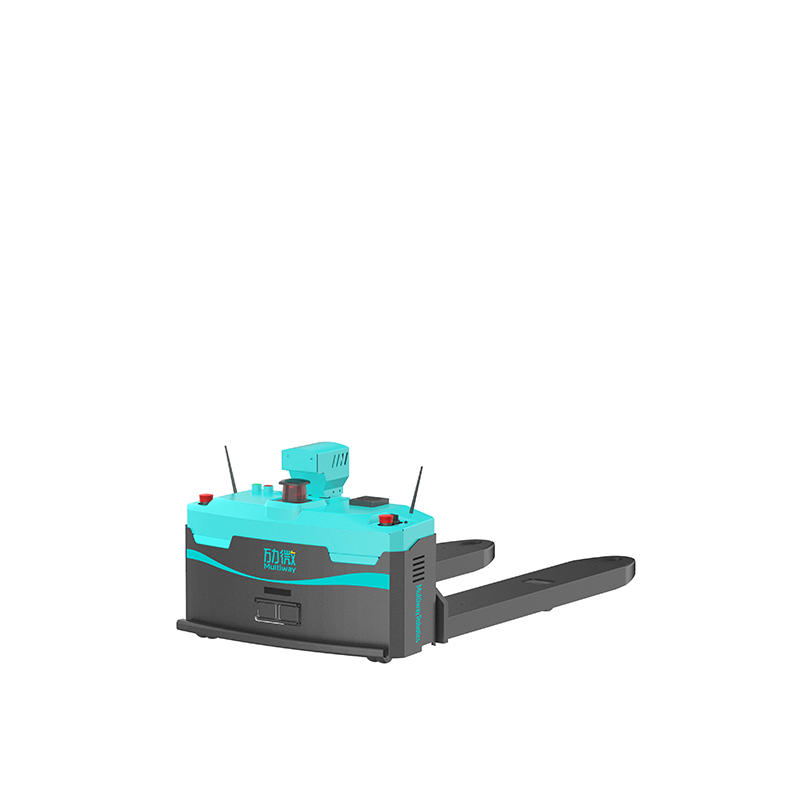

Light AGV Pallet Truck MW-SD10, lighter size and low ground load requirements. It is usually used for horizontal handling and cargo handling in floor workshops or warehouses.
the Specification of MW-SD10 Ground BullAutomatic Pallet Lifter
Standard Option
Standard Models |
Pallet Trucks AGVS MW-SD10 | |
Navigation |
Laser+reflector navigation |
|
LiDAR SLAM navigation |
| |
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) |
| |
Communication |
Wireless Wi-Fi |
|
Optical communication |
| |
5G |
| |
Specifications |
Payload(kg) |
1000 |
Turning Radius(mm) |
990 | |
Lost load height(mm) |
210 | |
Max lifting height(mm) |
210 | |
Max height payload(kg) |
1000 | |
Min fork height(mm) |
86 | |
Dimensions l/e/s(mm) |
1150x186x60 | |
Outer fork width(mm) |
680 | |
Aisle width[Pallet dimensions 1m(along the fork)x1.2m](mm) |
2150 | |
Pallet posture recognition width[Pallet 1m(along the fork)x1.2m](mm) |
2550 | |
Weight(kg) |
180 | |
Dimensions LxWxH(mm) |
1475x730x550 | |
Motion capability |
Motion |
Reach, back, turning |
Speed(Unloaded/Max loaded)(m/s) |
1/0.7 | |
Accuracy(Bearing wheel center)(mm) |
±5 | |
Endangle accuracy(°) |
±1 | |
Ditch crossing capability(mm) |
≤30 | |
Obstacle crossing capability(mm) |
≤10 | |
Climbing capability(mm) |
≤3°(5%) | |
Safety&protection |
Manual/Auto |
|
Offset protection, Abnormal positioning protection |
||
Components malfuction, communication fault protection |
||
Bottom front LiDAR anti-collision(1/2pcs) |
| |
3D obstacles avoidance(Front/back 1/2pcs) |
| |
Fork front anti-collision(Light sensor) |
||
Bumper strip(Truck head) |
||
Emergency button(at least 2pcs) |
| |
Sound(Speaker)alarm,Light alarm(3-color light 2pcs) |
||
Width light(Front, left, right 3pcs) |
| |
HMI(7 inches) |
||
Monitoring camera |
||
Fork function |
Cargo detection |
|
Cargo posture detection |
||
Anti-pressure detection(Light sensors) |
| |
Cargo offset detection(Ultrasonic) |
||
Space detection(LiDAR point cloud) |
||
Auto fork distance adjust |
| |
Lateral offset positioning |
||
Inclination detection |
||
Battery capability |
Recharging mode |
Manual/Auto |
Manual recharging(Plug direct) |
| |
Battery replacing(Standard) |
Hoisting | |
Lateral replacing(less capability) |
| |
Battery type(Standard) |
LiFePO4 | |
Voltage |
48V | |
Standard Capability[Hoisting] |
25Ah | |
Standard Capability[Lateral](Ah) |
||
Operation time(h) |
6-8h | |
Lifetime |
3000 times, 70% left | |
Recharging station(Standard) |
48V15A | |
Visual function |
Pallet posture recognition(3D camera) |
|
Fork feeding side detection(3D camera) |
||
Weight detection(Weighing module) |
| |
Cargo falling detection(3D camera2pcs) |
| |
Auto inventory(2D+3D cameras) |
| |
Bar code/RFID recognition(Reader/RFID sensor) |
| |
the Advantages of MW-SD10 Ground Bull Automatic Pallet Lifter
Environment adaption: Laser navigation, no need to refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable, improving flexibility.
the Features of MW-SD10 Ground Bull Automatic Pallet Lifter
High accuracy, high efficiency: Primary positioning±5mm, secondary positioning±2mm.
Max speed 1m/s, max payload 1000kg, 724h full time running.
Intelligent, safe, easy to operate: Comprehensive self detection capability.
Safe sensors + dual control system protection, 360°Anti-collision, Light&Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
Multiway Robotics is aAgv systems pvt ltd, we provide,,Auto guided vehicle,Autonomous guided vehicles and etc. Want to know more? Please contact us.
