DGW22F-Rear Drive Motor-MTB 36v Ebike Motor

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Packaging Details:	Carton Packing

Quick Details

the motor provides high power, light in weight, and we provide disc brake or V-brake.

Main parameter of DGW22F-Rear Drive Motor-MTB:

Specification	Parameter
Driving position	Front
Wheel size	20in-28in
Spoke	36holes 12G
Rated power	350-500W
Rated voltage	36V~48V
Max.Torque	≥50N.M
Efficiency	≥80
Cable side	Right
Number of magnet	16
Reduction gear ratio	1:5.3
Installation dimension	100mm
Inside speed sensor	1~6
Hall sensor	with/without
Free wheel	without
Brake	Disc-brake/ V-brake
Classification of waterproof	IPX5
Weight	3.9Kg

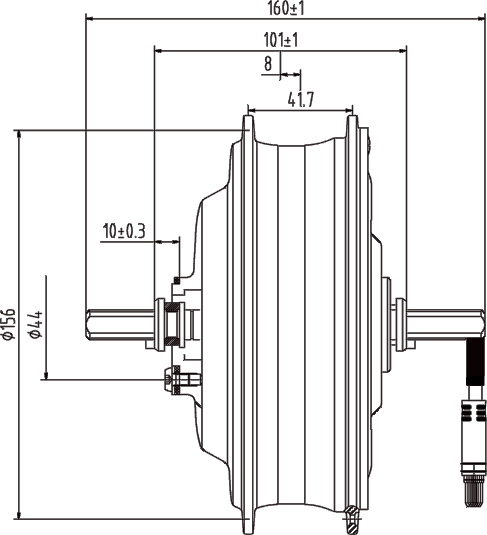

Drawing of DGW22F-Rear Drive Motor-MTB:

Shengyi is a professoinal, we provide ,36v 350w hub motor,36v 500w hub motor,,China hub motor and etc. Want to know more? Please contact us.
