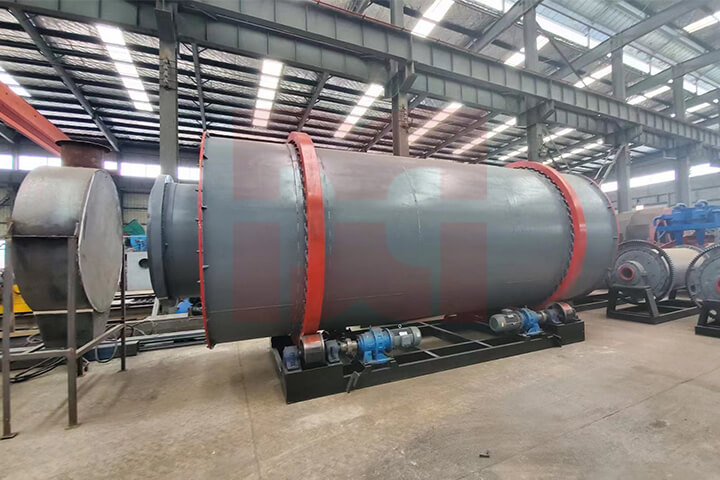

Three Drum Sand Rotary Dryer, Silica Sand Srying Machine

FOB Price:	15000.00 - 25000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard export package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: DONGDING
Weight: customized
color: customized
Model Number: DD

Specifications

1.Brief Introduction:

Sand dryer is a three drum drying equipment developed on the basis of single drum rotary dryer. with simple internal structure and low energy consumption, the sand dryer is deeply loved by users, which greatly improves the labor productivity and application range. Sand dryer is generally suitable for drying materials with large specific gravity, especially for drying river sand, silica sand, yellow sand, sea sand, ore sand, iron powder, copper slag and other materials.

2.Techincal parameters:

Model	Capacity(T/h)			Coal consumption (drying 1t materials) kg	Total power
Model	River sand	Fly ash	Slag	Coal consumption (drying 1t materials) kg	Total power
Φ2.02	4-5	2-3	3-5	12-14	5.5kw
Φ2.04	8-12	4-6	8-10	12-14	3kw2
Φ2.05	12-15	6-7	10-13	10-12	4kw2
Φ2.24.5	14-18	7-9	12-15	10-12	5.5kw2
Φ2.56	23-28	10-13	20-22	10-12	5.5kw4
Φ2.86	30-35	15-18	25-30	10-12	5.5kw4
Φ3.06	35-40	18-20	32-35	8-10	7.5kw4
Φ3.07	40-45	20-25	35-40	8-10	7.5kw4
Φ3.27	45-50	25-30	40-45	8-10	11kw4
Φ3.28	50-55	30-35	45-50	8-10	11kw4
Φ3.68	60-70	35-40	60-65	6-8	15kw4
Φ3.89	70-80	40-45	70-75	6-8	15kw4
Φ4.010	90-100	45-50	80-90	6-8	18.5kw4
Φ4.28.5	80-100	45-60	80-90	6-8	18.5kw4
(the moisture is:15%1%)

3.Performance features:

*the rotary dryer has compact structure and reasonable layout, improves the heat exchange rate between materials and heat energy and ensures good drying effect.

* the new lifting plate device is adopted to make the combination of materials and drying heat source more fully, and greatly improve the drying efficiency.

* High automation degree. According to the water content and output of the materials, the frequency conversion control system is used to control the cylinder speed.

4.Application

the sand rotary dryer is mainly used for drying river sand, artificial sand, quartz sand, dry mortar, yellow sand, slag, clay, limestone, and other materials with high wetness and high specific gravity. It is widely used in building materials, metallurgy, mineral processing, chemical, cement and other industries.
