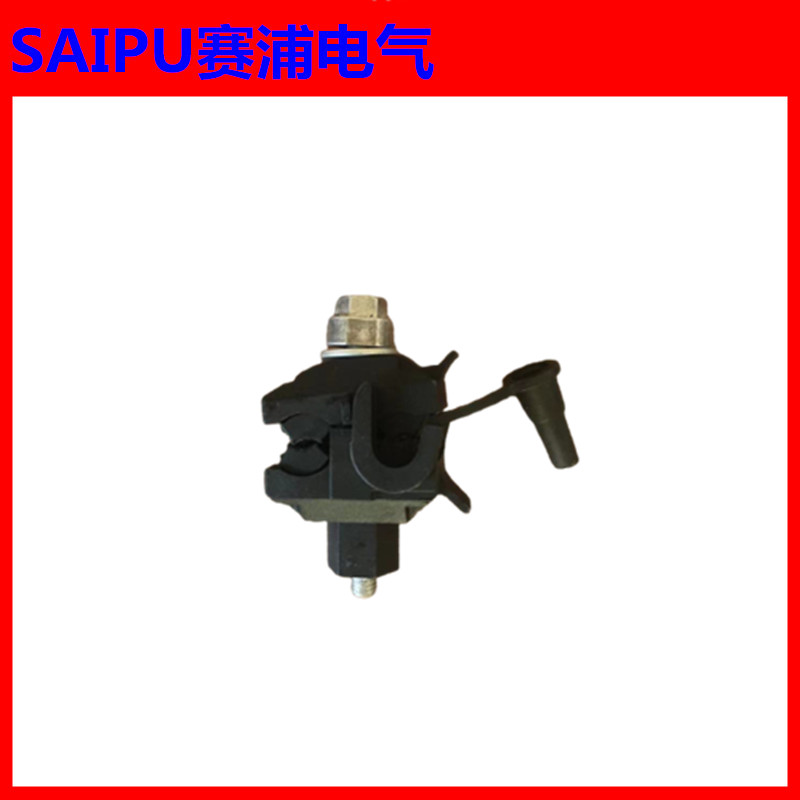

Fire-Resistant or Fire-Retardant Cables Connecting Branches Insulated Piercing Connectors
| FOB Price: | 0.50 - 8.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | by sea |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | EXPORTED STANDARD CARTON |
Quick Details
- Gender: other
- Application: other
- Type: MCX
- Brand Name: SP
- Color: BLACK
- Model Number: DCNL
- INSULATED PIERCING CONNECTOR: IPC
Specifications
Type |
Main Line(mm2) |
Branch Line(mm2) |
Nominal Current(A) |
Torque(Nm) |
SP101 |
1.5-25 |
1.5-10 |
70 |
8 |
SPEP |
16-95 |
1.5-10 |
70 |
8 |
SP2-95 |
16-95 |
4-35 |
200 |
13 |
SP2-150 |
50-150 |
4-35(50) |
200 |
13 |
SP3-95 |
25-95 |
25-95 |
207 |
15 |
SP3-120 |
16-120 |
16-120 |
239 |
13 |
SP4-150 |
35-150 |
35-150 |
239 |
26 |
SP6 |
120-240 |
25-120(150) |
276 |
35 |
SP240 |
95-240 |
95-240 |
425 |
35 |
SP400 |
120-400 |
95-400 |
425 |
35 |
JBC-1 |
35-70 |
6-35 |
425 |
13 |
JBC-2 |
35-150 |
35-150 |
120 |
26 |
JBC-3 |
50-240 |
50-240 |
425 |
23-25 |
Fire-resistant or fire-retardant cables Connecting branches (the material also can according to your requirement)
Mainly application: the connection of main Circuit, the connection of main circuitry and outdoor circuitry, the Connections of main circuitry and electric appliance and street lamps
for fire-resistant or fire-retardant cables Connecting branches (such as: Tunnel, construction and so on)
1.Mainline: Insulated Cu or Al
2.Tap: Insulated Cu or Al
3.Connection Quality: "Hot spots" are Eliminated with a shear head screw that ensures the correct tightening torque.
4.Easy installation: to install the whole Series as only two hex wrenches (1/2" and 5/8").
5.Safe: I. P. C can be installed on an Energized conductor, however, the tap must not be under load.
7.Corrosion Resistant: Connectors are made from high strength corrosion resistant plastic.Using corrosion-resistant Shell, Anti-climate change, high-intensity,Ultraviolet insulation materials
8.Extension puncture site and contact with Senior waterproof cover functions (IP27), the water pressure of 4 KV,Extension Cover may as required under extreme left or right side.
Application
these connectors have been designed to meet The rigid requirements of Global Power Distribution Companies. Easy of Installation has been combined with excellent mechanical, electrical and Environmental characteristics to provide a connector capable of terminating Aluminum or Copper stranded conductors.
Description
Tin plated copper blades imbedded inmolded Plastic and surrounded with a sealing compound insure electrical contact in LV Overhead distribution networks. A single torque-control nut draws the two Halves of the connector together and shears off when the teeth have pierced the Insulation and made contact with the conductor strands.
