Suzhou Talent Import & Export Co., Ltd.
China Manufacturer with main products: High Speed Wire Cutting Machine, Medium Speed Wire Cutting Machine, EDM Drill, CNC Drills, Machining Center, Lathe, Grinder, Milling Machine |
Home
>Products Catalog > CNC Drilling and Milling Machine > Drilling Cutting Milling & Engraving Gantry Type Machining Center CNC Machine 650
Drilling Cutting Milling & Engraving Gantry Type Machining Center CNC Machine 650
| FOB Price: | 20800.00 - 23800.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set(s) per Month |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Application: Laser Engraving
- Certification: CE
- Brand Name: LongKai
- Applicable Material: Metal,Wood,
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 1950*1895*2355
- Model Number: LK-650
- CNC or Not: Yes
Specifications

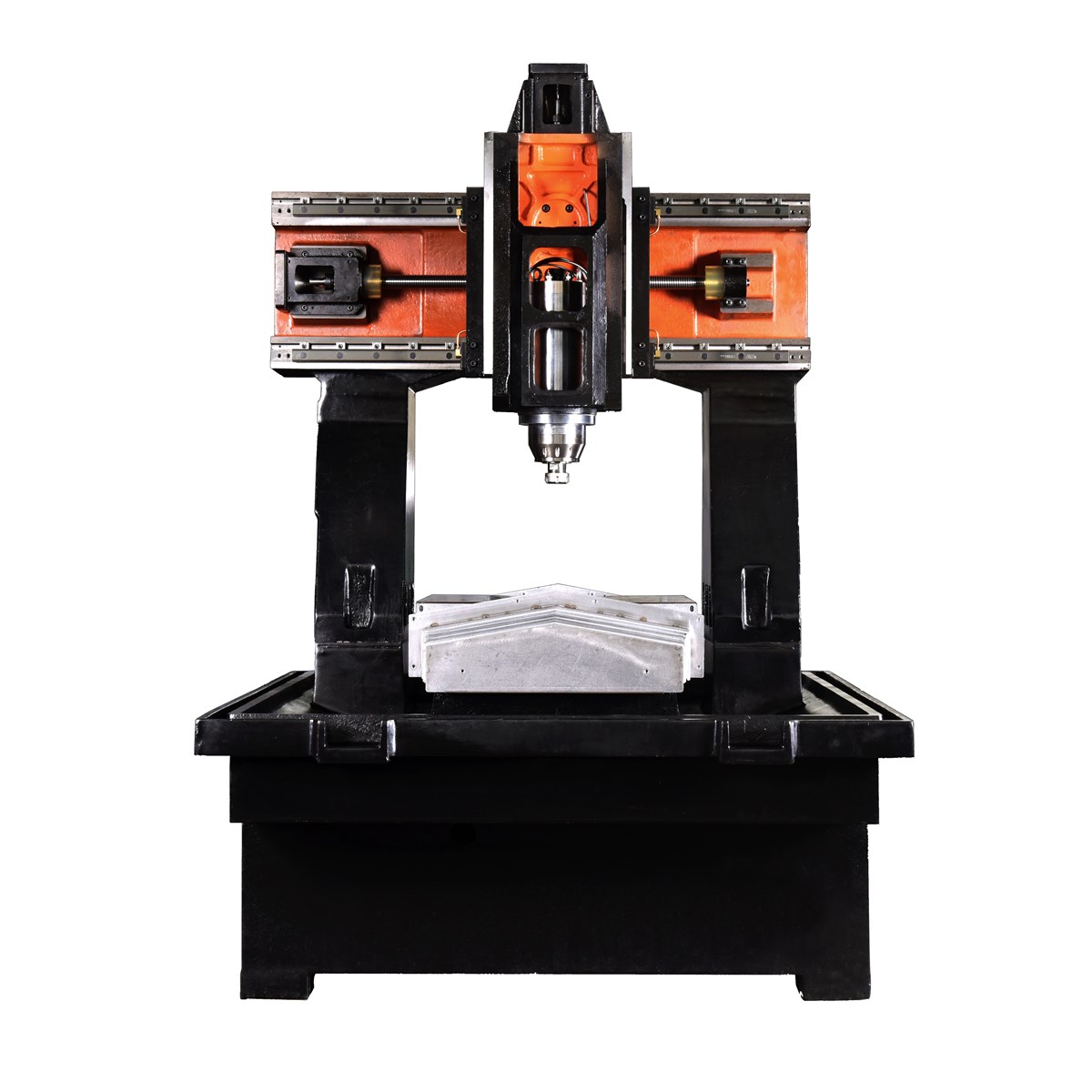

Characteristics of LK-650 Light Engraving and Milling Machines
the engraving and milling machine adopts medium-sized in-line structure design and gantry movement mode. the machine body adopts industrial welding technology. after stress relief quenching, it is processed by high-precision 5-axis gantry milling to ensure the rigidity and geometric accuracy of the machine tool. It is a multi-purpose CNC processing equipment, which has the industrial characteristics of high precision, high speed, constant torque, low runout, strong stability and long service life. It is suitable for engraving and milling cutting of wood, acrylic, aluminum, copper, aluminum-plastic plate, plastic and carbon fiber composite materials. It is widely used in advertising, woodworking, electronics, building materials and other fields.
Application field of LK-650 Light Engraving and Milling Machines
the best electrode processing machine is most suitable for milling and engraving of copper electrode. Make the processing of electrode reach the fastest, most precise, brightest and brightest. Adding a certain protective device can also be used to process graphite electrode.
It is a sharp tool for processing hardware mold parts. It is used for processing precision small steel mold, small five gold mold, glasses mold, watches, zippers, trademarks, toys, handicrafts and other molds and products.
It can be used for precision machining of various aluminum parts.
It is used for making hand boards. the increased z-axis stroke ensures that hand boards of various toys and electrical appliances can be processed.
Technical Parameter
Project |
Unit |
LK-650 |
X-axis travel |
mm |
500 |
Y-axis travel |
mm |
600 |
Z-axis travel |
mm |
260 |
Spindle nose to table |
mm |
50-310 |
Three-axis guide width |
|
X/Y:30 Z:25 |
Table size |
mm |
500*600 |
T-slot |
mm |
6*16*90 |
Max load capability |
kg |
300 |
Standard spindle |
|
Motorized spindle |
Spindle speed |
rpm |
3000-24000 |
Spindle power |
kw |
5.5 |
Spindle taper |
|
ER25-32 |
Maximum cutting feed rate(X/Y/Z) |
m/min |
8 |
Rapid speed(X/Y/Z) |
m/min |
X/Y/Z:15 |
Ball screw diameter/pitch |
mm |
X/Y/Z:32/5 |
Positioning accuracy |
mm |
±0.005/300 |
Repeatability |
mm |
±0.003 |
Air pressure |
Kgf/cm2 |
6 |
Net weight of machine |
kg |
3200 |
Area |
mm2 |
1950*1895 |
Machine height |
mm |
2355 |
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
