Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	Sea Worthy Packing or as Required

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Tianniu
certificate: CE, ISO
product name: lime kiln
material: steel,refractory
Structure: vertical
Voltage: 380V/50Hz or 60Hz
Plant Installation: Engineer Guidance
Spare Parts: Free Offer
Transport Package: Sea Worthy Packing or as Required

Specifications

the following example is for you reference.

1.Brief Introduction:

Lime vertical kiln, just like its name, the shape is erect. It is used for calcination limestone. Due to has low energy consumption, less cover area, less investment, wide applicability fuel, and more advantages, it was widely used in metallurgy, construction materials, calcium carbide, Nanometer calcium carbonate, aerated concrete, sugaring, etc. the vertical kiln was manufactured by Shandong Tianhang Machinery Equipment CO.,LTD with modern new technology, which is an environment protection, save energy, higher machanization and automaticity, quite modern lime kiln. Because it adopts the modern technology, make full use the cheap energy, especially pollution of gas for environment harmful( such as conventer gas, blast furnace gas, calcium carbide furnace tail gas) as the energy, turn waste into wealth. Thus will protect the environment, and produce the high quality lime with lowest cost. To use this new technology enterprise, economic benefits have increased significantly.

2.Techincal parameters:

(t/d)	Effective volume (m³)	Effective height (m)	Effective section dia. (m)	Feeding size (mm)	Heat consumption (kJ/kg)	CaO (%)	Availability of lime (mL)
100	98	20	2.5	30~60/40~80	<4600	>90	>300
120	141	20	3.0	30~60/40~80	<4600	>90	>300
150	202	21	3.5	30~60/40~80	<4500	>90	>300
200	301	24	4.0	30~60/40~80	<4500	>90	>300
300	397	25	4.5	30~60/40~80	<4400	>90	>300
400	491	25	5.0	30~60/40~80	<4200	>90	>300
500	735	26	6.0	30~60/40~80	<4200	>90	>300

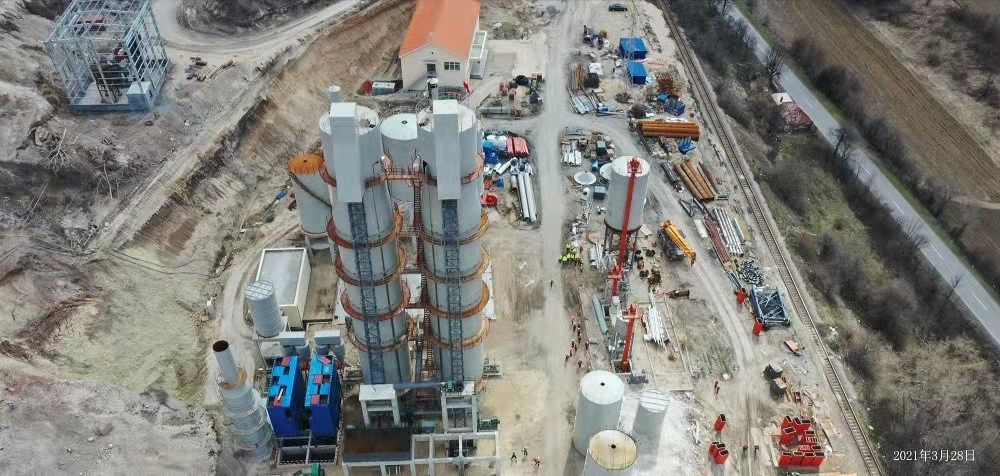

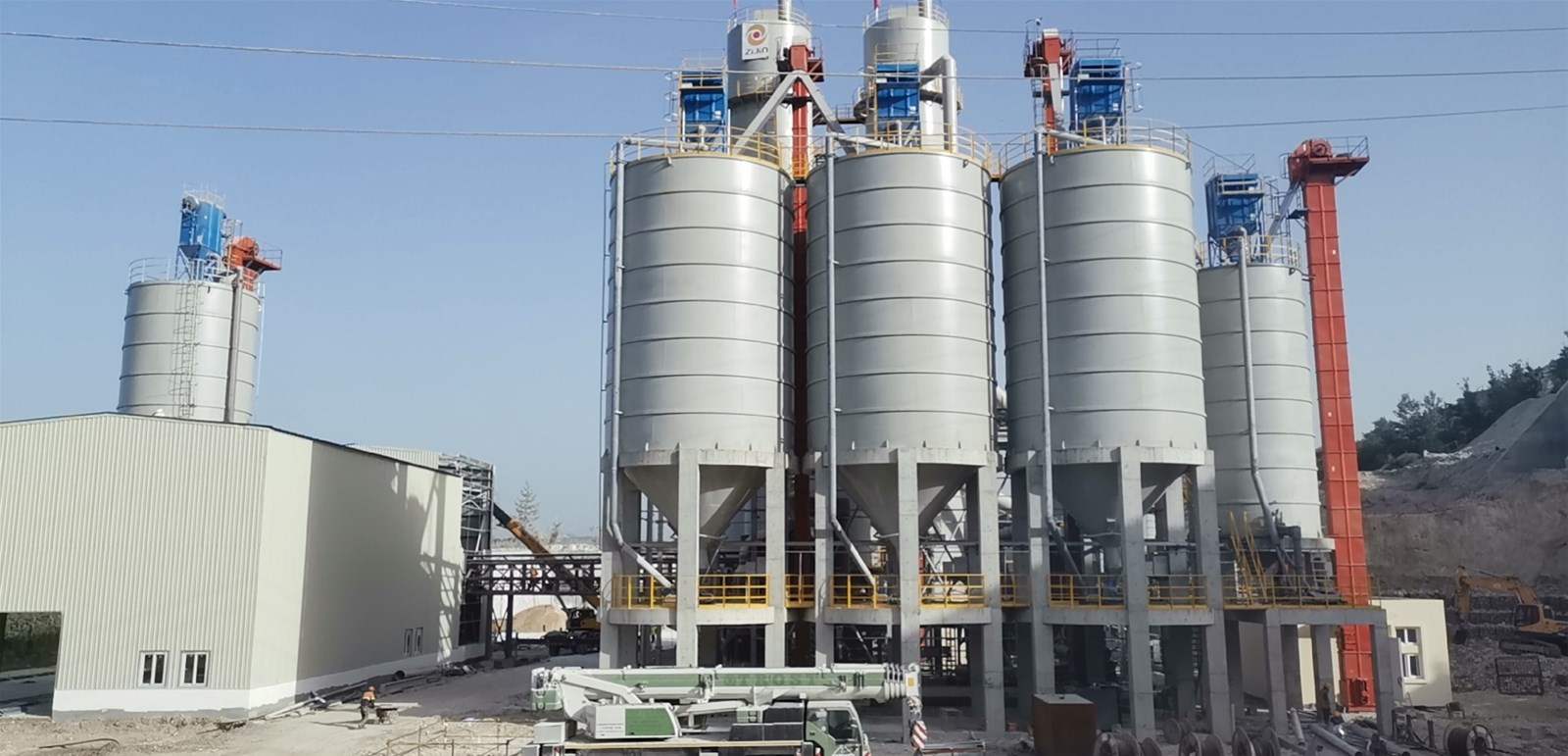

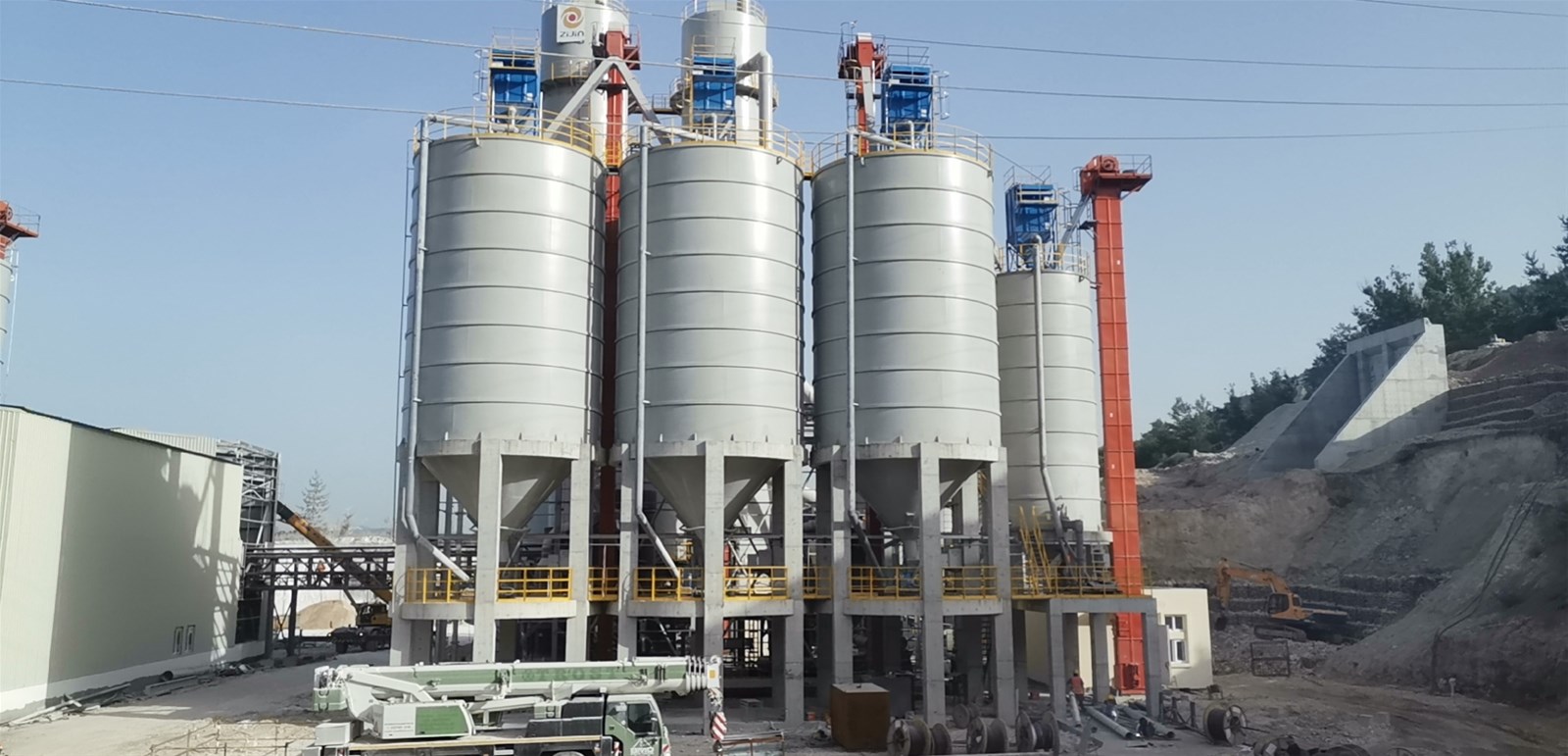

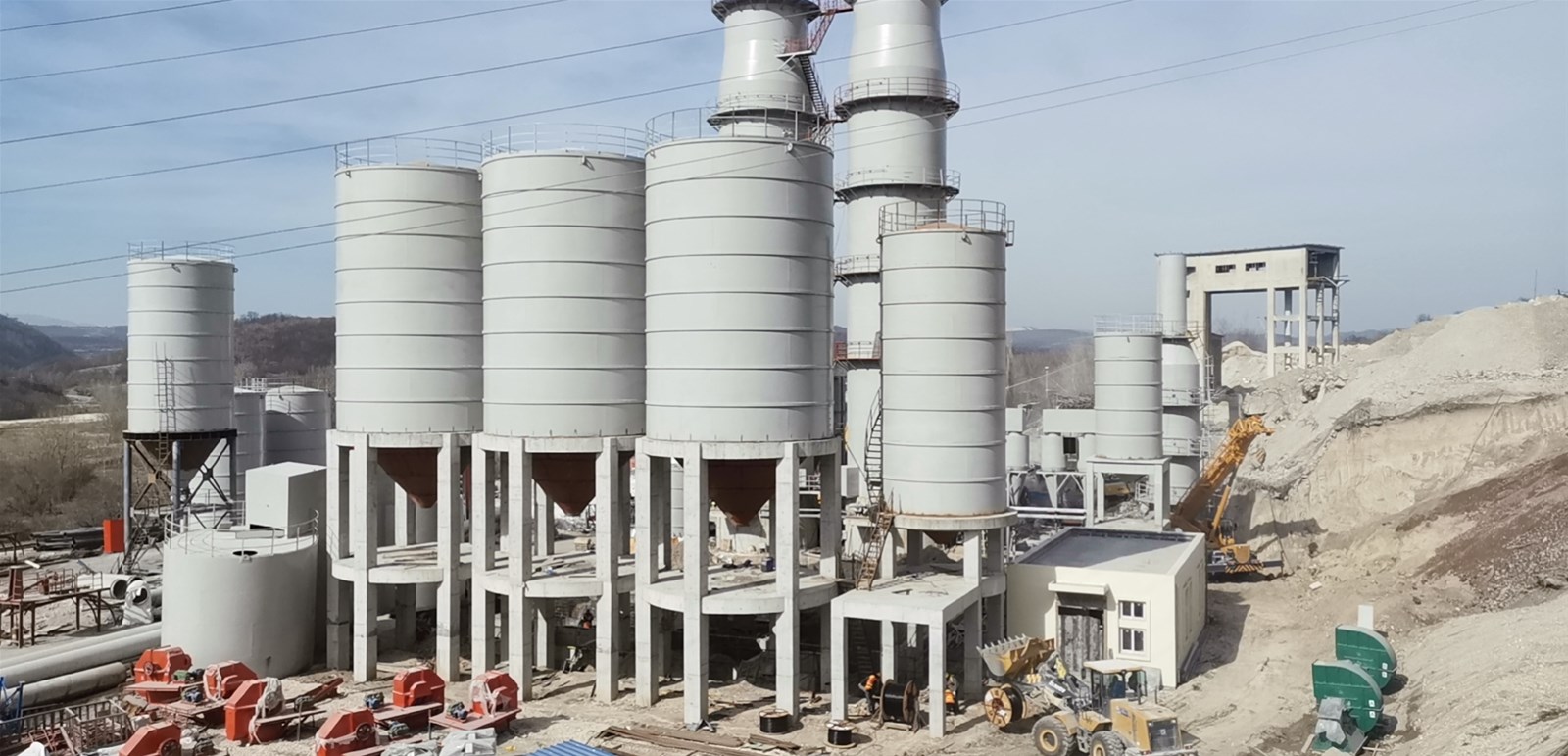

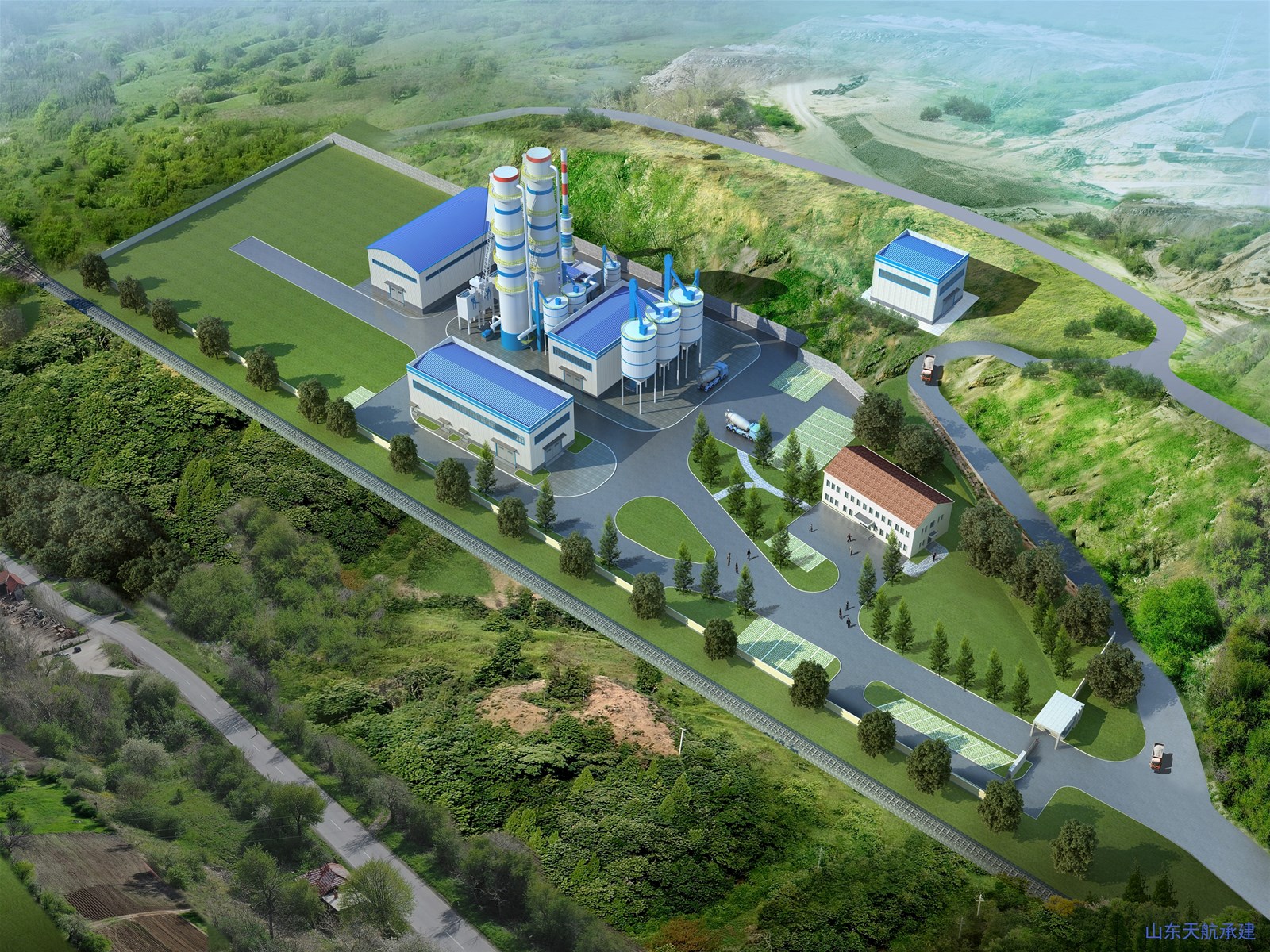

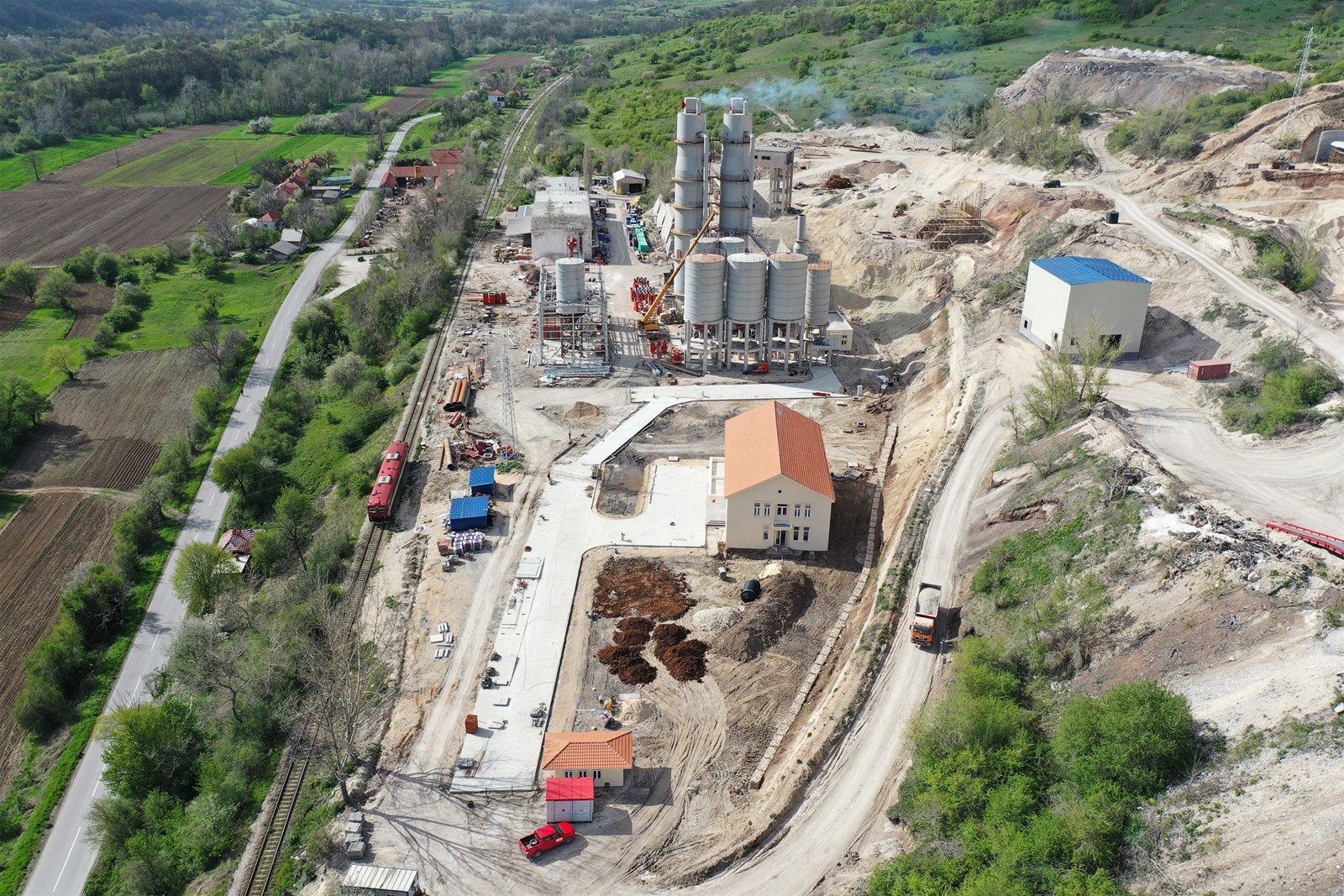

Nano Calcium Carbonate Aerated Concrete Refine Sugar Calcium Carbide Industry Lime Cement 100350tpd ShaftVertical Kiln

3.Performance features:
1.Save energy
2.the shell of kiln use four layer refractory in vertical masonry, good effect of thermal insulation.
3. Long service life of refractory
4. Less cover area
