Fangyuan Group Co., Ltd.
China Manufacturer with main products: Concrete Mixing Plant, Concrete Mixer, Concrete Pump, Concrete Truck Mixer, Tower Crane, Construction Hoist, Stabilized Soil Mixing Plant,... |
Fangyuan JS500 Forced Double Horizontal Shaft Concrere Mixer
| FOB Price: | 9200.00 - 11500.00 USD/Unit |
|---|---|
| Supply Ability: | 4 Piece(s) per Day |
| Shipping: | FOB Qingdao |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Outline Dimension: 4485mm*3030mm*5280mm
- Charging Capacity: 800l
- Brand Name: FYG
- Condition: New
- Discharge Way: manual/pneumatic
- Working Cycle Period: two minutes
- Water Supply Mode: water pump
- Speed of Mixing Drum: 35r/min
- Reclaiming capacity: 500l
- Mixing Power: 25kw
- Motor Power: 18.5kw
- Model Number: JS500
Specifications
1. brief Introduction:
the JS500 series of ready-mix concrete is a double horizontal shaft forced mixer which can mix dry concrete, plastic concrete, flowing concrete, light aggregate concrete and various kinds of mortar. It is widely used.
2. Technical parameters: item unit JS500-1.5 JS500-2.7 JS500-3.8 Charging L 800 800 800 Output L 500 500 500 Nominal output/h m3/h ≤25 ≤25 ≤25 Tatal power kW 26.75 26.75 26.75 Aggregate size(Pebble/Macadam) mm 80/60 80/60 80/60 Speed of mixing blade r/min 35 35 35 Mixing blade Qty. 27 27 27 Mixing moter power kW 18.5 18.5 18.5 Lifting motor power kW 7.5 7.5 7.5 Length of steel wire rope M 14m 17m 22m Water pump power kW 0.75 0.75 0.75 Hopper lifting speed m/min 18 18 18 Dimension (LWH) mm 448530305280 520031406480 640031608580
3. Performance features:

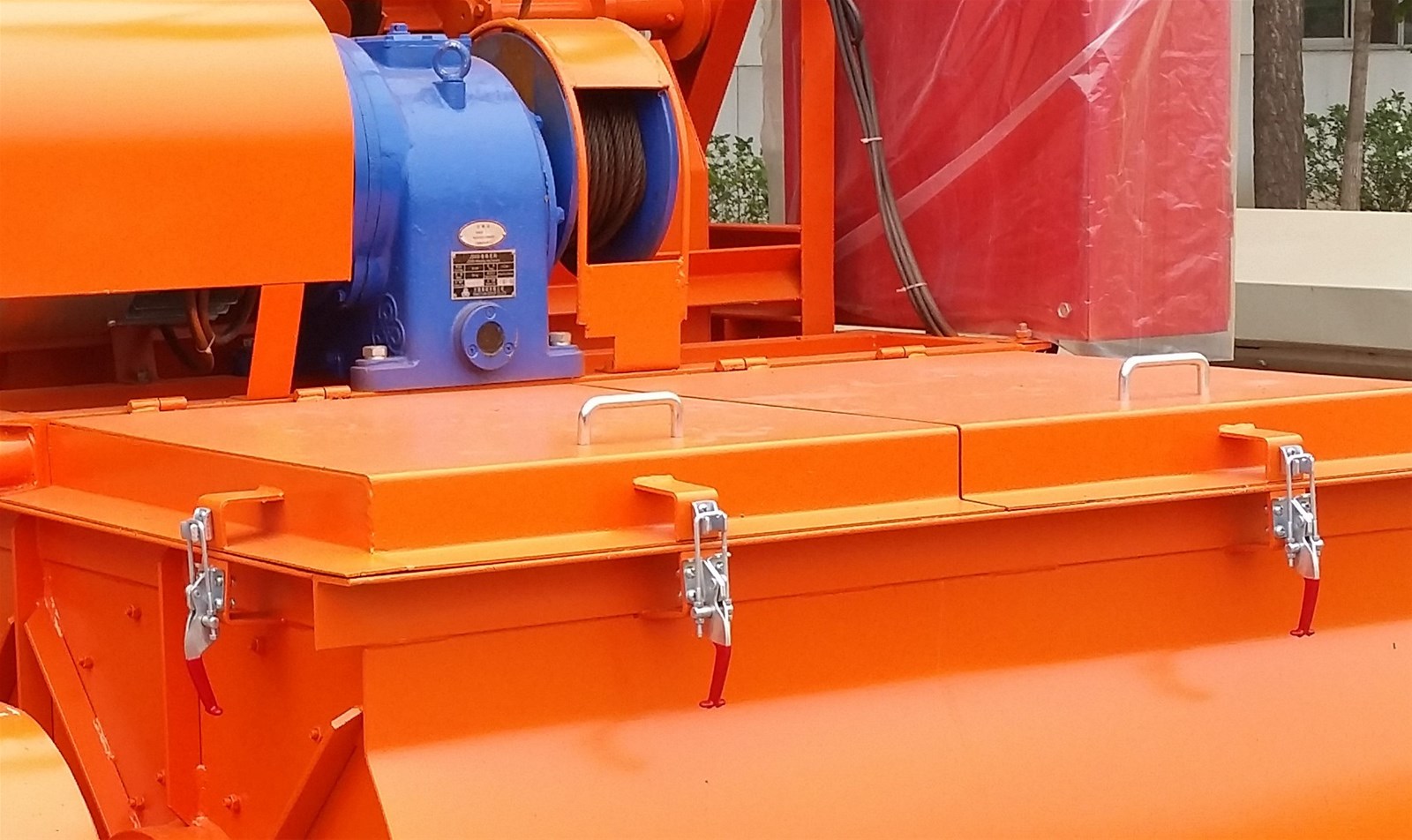

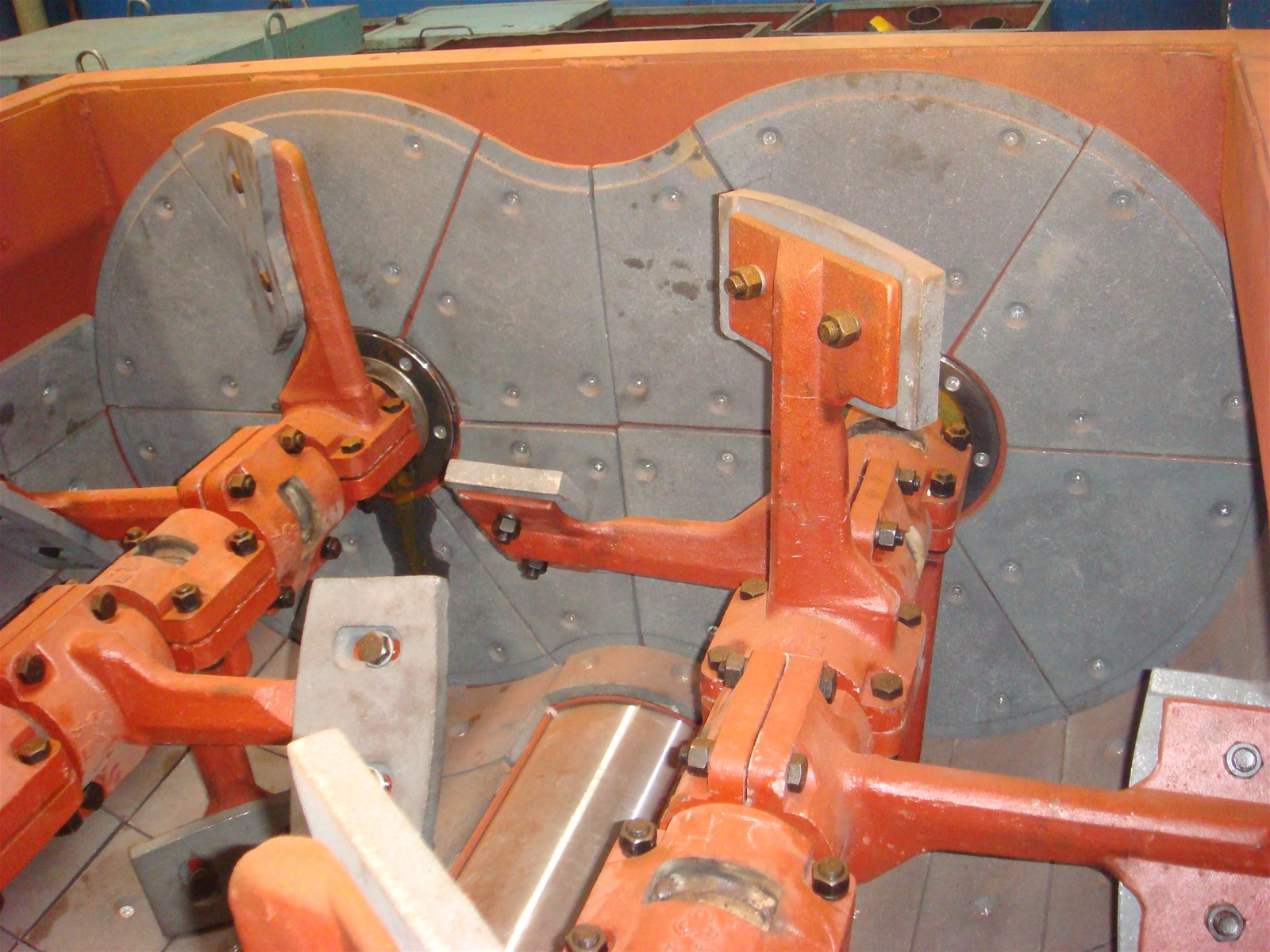

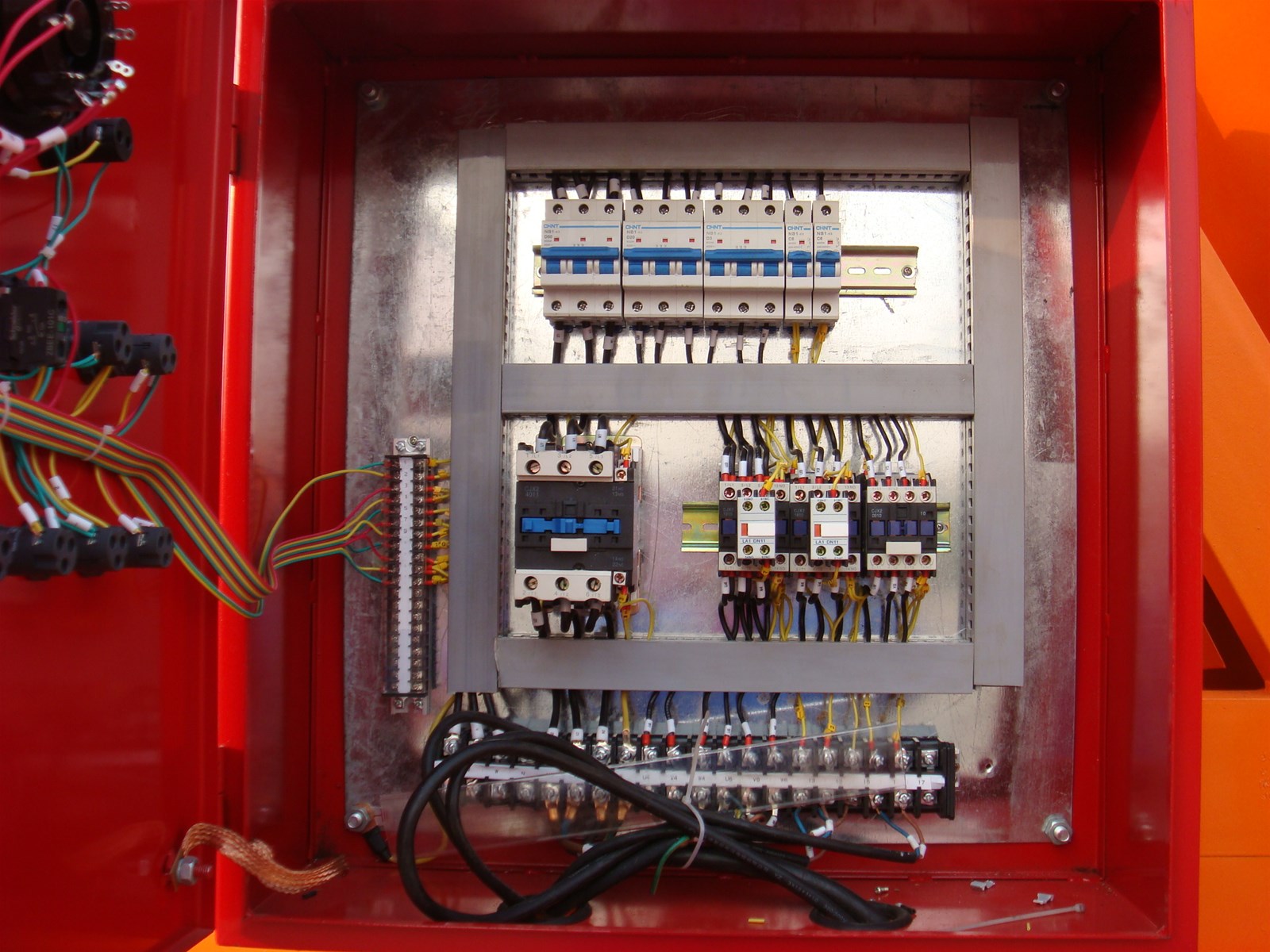

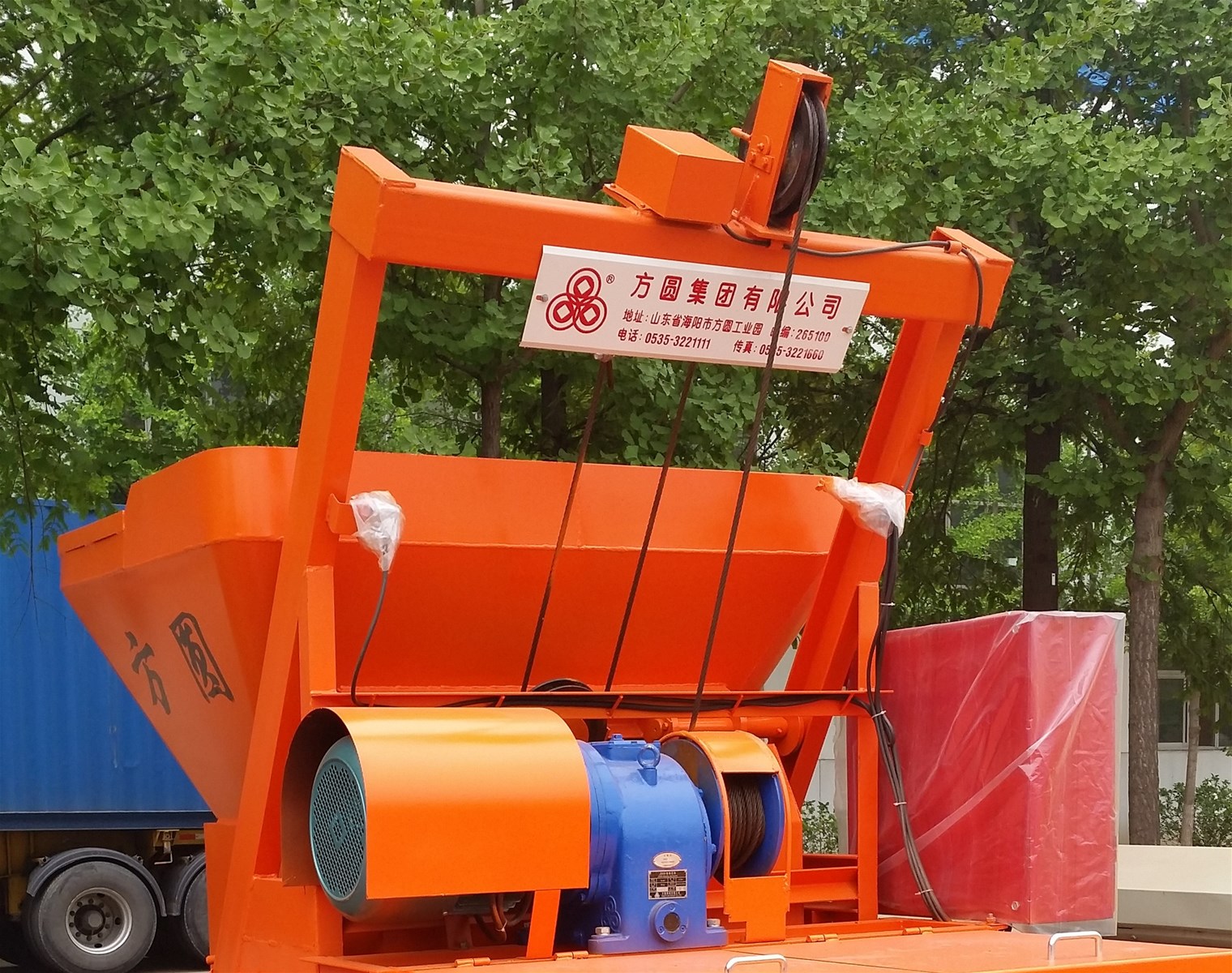

1.Mixing System, mixing arm and Blade Adopt Special Technology Casting, reasonable arrangement; mixing uniform quality is good, firm and durable; 2. Transmission System, reducer independently designed and developed, strong anti-overload ability, stable transmission; 3. Feeding System, the upper limit is double limited, which can limit and protect the hopper respectively. 4, the control system, with short-circuit protection, overload protection, open-phase protection function, safe and reliable! 5, the overall structure, mixing drum cover humanized design, easy to use the process of maintenance, cleaning and replacement of accessories! 6, the whole machine inspection, each equipment before leaving the factory are loaded to test, to ensure that the user to provide the best quality, most assured products!
