Wuhan Act Energy Technology Co., Ltd.
China Manufacturer with main products: Lithium Battery, Lithium Battery Pack, Lithium Thionyl Chloride Battery, Lithium Manganese Dioxide Battery |

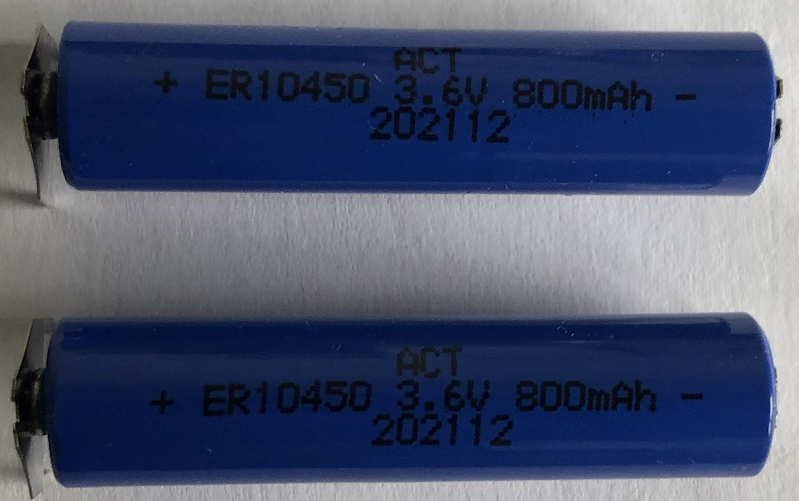

Lithium Battery, Lithium Thionyl Chloride Battery, ER Series, ER10450 AAA
| FOB Price: | 1.00 - 1.30 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece(s) per Month |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | 500 pcs per box |
Quick Details
- Brand Name: ACT
- Size: ER10450
- Type: lithium battery
- Material: lithium
- Color: blue
- Model Number: ER10450
Specifications
Primary Lithium Battery
ER10450 3.6V
Primary lithium-Thionyl Chloride
(Li-SOCl2)Bobbin type
|
Cell size references AAA
Electrocal characteristics
(Typical values relative to cells Stored for one year or less at +30℃max)
Nominal Capacity 1000mAh
(at 0.5mA +25℃,2.0Vcut off. the capacity restored varies according to current, temperature, Cut-off-voltage)
Nominal Voltage(20℃) 3.6V
Max. Continuous current(20℃) 30mA
Typical Max. Pulse current(20℃) 60mA
Pulse capability: Typically up to 60mA(60mA/0.1 Second pulses drained every 2min at20℃from cells with 10μA base current, yielding voltage readings above 2.5V. the Readings may vary according to pulse characteristics, temperature and cell's Previous history. Consult ACT if necessary)
Storage(recommended) +30Max
Operating temperature range -55~+85℃
(High and low temperature will lower the capacity and load voltage)
Physical characteristics
Dimension(Max) 10.5*45.0mm
Typical Weight 10g
Key features
>High and stable load voltage
>Superior drain capacity
>Low self-discharge rate
(Less than 1% after 1 year of storage at20℃)
>Stainless steel container
>Hermetic glass-to-metal sealing
>Laser welding
>Non flammable electrolyte
Main Applications
>Radio communication and other Military applications
>Alarms and security systems
>RFID
>Beacons and emergency location transmitters
>GPS equipments
>Metering systems
>LED lighting applications
>Others
Storage
>Cells should be stored in a clean & dry (less than 70%RH) area
>Temp. Should not exceed +30℃
Warning
>Do not use if cell casing is mangled
>Do not use different model of cell in series
>Do not try to recharge
>Do not throw into fire
