Home >Products Catalog > Trxf2 (Axial Type) Series Thermal-Link & Fusing Resistor (TRXF) Power Resistor Rxf Manufacturers with UL TUV CQC

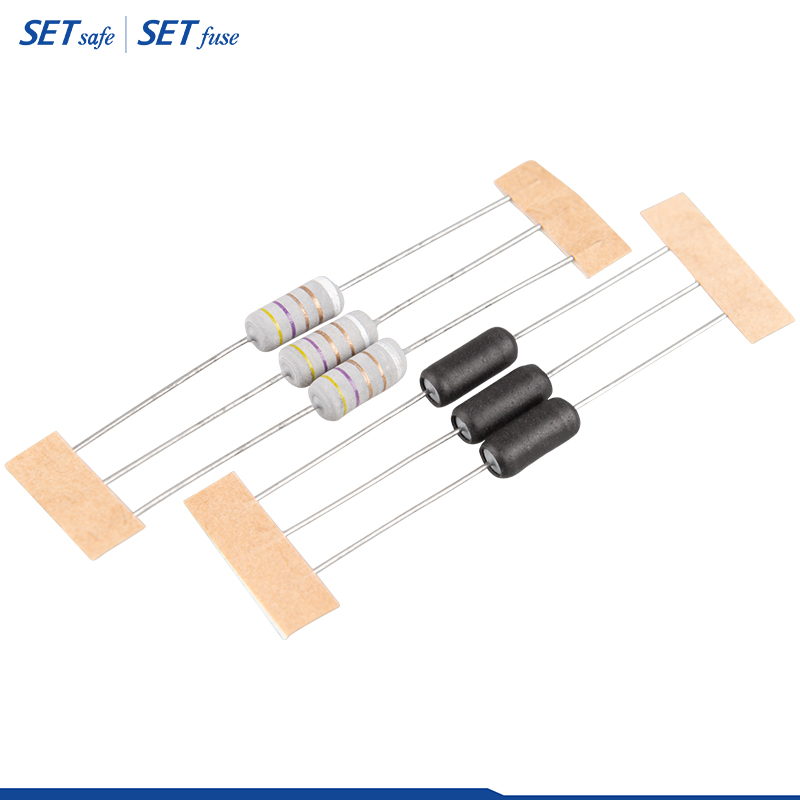

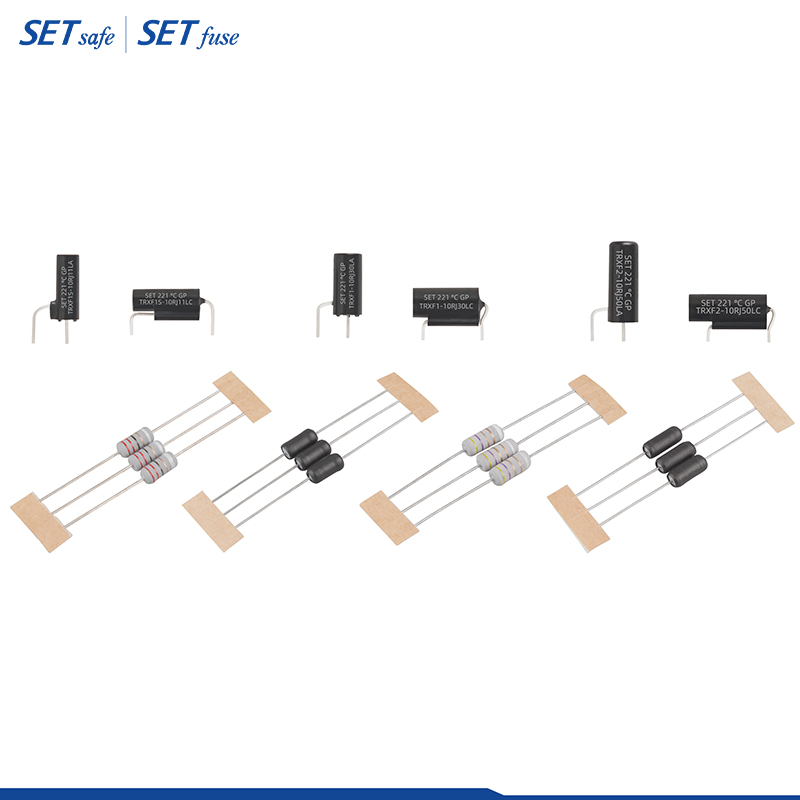

Trxf2 (Axial Type) Series Thermal-Link & Fusing Resistor (TRXF) Power Resistor Rxf Manufacturers with UL TUV CQC

FOB Price:	0.10 - 100.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

NTC Thermistor Refrigerator Sensor Thermal Res...

Price:0.50 USD/Piece

Min. Order:1,000 Pieces
High Precision Glass Encapsulated NTC Thermisto...

Price:

Min. Order:
14k 471 Varistor & 27V Metal Oxide Varistor

Price:0.20-1.50 USD/Bag

Min. Order:1,000 Bags
R30 Auto Decelerate Resistor (ADD BASE)

Price:

Min. Order:
Resistor

Price:100.00-10000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China

Quick Details

Resistance: Fixed resistor
Package Type: SMD resistor
Technology: Wirewound
Type: Fixed Resistor
Brand Name: SET

Specifications

Technology

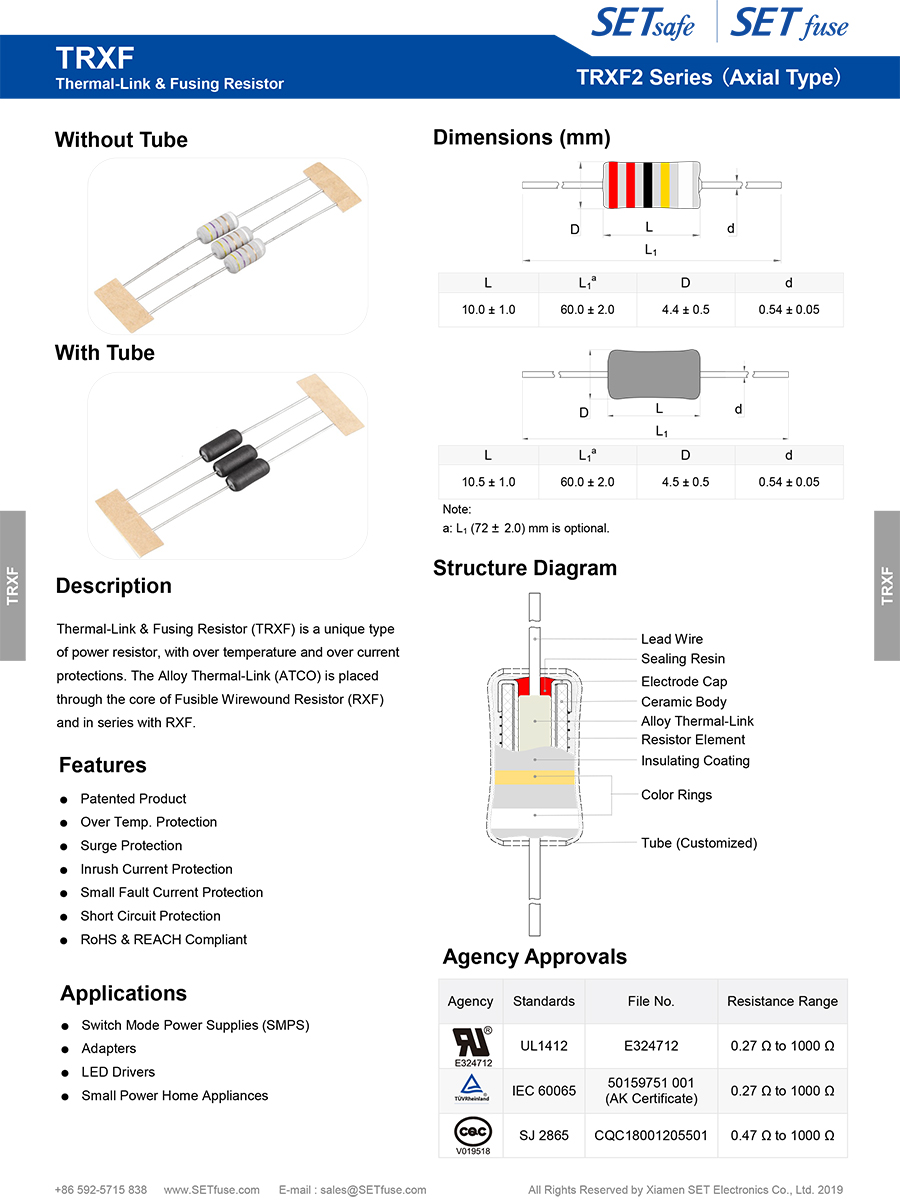

Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with over Temp. and over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.

Applications

Switch Mode Power Supply (SMPS)

Adapters

LED Drivers

Small Power Home Appliances

Features

Patented Product

over Temp. Protection

Surge Protection

Inrush Current Protection

Small Fault Current Protection

Short Circuit Protection

RoHS & REACH Compliant
