Viair 325C SilverFast Filling Truck Mount 150 PSI Air Compressor with Low AMP Draw & Thermal Overload Protector --12V
| FOB Price: | 235.00 - 251.00 USD/Piece |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Viair
- Lubrication Style: Oil-less
- Configuration: Portable
- Type: Piston
- Condition: New
- Weight: 7.5 Lbs
- Dimension(L*W*H): 8*4*6.75
- Voltage: 12-Volt / 24-Volt
- Model Number: P/N 32530 -- 150 PSI / 1.59 CFM -- (12V) -- SILVER
- Power Source: DC Power
Specifications
Product Description
325C-12V & 24V are compressors that work with low amp draw. Features include a standard 1/4 NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries

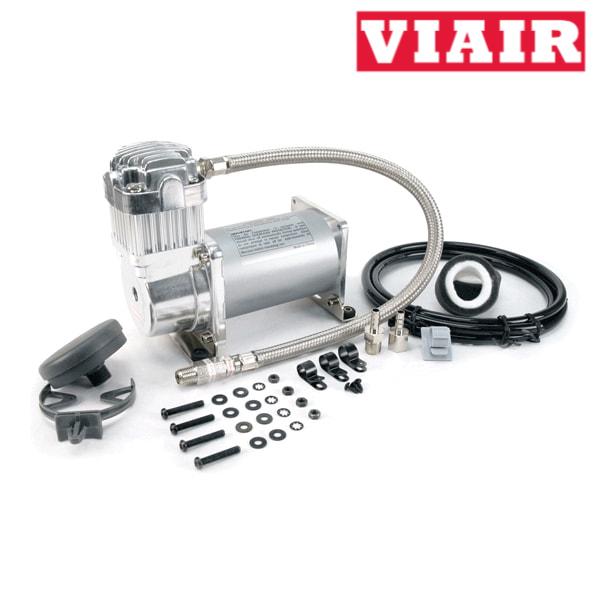

FEATURES
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
SPECIFICATIONS
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Max. 24V Amp Draw: 13 Amps
- 1/4 NPT Intake Port
- Ingress Protection Rating: IP67

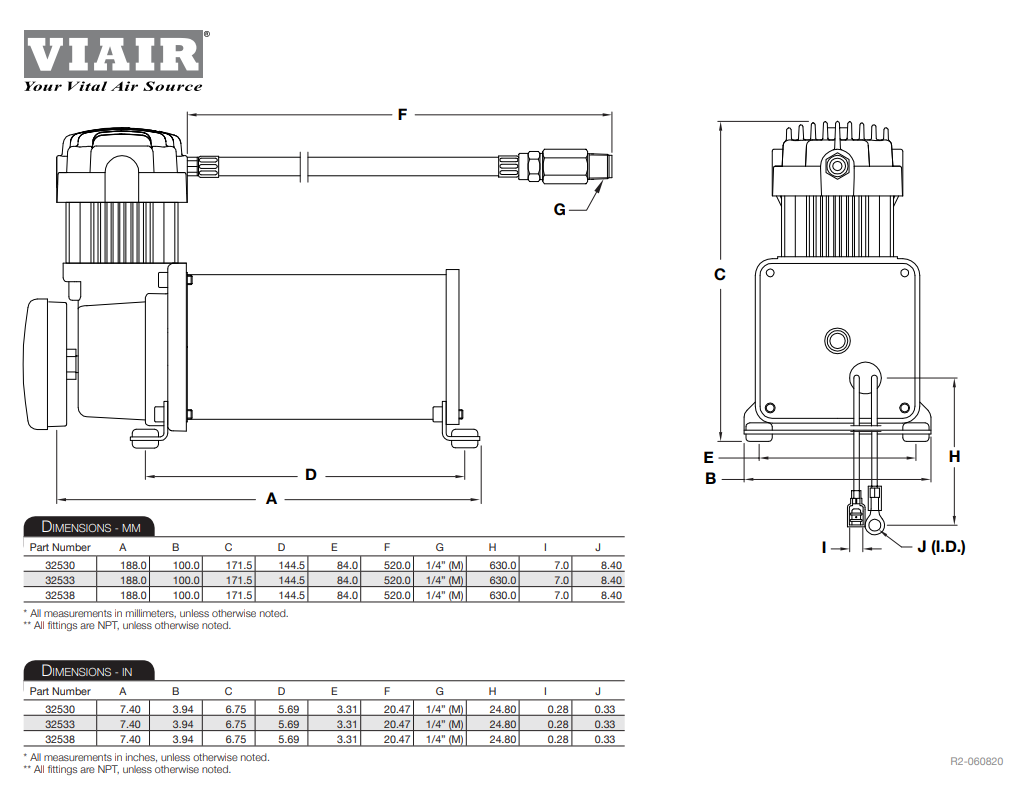

- Dimensions: 8L x 4W x 6.75H
- Net Weight: 7.5 lbs.
RECOMMENDED COMPONENTS
- 2.5 Gallon Tank (P/N 91028)
- 5.0 Gallon Tank (P/N 91050)
- 12V Relay (P/N 93940*)
- 24V Relay (P/N 93943**)
- Pressure Switches (P/N 90100, 90102)
- Pressure Switches with Relay (P/N 90110*, 90111, 90113)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)
* for 12V Only.
Please Note:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. Lbs
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. Lbs
PERFORMANCE DATA
| 12-VOLT | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.59 | 14 | 0 | 45.0 | 14 |
| 10 | 1.40 | 16 | 1.0 | 37.6 | 16 |
| 20 | 1.24 | 16 | 2.0 | 34.1 | 18 |
| 30 | 1.20 | 18 | 3.0 | 32.3 | 18 |
| 40 | 1.17 | 18 | 4.0 | 29.1 | 20 |
| 50 | 1.08 | 19 | 5.0 | 26.0 | 21 |
| 60 | 1.01 | 20 | 6.0 | 23.7 | 21 |
| 70 | 0.93 | 21 | 7.0 | 21.5 | 21 |
| 80 | 0.87 | 21 | 8.0 | 19.7 | 21 |
| 90 | 0.82 | 21 | 9.0 | 18.0 | 21 |
| 100 | 0.77 | 21 | 10.0 | 16.5 | 21 |
| 110 | 0.72 | 21 | |||
| 120 | 0.68 | 21 | |||
| 130 | 0.64 | 21 | |||
| 140 | 0.60 | 21 | |||
| 150 | 0.57 | 21 |
* Supply Voltage: 13.8 Volts
| 24-VOLT | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.80 | 7 | 0 | 51.0 | 7 |
| 10 | 1.68 | 8 | 1.0 | 44.1 | 8 |
| 20 | 1.41 | 9 | 2.0 | 38.7 | 10 |
| 30 | 1.36 | 10 | 3.0 | 36.5 | 10 |
| 40 | 1.31 | 10 | 4.0 | 34.3 | 11 |
| 50 | 1.25 | 10 | 5.0 | 32.1 | 11 |
| 60 | 1.20 | 11 | 6.0 | 30.0 | 11 |
| 70 | 1.15 | 11 | 7.0 | 28.0 | 12 |
| 80 | 1.09 | 11 | 8.0 | 26.4 | 13 |
| 90 | 1.04 | 11 | 9.0 | 24.6 | 12 |
| 100 | 0.99 | 12 | 10.0 | 22.5 | 12 |
| 110 | 0.95 | 13 | |||
| 120 | 0.92 | 13 | |||
| 130 | 0.87 | 12 | |||
| 140 | 0.81 | 12 | |||
| 150 | 0.78 | 12 |
* Supply Voltage: 28.0 Volts
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
FILL RATES
| 12-VOLT | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 35 sec. (± 10 sec.) |
| 85 to 105 PSI | 40 sec. (± 05 sec.) |
| 0 to 145 PSI | 4 min. 15 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 25 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 5 min. 15 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 25 sec. (± 05 sec.) |
| 0 to 145 PSI | 8 min. 45 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 55 sec. (± 10 sec. |
| 24-VOLT | |
|---|---|
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 25 sec. (± 10 sec.) |
| 85 to 105 PSI | 35 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 05 sec. (± 05 sec.) |
| 0 to 145 PSI | 7 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 25 sec. (± 10 sec.) |
