Guangzhou Rolstoon Technology Co., Ltd.
China Manufacturer with main products: Air Spring, Compressor, Electronic Compound Shock-Absorber with Air Bag Pinch Valve and Air Suspension Compressor., Thermal Overload... |
Home
>Products Catalog > Viair Silver 460C Air Compressor 12V 150 PSI with Horizontal Cooling Fins & Trapezoidal Head Design

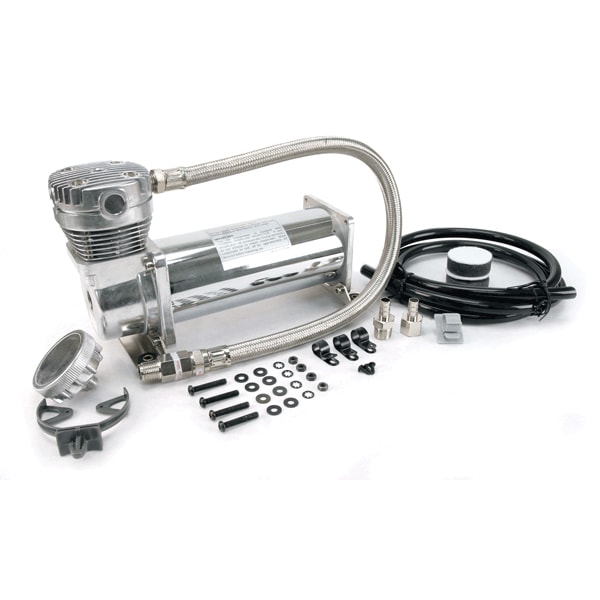

Viair Silver 460C Air Compressor 12V 150 PSI with Horizontal Cooling Fins & Trapezoidal Head Design
| FOB Price: | 228.00 - 243.00 USD/Piece |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Viair
- Lubrication Style: Oil-less
- Configuration: Portable
- Type: Piston
- Condition: New
- Weight: 11.10 lbs.
- Voltage: 12-Volt
- Model Number: P/N 46043 -- 150 PSI / 1.80 CFM
- Power Source: DC Power
Specifications
Product Description
460C features include horizontal cooling fins and a trapezoidal head design, a standard 3/8" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.
VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.
Why is the Whole World Choosing VIAIR?
- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries
FEATURES
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

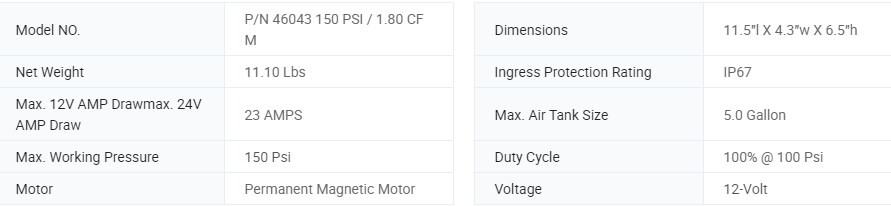

SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Ingress Protection Rating: IP67

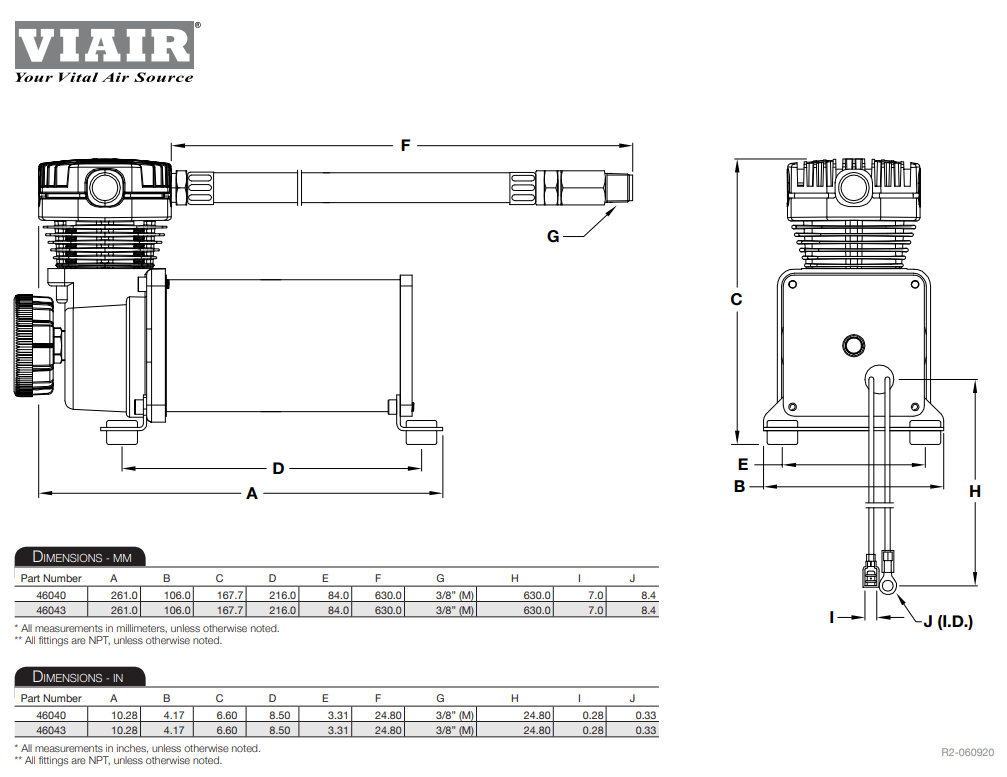

- Dimensions: 11.5L x 4.3W x 6.5H
- Net Weight: 11.10 lbs.
RECOMMENDED COMPONENTS
- 0.5 Gallon Tank (P/N 91005)
- 1.0 Gallon Tank (P/N 91010)
- 2.0 Gallon Tank (P/N 91022)
- 2.5 Gallon Tank (P/N 91025)
- 5.0 Gallon Tank (P/N 91050)

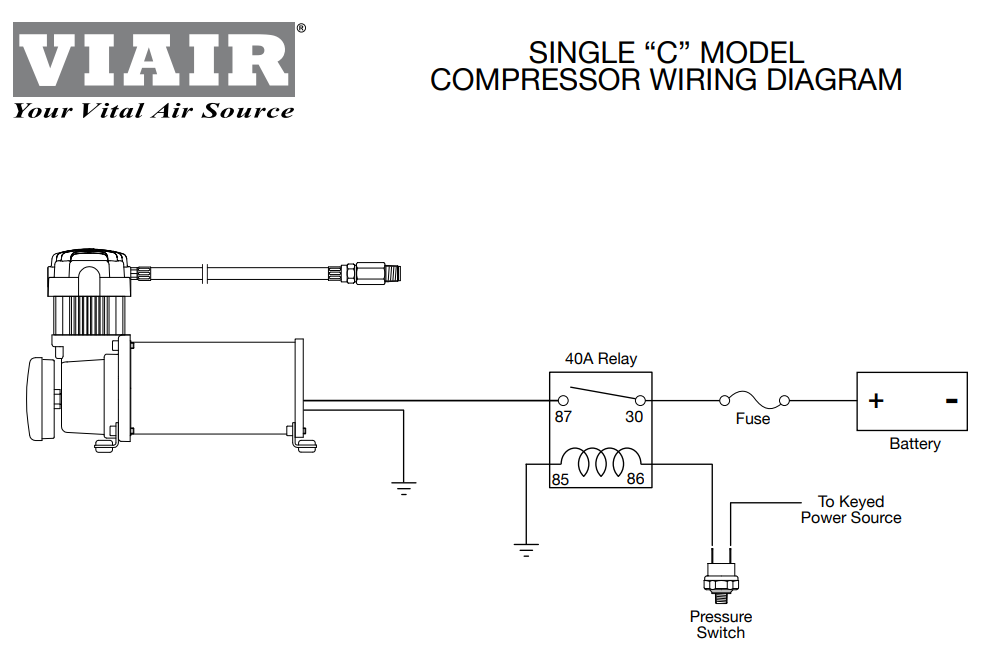

- 12V Relay (P/N 93940, 93980)
- Pressure Switches (P/N 90100, 90101, 90102)
- Pressure Switches with Relay (P/N 90110, 90111)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
* for 12V Only.
Please Note:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 13 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 19 |
| 40 | 1.39 | 19 | 4.0 | 34.0 | 21 |
| 50 | 1.27 | 20 | 5.0 | 30.5 | 21 |
| 60 | 1.18 | 21 | 6.0 | 28.1 | 22 |
| 70 | 1.09 | 21 | 7.0 | 26.4 | 23 |
| 80 | 1.04 | 22 | 8.0 | 25.0 | 24 |
| 90 | 0.97 | 22 | 9.0 | 23.0 | 23 |
| 100 | 0.94 | 23 | 10.0 | 21.0 | 22 |
| 110 | 0.90 | 24 | |||
| 120 | 0.86 | 24 | |||
| 130 | 0.81 | 23 | |||
| 140 | 0.76 | 22 | |||
| 150 | 0.72 | 22 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
| 85 to 105 PSI | 28 sec. (± 05 sec.) |
| 0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
| 110 to 145 PSI | 59 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
| 85 to 105 PSI | 58 sec. (± 05 sec.) |
| 0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
WARNING:
this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
