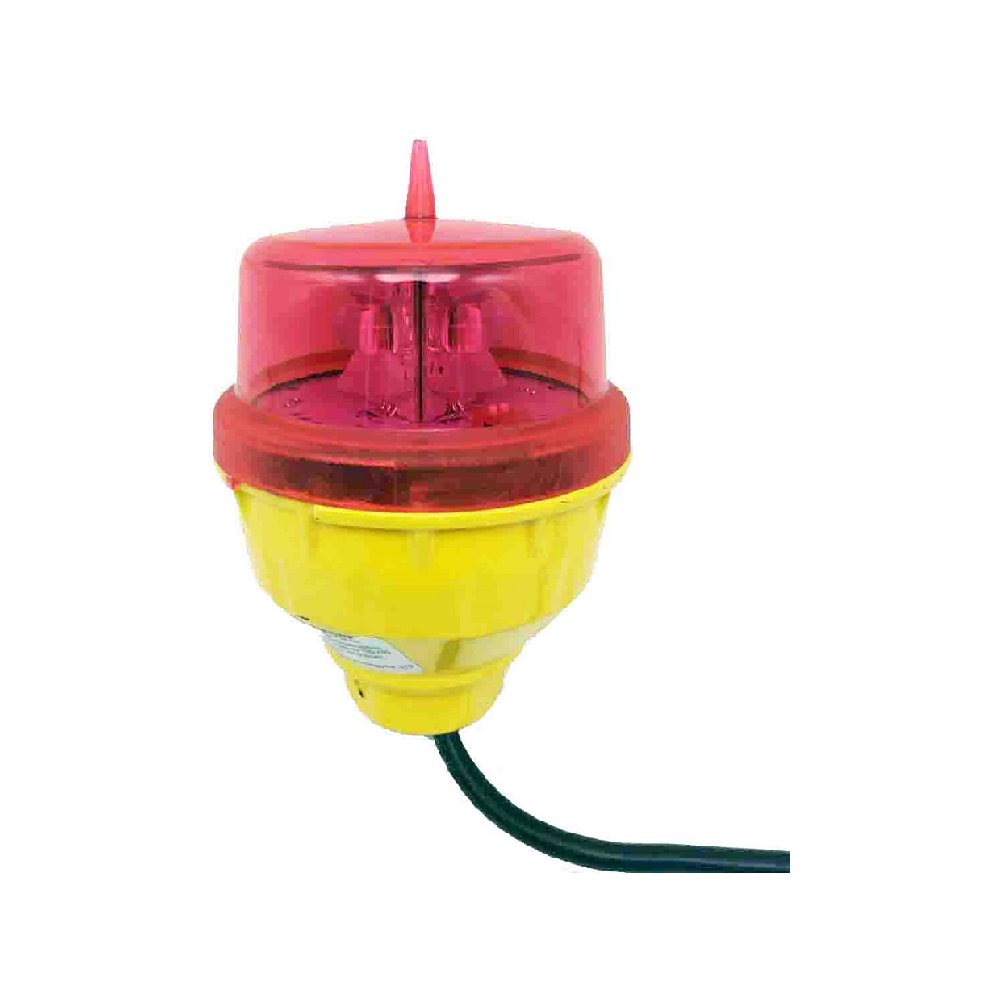

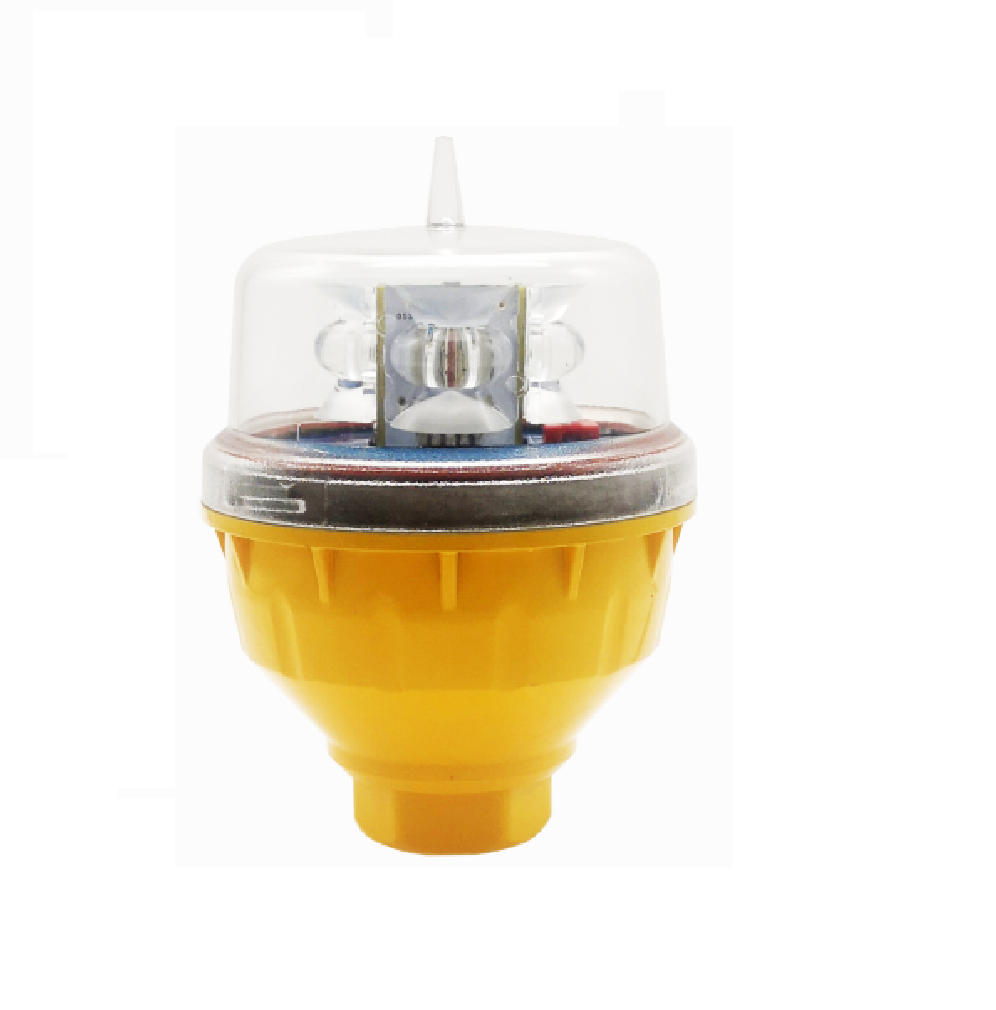

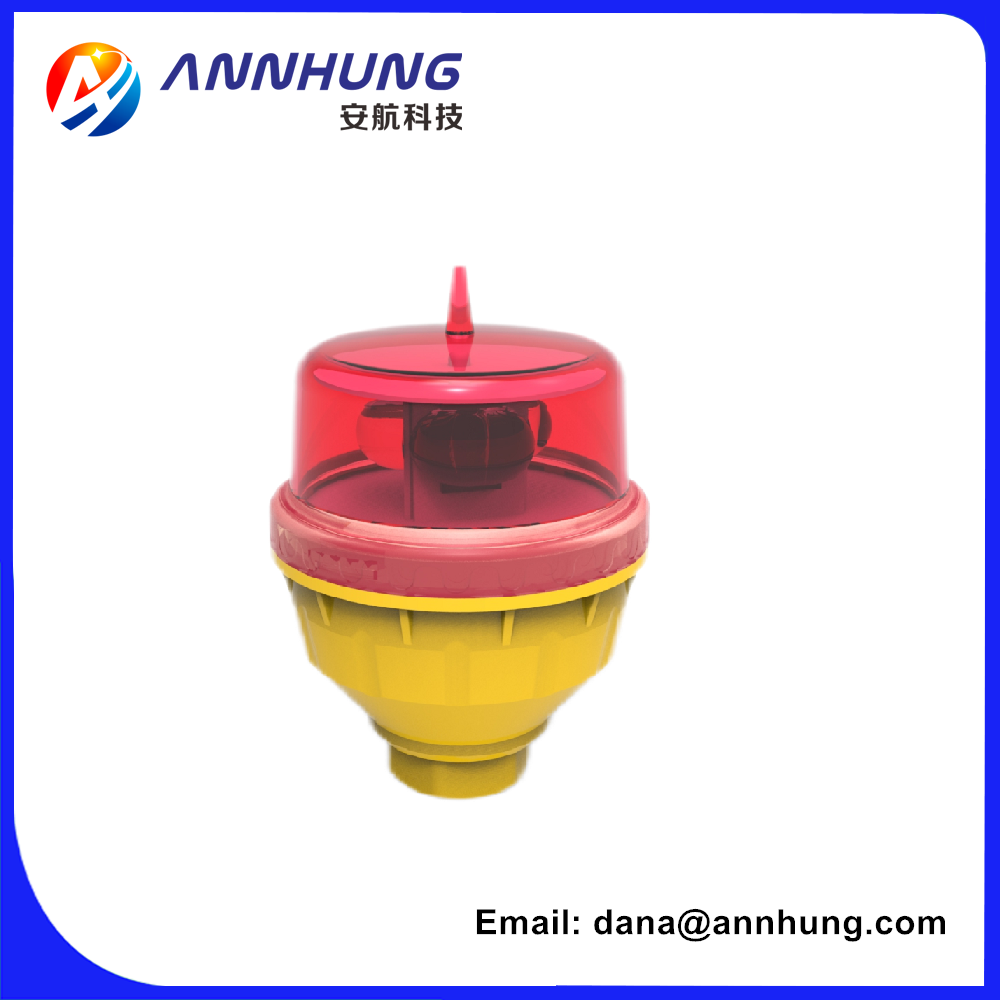

Low - Intensity Single Aviation Obstruction Light

FOB Price:	59.00 - 99.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Aviation Obstruction Lights
Brand Name: ANNHUNG
Light Source: LED
Emitting Color: Red
IP Rating: IP66
Type: Low - Intensity
Model Number: AH-LI-B2
Base Type: PAR56
Lamp Body Material: Aluminum
Beam Angle(°): 360
Lamp Power(W): 20
Input Voltage(V): 110-240V

Specifications

Low - Intensity Single Aviation Obstruction Light with Steady Burning

this Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light

FAA L-810

Features

Electrical

3 high power CREE LED, make sure LED keep bright while use

Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor

Physical

Bird deterrent spike on top

UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments

3/4inch thread hole make pole installation easy

No screw fix type - just twist, the cover will be fixed tightly

System design

Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2

Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

Surge and lightning protection

Optional

Alarm contact(NO COM NC)for remote monitoring

Infrared LED for pilot using NVG

GPS sync flashing

Application

AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

Description	Parameter
Light Source	LED
Flash Characteristics	Steady-burning/20/30/60 adjustable
Operation Mode	Dusk-to-dawn Automatically as standard.
LED Life Experience(hours)	>100,000
Operating Voltage	DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material	Polycarbonate
Base Material	Die-casting aluminum
Weight(kg)	0.3
Ambient Temperature(℃)	-40~55
Storage temperature(℃)	-55~70
Humidity	10%-95%RH(No condensation)
Wind Speed	240Km/h
Waterproof	IP66
FAA	L-810
