VIAIR 450C-IG Industrial Grade 12V Truck Mount 200 PSI Air Compressor Pressure Switch Relay Better Heat Dissipation

Specifications

Product Description
Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.

VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.

Why is the Whole World Choosing VIAIR?

- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries

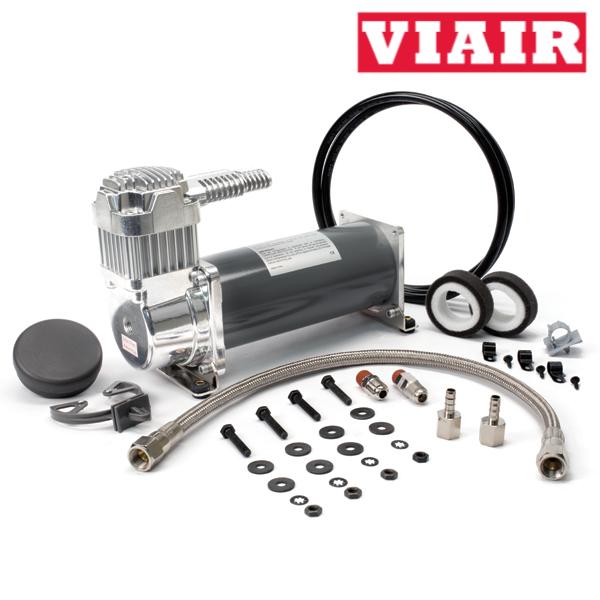

FEATURES

Thermal Overload Protector Thermal Overload Protector
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4 NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
(2) Replacement Air Filter Elements
Installation Instructions

SPECIFICATIONS

12-Volt / 24-Volt 12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 5.0 Gallon
Max. 12V Amp Draw: 23 Amps
Max. 24V Amp Draw: 13 Amps
Ingress Protection Rating: IP67
Max. Ambient Temp: +158°F
Min. Ambient Temp: -40°F

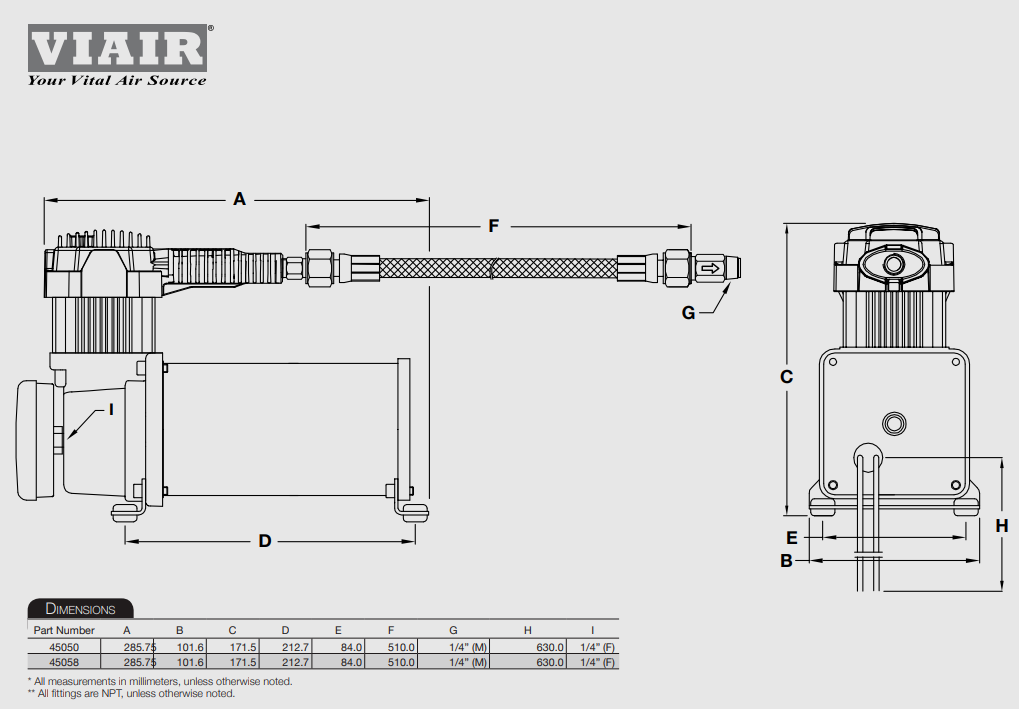

Dimensions: 11.25L x 4W x 6.75H
Net Weight: 10.40 lbs.

RECOMMENDED COMPONENTS

0.5 Gallon Tank (P/N 91005) 0.5 Gallon Tank (P/N 91005)
1.0 Gallon Tank (P/N 91010, 91014)
2.0 Gallon Tank (P/N 91022)
2.5 Gallon Tank (P/N 91025)
12V Relay (P/N 93940, 93977, 93980)
24V Relay (P/N 93943, 93979)
Pressure Switches (P/N 90100, 90101, 90102)
Pressure Switches with Relay (P/N 90110*, 90111*, 90113*)
Sealed Pressure Switches (P/N 90217, 90223, 90227)

* for 12V Only.

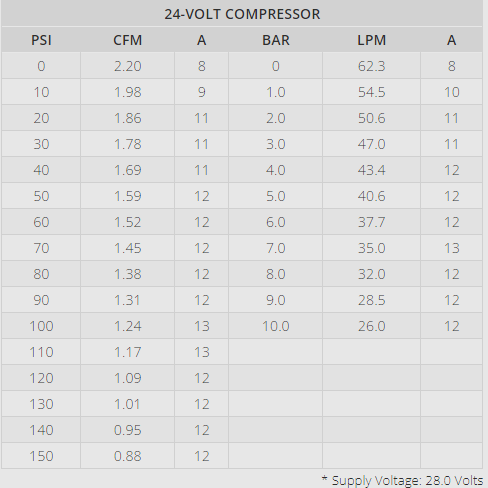

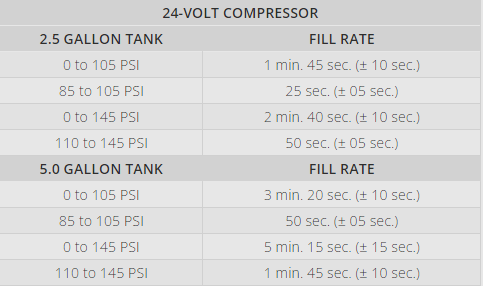

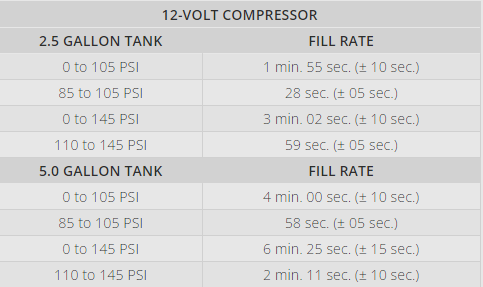

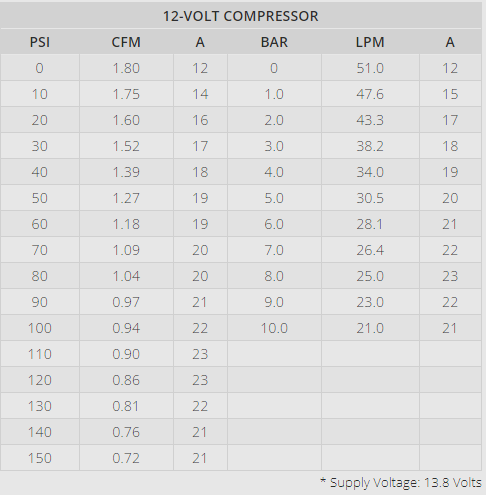

PERFORMANCE DATA

WARNING:
this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
