Viair 84P Portable Powerful Compressor Fast Filling 12V 60PSI for Passenger Car Tires & Special Equipment

Specifications

Product Description
the 84P is exactly the same powerful portable tire inflator as our 85P but with a press-on chuck instead of a twist-on chuck. It has the same power and performance capable of inflating up to 31-inch tires by simply plugging into your cigarette lighter power port (14.5 amps max.). Connect the press-on tire chuck to a tire valve stem before turning the unit on. Tire pressure can be monitored using the gauge incorporated into the top of the unit.

VIAIR is widely recognized by our customers and peers as the leading compressor manufacturer in the industry,and offer an extensive range of products that includes compressors.

VIAIR is located in the United States and provides air compressors and compressor accessories. Products can be used in all corners of the world, from agriculture to oil, to medical care, and even in the harsh environmental conditions of the Arctic. Due to the reliable performance of the products, they are also widely used by the world's top 500 enterprises. Any mobile pneumatic system is their loyal partner.

Why is the Whole World Choosing VIAIR?

- Industry Leader for Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
-FRC(First Robotic Competition)
-Widely Used by the World's Top 500 Enterprises
-Quality system certification in more than 40 countries

FEATURES

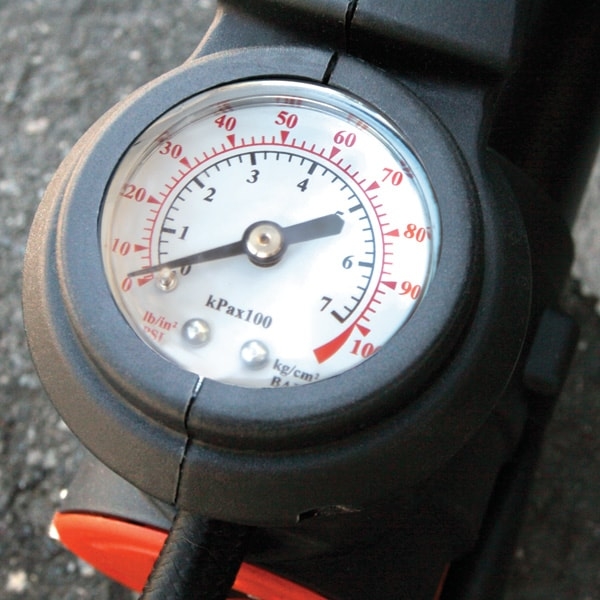

100 PSI Pressure Gauge

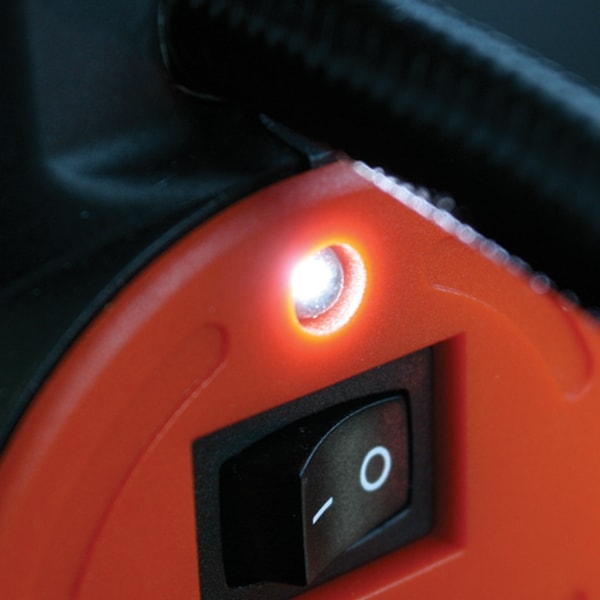

LED Work Light / Power Indicator
Press-on Chuck

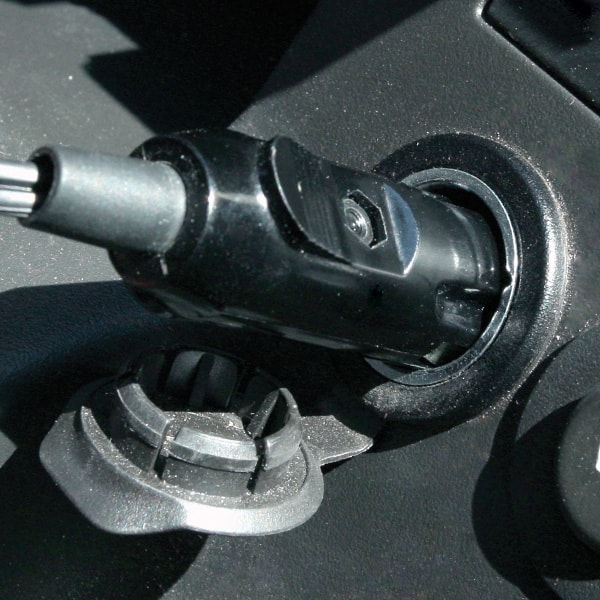

Accessory Power Plug

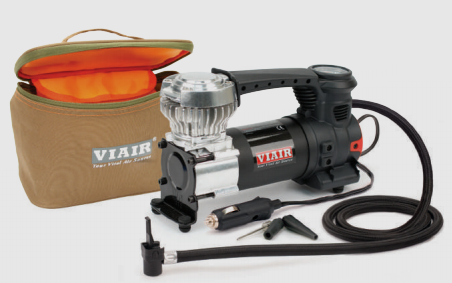

Deluxe Carry Bag
3 PC. Inflation Tips Kit*
*(Mounted above Rear Compressor Feet)

SPECIFICATIONS

12-Volt / 24-Volt
Permanent Magnetic Motor
Duty Cycle: 100% @ 100 PSI
Max. Working Pressure: 150 PSI
Max. Air Tank Size: 2.5 Gallon
Max. 12V Amp Draw: 11 Amps
Max. 24V Amp Draw: 6 Amps
Ingress Protection Rating: IP67
Max. Ambient Temp: +158°F
Min. Ambient Temp: -40°F
Dimensions: 7.4L x 3.9W x 6.75H
Net Weight: 6.75 lbs.

SPECIFICATIONS
12-Volt
Permanent Magnetic Motor
Duty Cycle: 20 min. @ 30 PSI
Max. Working Pressure: 60 PSI
Max. Amp Draw: 15 Amps
Ingress Protection Rating: IP53
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 9.1L x 3.1W x 5.6H
Net Weight: 4.30 lbs.
Power Cord Length: 10 ft.
Air Hose Length: 3 ft.

RECOMMENDED COMPONENTS
6ft. Portable Compressor Air Extension Hose ()

* for 12V Only

Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.

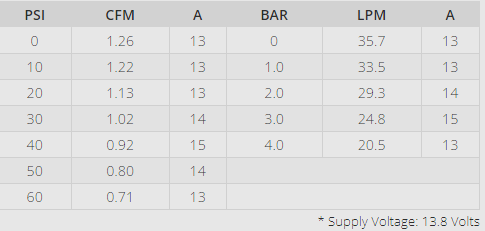

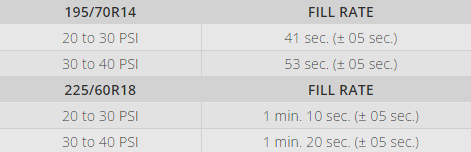

PERFORMANCE DATA
