Zhejiang Newluolan Machinery Co., Ltd.
China Manufacturer with main products: Box Making Machine, Folder Gluer, Folding Gluing Machine |
Folder Gluer Box Making Machine Food Box Machine
| FOB Price: | 60000.00 - 200000.00 USD/Set |
|---|---|
| Shipping: | FOB Ningbo |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Type: Gluing Machine
- Packaging Material: Wood
- Packaging Type: Case
- Application: Beverage,Commodity,Food,Medical
- Condition: New
- Type: GK-PC
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE,ISO9001,ISO14000
- Brand Name: Rolam
- Driven Type: Electric
- Automatic Grade: Automatic
Specifications
Basic Info.
Model NO.
GK-PCS
Model
Gk-1450PCS
Paper Material
Corrugated/Cardbaord
Max Liner Speed
280m/Min
Feeding Way
Automtic Feeding
Main Motor Power
18.4kw
Weight
11t
Belt
Air Suction Nitta
Iron Plate
20m Thickness
Bearing
NSK Japan
Glue
Water Base Cold Glue
Transport Package
Wooden Pallets
Specification
17*2.25*1.8m
Trademark
RAGAOKE
Origin
China
HS Code
8441309000
Production Capacity
40 Sets/Month
Product Description
>>> Product Introduction

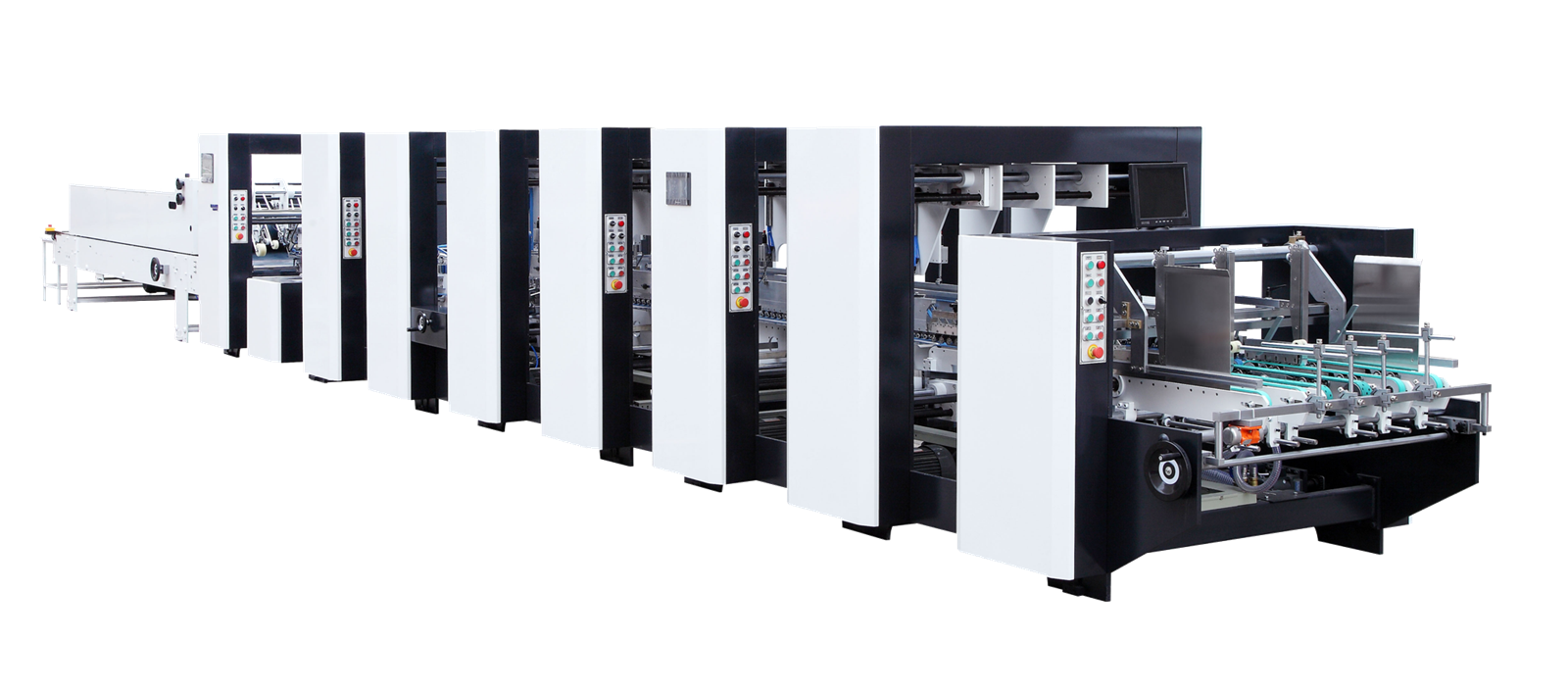

Fully Automatic Folder Gluer with Bottom Lock for Corrugated Box 1200PCS
PCS Series folding gluing machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC, imported electronic components, three plates track mode device. Aluminum plates are all Chute structure, which is easy to add spare parts. the machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
First Quality, Best Service. We provide not only the products, but also the SOLUTION.
>>> Components
Feeding section:
1.Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. to ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board.
2.Push structure make supporting cardboard adjustment more convenient and stable.
Aligner section:
1.Aligner section adopts independent motor drive, equipped with automatic correction device to correct the obliquity and ensure the correct feeding.
Bottom folding:
1.Independent motor drive, equipped with upper gluing tank.
Folding and Pressing:
1.Equipped with 3 plate type rail device. the upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products.
Trombone:
1.Independent motor drive can be used to control the adjustable size of the belt.
2.Paper collection adopts cylinder pressure system, easier to adjust pressure, make the box more effectively gluing.
Transmission:
1.Pressing and Transmission unit has regulator, patting device, can effectively avoid the "scissors mouth" phenomenon of corrugated products.
2.Pressing and Transmission unit adopts waiting function, when feeding section is in the pause status, it will automatically enable waiting function. If has error in paper collection unit, it will automatically stop the machine work.
>>> Shipping &Packing
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries,
Also some are according to the customer's requirement.
Fully Automatic Folder Gluer with Bottom Lock for Corrugated Box 1200PCS
PCS Series folding gluing machine with 4/6 corner function, each set is controlled by independent motor, adopts electrical regulating board, PLC, imported electronic components, three plates track mode device. Aluminum plates are all Chute structure, which is easy to add spare parts. the machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes, which can meet to all kinds of requirements of automatic packaging area.
First Quality, Best Service. We provide not only the products, but also the SOLUTION.
| Name | GK- PCS four six corner gluing folding machine | |||
| model | GK-1200PCS | GK-1450PCS | GK-1600PCS | GK-1800PCS |
| Paper Material | Cardboaed210-800g, A/B/E Corrugated | |||
| Max. Liner speed | Max.260 meter/minute | |||
| Feeding way | Automatically and continuously feeding | |||
| Way of folding | Fold 1 and fold 3 are 130°and 180° | |||
| Power Supply | 3P380V50HZ | |||
| Main motor power | 18.4kw | 18.4kw | 26kw | 26kw |
| Total power | 30kw | 30kw | 35kw | 35kw |
| Weight | 9.5T | 11T | 13T | 15T |
| over dimension | 15.7x1.65x1.65m | 15.7x2.1x1.65m | 17*2.25*1.8M | 17*2.45*1.8M |
>>> Components
Feeding section:
1.Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. to ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board.
2.Push structure make supporting cardboard adjustment more convenient and stable.
Aligner section:
1.Aligner section adopts independent motor drive, equipped with automatic correction device to correct the obliquity and ensure the correct feeding.
Bottom folding:
1.Independent motor drive, equipped with upper gluing tank.
Folding and Pressing:
1.Equipped with 3 plate type rail device. the upper pressure belt adopts the main drive and cylinder pressure more suitable for different thickness corrugated products.
Trombone:
1.Independent motor drive can be used to control the adjustable size of the belt.
2.Paper collection adopts cylinder pressure system, easier to adjust pressure, make the box more effectively gluing.
Transmission:
1.Pressing and Transmission unit has regulator, patting device, can effectively avoid the "scissors mouth" phenomenon of corrugated products.
2.Pressing and Transmission unit adopts waiting function, when feeding section is in the pause status, it will automatically enable waiting function. If has error in paper collection unit, it will automatically stop the machine work.
>>> Shipping &Packing
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries,
Also some are according to the customer's requirement.
